243cc Engine

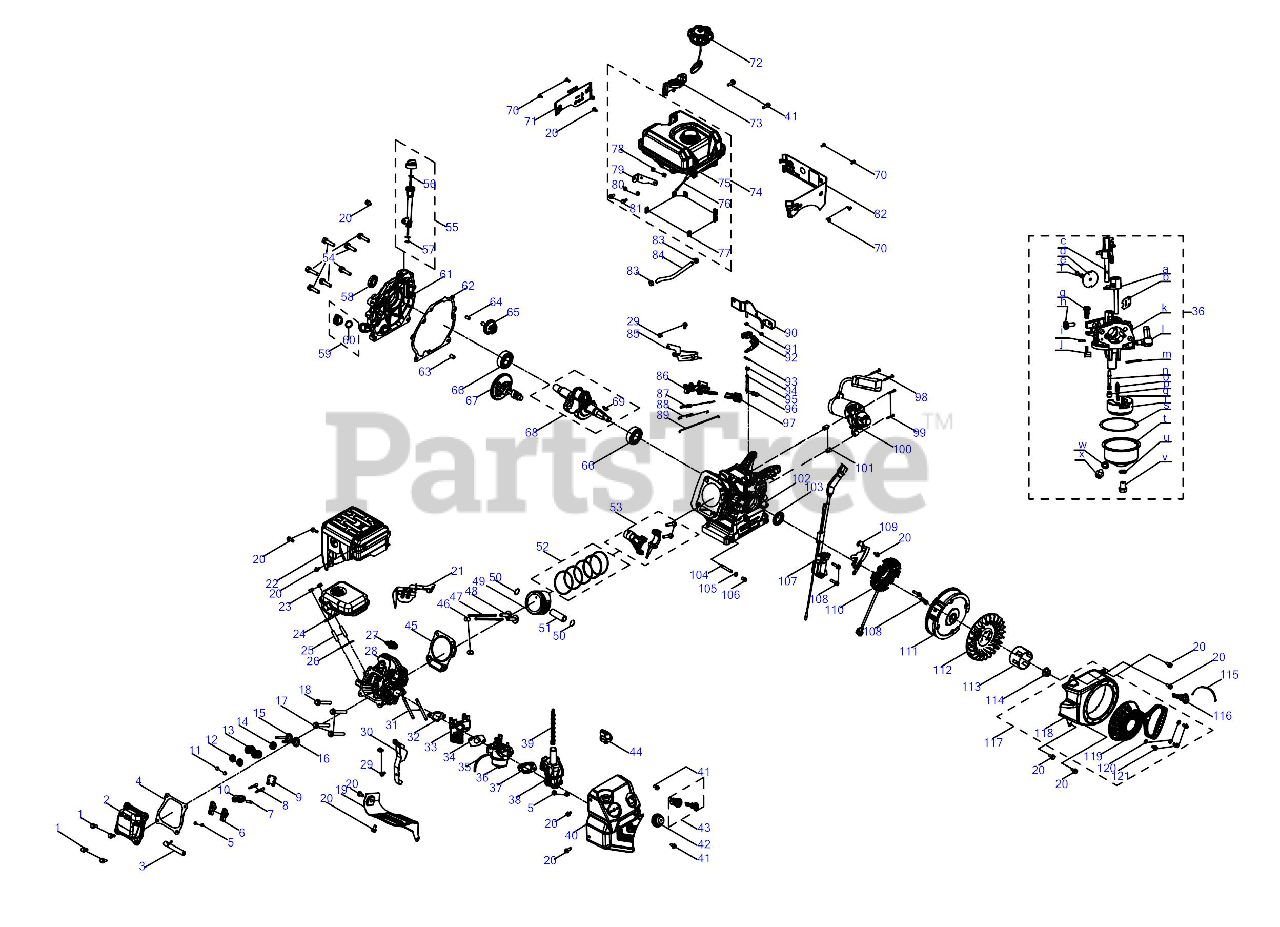

Engine Assembly 675-WU Parts Diagram

  • Title

1

Troy-Bilt 710-04968

BOLT M6-1 x 16 GR8.8

$6.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 908-05028

VALVE COVER

$33.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 951-15045

BREATHER HOSE

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 921-04673

VALVE COVER GASKET

$8.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 712-05015

HEX NUT

$6.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 751-15533

Rocker Arm Assembly
(Superseded to 951-15533)

$13.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 711-06214

Rocker Arm Shaft
(Superseded to 911-06214)

$4.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 910-06092

BOLT M6-1 x M8-1.25 x 50MM

$6.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 908-05066

PUSH ROD GUIDE

$8.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 951-14373

ROCKER ARM PIVOT BLOCK

$23.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 951-12002

EXHAUST VALVE ADJUSTER
(Superseded to 751P12002A)

$2.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 951-12003

EXHAUST VALVE SPRING RETAINER

$4.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 7

0

14

Troy-Bilt 951-11894

INTAKE VALVE SEAL

$10.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 951-14100

EXHAUST VALVE
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 951-14099

INTAKE VALVE
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-06065

SCREW M10-1.25 x 65 x GR10.9

$6.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-06291

BOLT M10-1.25 x 70

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 951-11113

AIR SHIELD

$9.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 8

0

21

Troy-Bilt 751-15591

Shroud
(Superseded to 951-15591)

$13.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 951-15155

MUFFLER GUARD

$69.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 712-04214

NUT

$4.49

$

In Stock, Qty 5

0

24

Troy-Bilt 951-15158

MUFFLER

$75.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-04911

STUD M8-1.25 x 34

$4.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 951-11289

MUFFLER GASKET
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 8

0

27

Troy-Bilt 951-10292

SPARK PLUG
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 619-05073

Cylinder Head
(Superseded to 919-05073)

$99.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-05103

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, only 2 left!

0

30

Troy-Bilt 951-15185

SNOW GUARD

$12.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 951-15580

STUD M6 X 90

$5.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 951-11567

CARBURETOR INSULATOR GASKET
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 951-15160

INSULATOR

$7.49

$

In Stock, only 1 left!

0

34

Troy-Bilt 951-11569A

CARBURETOR GASKET
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 935-05038

PRIMER HOSE

$12.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 651-05444

Carburetor
(Superseded to 951-05444)

$99.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 951-11897

CARBURETOR GASKET PLATE
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 951-15186

HEATER BOX

$

$

Not available

39

Troy-Bilt 951-15581

CHOKE LINKAGE
(Superseded to 751P18086)

$5.99

$

In Stock, Qty 7

0

40

Troy-Bilt 951-15164

CONTROL PANEL
(Superseded to 951-15164A)

$25.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 710-05003

BOLT M6-1 x 18 GR8.8

$4.49

$

In Stock, Qty 5

0

42

Troy-Bilt 951-10639A

PRIMER

$15.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 951-15022

ENGINE KEY SWITCH ASSEMBLY
(Superseded to 951-15022A)

$10.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 951-10637

IGNITION SWITCH

Note: (Not Shown)

$14.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 951-10630

IGNITION KEY

Note: (Not Shown)

$6.99

$

In Stock, Qty 17

0

44

Troy-Bilt 951-15450

CHOKE LEVER

$

$

Not available

45

Troy-Bilt 921-04674

CYLINDER GASKET

$13.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 750-06168

Pin, 12?16

$5.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 951-14370

PUSH ROD (SINGLE)

$7.49

$

Usually ships in 3-6 days

0

48

Troy-Bilt 951-14470

TAPPET

$10.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 919-05074

PISTON

$38.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 951-11632

PISTON PIN SNAP

$4.49

$

In Stock, only 2 left!

0

51

Troy-Bilt 951-11633

PISTON PIN

$7.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 951-14471

PISTON RING SET

$24.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 951-11573

CONNECTING ROD
(Superseded to 751P11573A)

$10.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 710-04932

BOLT M8-1.25 x 32 GR5.8

$4.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 951-05020A

Dipstick
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 921-04663

DIPSTICK O-RING
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 951-12397

OIL FILL TUBE O-RING

$5.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 951-11368

OIL SEAL
(Superseded to 751P11368A)

$3.49

$

In Stock, only 3 left!

0

59

Troy-Bilt 931-09966

OIL PLUG

$6.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt 951-11577

O-RING 15.8 x 2

$4.49

$

Usually ships in 3-6 days

0

61

Troy-Bilt 951-12125

CRANKCASE COVER

$115.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 951-11371

CRANKCASE COVER
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 10

0

63

Troy-Bilt 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

64

Troy-Bilt 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

65

Troy-Bilt 951-11576

GOVERNOR GEAR/SHAFT ASSEMBLY
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

66

Troy-Bilt 951-15055

BALL BEARING

$17.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 951-05058

CAMSHAFT

$67.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 951-05059

CRANKSHAFT ASSEMBLY

$215.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 9

0

70

Troy-Bilt 951-15189

BOLT: M5 x 14

$4.49

$

Usually ships in 3-6 days

0

71

Troy-Bilt 951-15191

DECORATIVE SHEET: RIGHT

$7.49

$

Usually ships in 3-6 days

0

72

Troy-Bilt 951-15172

FUEL CAP

$

$

Not available

73

Troy-Bilt 951-15170

DECORATIVE COVER

$6.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 951-15173

FUEL TANK

$

$

Not available

75

Troy-Bilt (NOT SERVICED)

Fuel Tank

$

$

Currently unavailable

76

Troy-Bilt 951-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

77

Troy-Bilt 951-15578

FUEL TANK MOUNT THREADED TAB

$3.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 712-05186

NUT M6

$4.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 951-15577

FUEL TANK MOUNT TAB

$4.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 736-05197

WASHER 6.5 X 1.5 X 12

$4.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 710-06567

BOLT M6 X 20

$4.49

$

Usually ships in 3-6 days

0

82

Troy-Bilt 951-15231

DECORATIVE SHEET: LEFT

$7.49

$

Usually ships in 3-6 days

0

83

Troy-Bilt 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

In Stock, only 3 left!

0

84

Troy-Bilt 951-15169

FUEL HOSE 6.3 X 12.5 X 162
(Superseded to 951-15169A)

$22.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 951-15168

GOVERNOR SHIELD

$6.99

$

Usually ships in 3-6 days

0

86

Troy-Bilt 951-15153

GOVERNOR GEAR BRACKET ASSEMBLY

$18.99

$

Usually ships in 3-6 days

0

87

Troy-Bilt 951-14882

GOVERNOR SPRING
(Superseded to 751P19229)

$7.99

$

In Stock, only 1 left!

0

88

Troy-Bilt 951-10664

THROTTLE SPRING
(Superseded to 751P10664A)

$2.49

$

In Stock, Qty 10

0

89

Troy-Bilt 951-10665

GOVERNOR ROD
(Superseded to 751P10665A)

$1.99

$

In Stock, only 3 left!

0

90

Troy-Bilt 951-15174

FUEL TANK BRACKET

$11.99

$

Usually ships in 3-6 days

0

91

Troy-Bilt 712-05015

HEX NUT

$6.99

$

In Stock, only 3 left!

0

92

Troy-Bilt 951-14089

GOVERNOR LEVER

$7.99

$

Usually ships in 3-6 days

0

93

Troy-Bilt 714-04078

COTTER PIN

$4.49

$

Usually ships in 3-6 days

0

94

Troy-Bilt 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

Usually ships in 3-6 days

0

95

Troy-Bilt 736-04461

O-RING

$3.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 951-14053

GOVERNOR SHAFT

$15.99

$

Usually ships in 3-6 days

0

97

Troy-Bilt 951-10757

THROTTLE KNOB
(Superseded to 951-11224)

$7.99

$

In Stock, Qty 6

0

98

Troy-Bilt 751-15472

SCREW

$4.99

$

Usually ships in 3-6 days

0

99

Troy-Bilt 710-05182

BOLT M6-1 x 32 GR8.8

$4.49

$

In Stock, only 1 left!

0

100

Troy-Bilt 951-15229

ELECTRIC STARTER

$367.99

$

Usually ships in 3-6 days

0

101

Troy-Bilt 715-04088

DOWEL PIN
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

102

Troy-Bilt 919-05075

CRANKCASE

$212.99

$

Usually ships in 3-6 days

0

103

Troy-Bilt 951-11370

OIL SEAL
(Superseded to 751P11370A)

$2.99

$

In Stock, only 2 left!

0

104

Troy-Bilt 951-11350

OIL DRAIN PIPE

$9.49

$

Usually ships in 3-6 days

0

105

Troy-Bilt 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, Qty 6

0

106

Troy-Bilt 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 6

0

107

Troy-Bilt 951-15151

IGNITION MODULE

$98.99

$

Usually ships in 3-6 days

0

108

Troy-Bilt 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

109

Troy-Bilt 951-11109

BLOWER SHIELD

$7.49

$

Usually ships in 3-6 days

0

111

Troy-Bilt 951-12416

FLYWHEEL
(Superseded to 751P12416A)

$59.99

$

Usually ships in 3-6 days

0

112

Troy-Bilt 951-15025

COOLING FAN

$24.99

$

Usually ships in 3-6 days

0

113

Troy-Bilt 951-14887

STARTER CUP

$14.99

$

Usually ships in 3-6 days

0

114

Troy-Bilt 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

115

Troy-Bilt (NOT SERVICED)

Tape

$

$

Currently unavailable

116

Troy-Bilt 951-10630

IGNITION KEY

$6.99

$

In Stock, Qty 17

0

117

Troy-Bilt 651-05442

Recoil Starter
(Superseded to 951-05442)

$79.99

$

Usually ships in 3-6 days

0

118

Troy-Bilt 951-15228

BLOWER HOUSING

$44.99

$

Usually ships in 3-6 days

0

119

Troy-Bilt 951-15538

RECOIL STARTER ASSEMBLY

$70.99

$

In Stock, only 1 left!

0

120

Troy-Bilt 736-04455

RECOIL FLAT WASHER
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

121

Troy-Bilt 710-06354

BOLT M6 x 10 GR8

$6.99

$

Usually ships in 3-6 days

0

a

Troy-Bilt (NOT SERVICED)

Choke Shaft

$

$

Currently unavailable

b

Troy-Bilt (NOT SERVICED)

Choke Plate

$

$

Currently unavailable

c

Troy-Bilt (NOT SERVICED)

Throttle Shaft

$

$

Currently unavailable

d

Troy-Bilt (NOT SERVICED)

Throttle Plate

$

$

Currently unavailable

e

Troy-Bilt (NOT SERVICED)

Screw, M3?6

$

$

Currently unavailable

f

Troy-Bilt 736-04638

WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

Troy-Bilt (NOT SERVICED)

Idle Jet

$

$

Currently unavailable

h

Troy-Bilt (NOT SERVICED)

Idle Adjusting Screw

$

$

Currently unavailable

i

Troy-Bilt (NOT SERVICED)

Mixture Screw

$

$

Currently unavailable

j

Troy-Bilt 937-05005

PRIMER LINE

$5.99

$

Usually ships in 3-6 days

0

k

Troy-Bilt (NOT SERVICED)

Carb Body

$

$

Currently unavailable

l

Troy-Bilt (NOT SERVICED)

Fuel Nipple

$

$

Currently unavailable

m

Troy-Bilt (NOT SERVICED)

Float Pin

$

$

Currently unavailable

n

Troy-Bilt (NOT SERVICED)

Nozzle Tube

$

$

Currently unavailable

o

Troy-Bilt (NOT SERVICED)

Needle Valve

$

$

Currently unavailable

p

Troy-Bilt (NOT SERVICED)

Main Jet

$

$

Currently unavailable

q

Troy-Bilt (NOT SERVICED)

Needle Valve Spring

$

$

Currently unavailable

r

Troy-Bilt (NOT SERVICED)

Float

$

$

Currently unavailable

s

Troy-Bilt 951-11589

FUEL BOWL GASKET
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

t

Troy-Bilt 908-05000

FLOAT BOWL

$

$

Not available

u

Troy-Bilt 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

v

Troy-Bilt 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 7

0

w

Troy-Bilt 951-11349

FUEL DRAIN PLUG
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 9

0

x

Troy-Bilt 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, only 3 left!

0

Troy-Bilt 651-05448

Short Block
(Superseded to 951-05448)

Note: (Not Shown)

$395.99

$

Usually ships in 3-6 days

0

Troy-Bilt 651-05446

Carb Kit
(Superseded to 951-05446)

Note: (Not Shown)

$37.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-05428

EXTERNAL GASKET KIT

Note: (Not Shown)

$13.99

$

Usually ships in 3-6 days

0

Troy-Bilt 651-05429

Internal Gasket Kit
(Superseded to 951-05429)

Note: (Not Shown)

$22.99

$

Usually ships in 3-6 days

0
