675030 (9116-0) - Craftsman 4,000 Watt Portable Generator Rewind Starter No. 590633 Parts Diagram

4,000 Watt Portable Generator

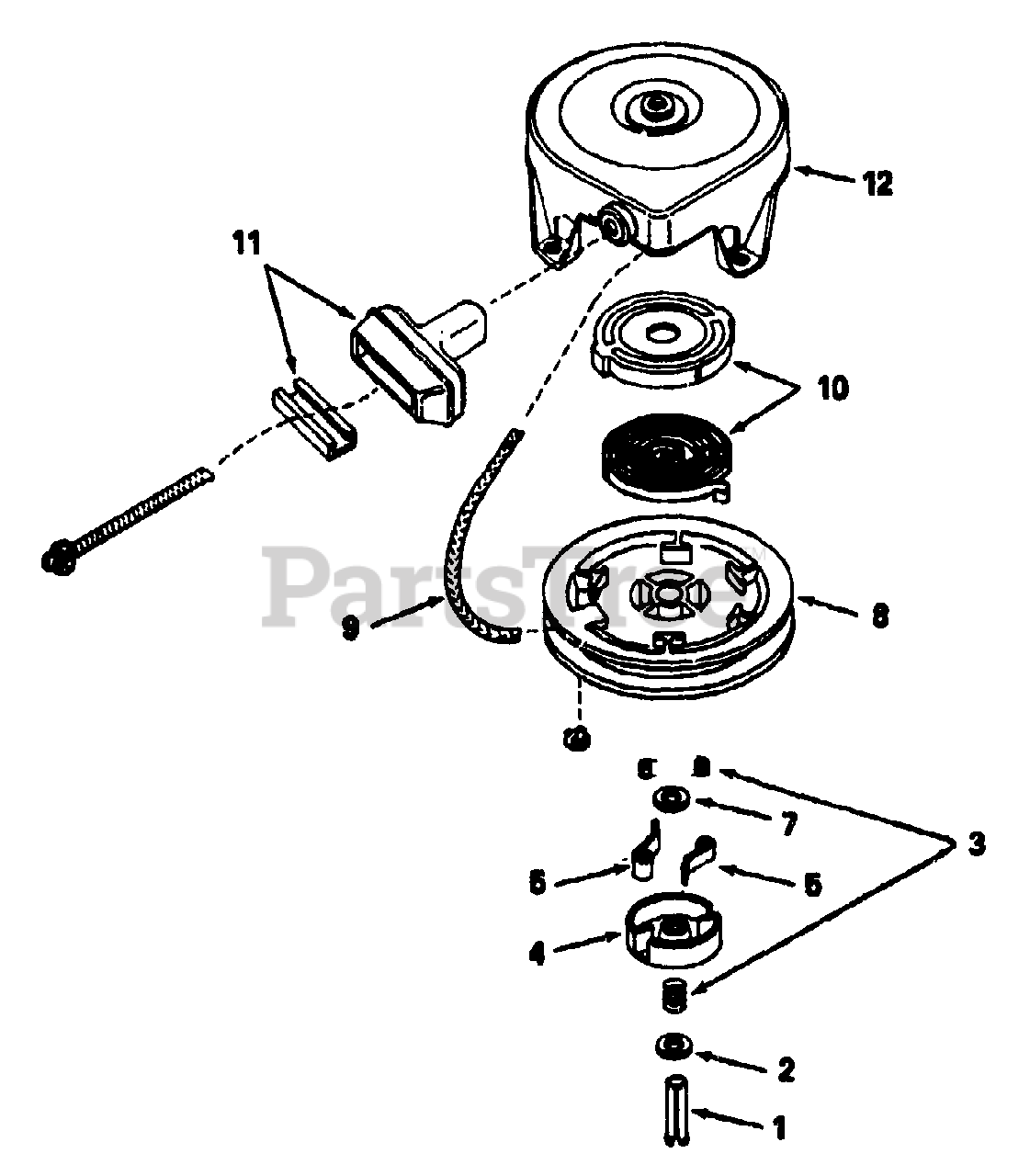

Rewind Starter No. 590633 Parts Diagram

  • Title

Briggs & Stratton 590633

Starter, Rewind

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 2 left!

0

1

Briggs & Stratton 590699A

Pin, Spring

Note: (Incl. No. 7) Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 590600

Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 590651

Spring Assy., Brake & Dog

Note: Contact Generac for quantity required

$11.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 590627

Retainer

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 590641

Dog, Starter

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 590601

Washer

Note: Contact Generac for quantity required

$18.99

$

In Stock, Qty 19

0

8

Briggs & Stratton 590632

Pulley

Note: Contact Generac for quantity required

$3.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 590451A

Rope, Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 590629

Spring & Keeper Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 590387

Handle Assy., Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 590834

Housing Assy., Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable
