67521 HV (961430011-00) - Husqvarna 21" Walk-Behind Mower (2005-01) REPAIR PARTS 2 Parts Diagram

21" Walk-Behind Mower

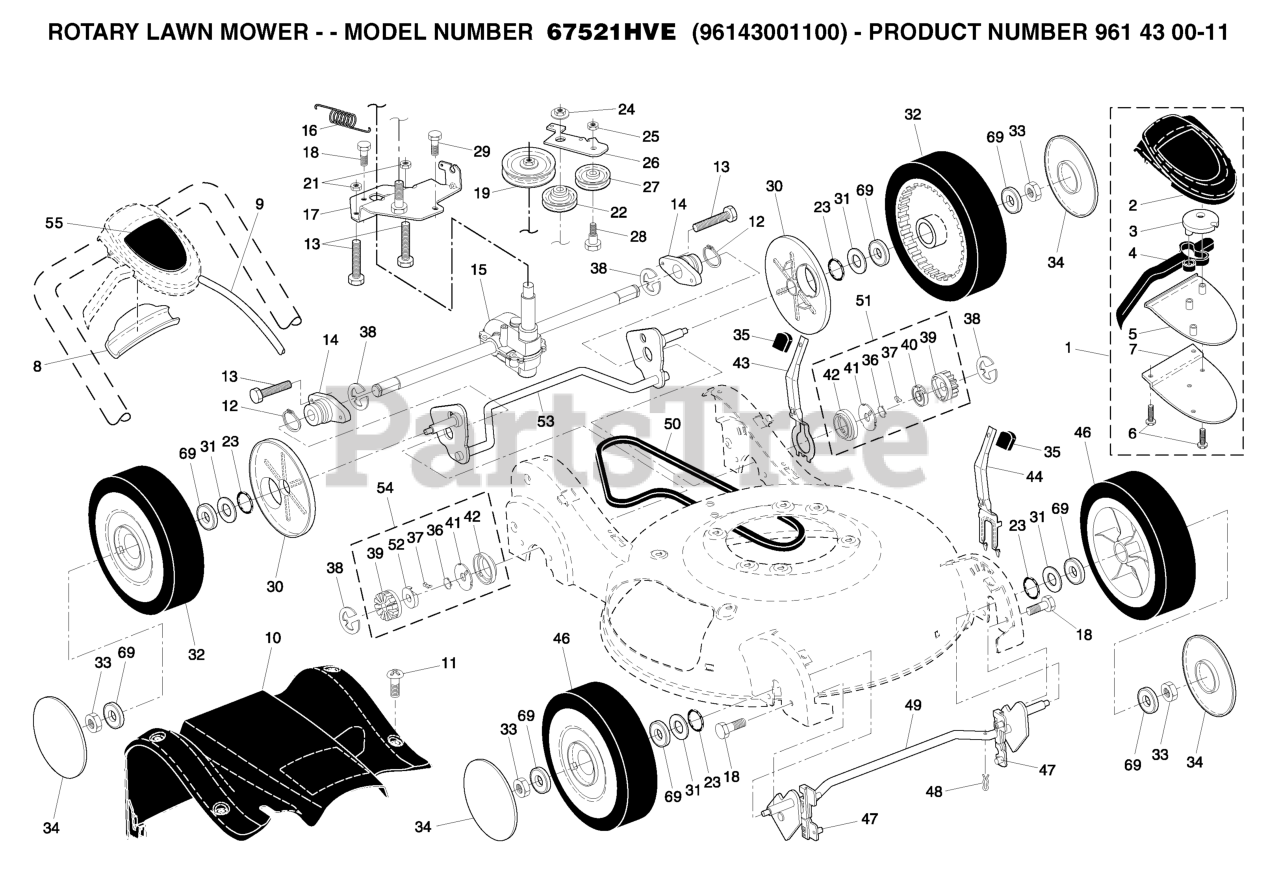

REPAIR PARTS 2 Parts Diagram

  • Title

26

Husqvarna 532196542

ARM.IDLER.BZP
(Superseded to 532194123)

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532188330

PINION ASSY, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

38

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 2 left!

0

13

Husqvarna 532183450

RP SCREW
(Superseded to 532194186)

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532196469

SHAFT FRONT
(Superseded to 532192431)

$

$

Not available

34

Husqvarna 532183695

RB HUBCAP.3-SPOKE.SILVER
(Superseded to 532183442)

$6.49

$

In Stock, only 2 left!

0

44

Husqvarna 532190518

LEVER, SELECTOR, HEIGHT, FRONT
(Superseded to 532188509)

$

$

Not available

42

Husqvarna 532184172

SEAL.PINION

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532188331

PINION ASSY, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

19

Husqvarna 532194128

PULLEY

$18.99

$

In Stock, Qty 16

0

24

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 532190520

LEVER, SELECTOR, HEIGHT, REAR
(Superseded to 532188508)

$7.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532185994

KNOB.SELECTOR.SPRG.H-GRY (2 2)

$15.99

$

In Stock, only 3 left!

0

41

Husqvarna 532175104

DISC.DRIVE.21.EZ-WALK

$7.49

$

In Stock, only 1 left!

0

69

Husqvarna 532751068

BEARING.8".WHEEL

$8.99

$

In Stock, only 1 left!

0

39

Husqvarna 532175103

GEAR, PINION

$

$

Not available

17

Husqvarna 532196822

BRKT.TRANSMISSION.HV.E

$

$

Not available

27

Husqvarna 532166043

IDLER PULLEY

$31.99

$

In Stock, Qty 6

0

40

Husqvarna 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

45

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

15

Husqvarna 532188294

TRANSMISSION.21.HI-VAC.EZ

$133.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$9.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532192230

WHEEL.9X2.25.LP.JUNG.BLACK
(Superseded to 532192232)

$

$

Not available

8

Husqvarna 532186297

EZ WALK SNAP COVER PLATE

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532188291

SPRING, TORSION

$5.99

$

In Stock, Qty 13

0

31

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, only 4 left!

0

30

Husqvarna 532183457

DUST COVER, WHEEL

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532195761

CASE.TOP.GRAY
(Superseded to 532414555)

$

$

Not available

16

Husqvarna 532194124

SPRING.RETURN

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

37

Husqvarna 532175098

PAWL.DRIVE.21.EZ-WALK

$6.49

$

In Stock, Qty 10

0

11

Husqvarna 532184571

SCREW
(Superseded to 532194188)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532183438

BUSHING.FRONT.TORQUE.SHAFT

$7.49

$

In Stock, Qty 5

0

4

Husqvarna 532190037

LEVER
(Superseded to 532425662)

$13.99

$

In Stock, Qty 8

0

22

Husqvarna 532193791

PULLEY.IDLER.V-BELT

$

$

Not available

52

Husqvarna 532175102

RETAINER, DRIVE, RH

$7.49

$

In Stock, only 1 left!

0

5

Husqvarna 532195762

CASE BOTTOM
(Superseded to 532414555)

$

$

Not available

28

Husqvarna 532160829

SHOULDER BOLT

$7.49

$

In Stock, only 2 left!

0

25

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532197011

ASM.CABLE.

$53.99

$

In Stock, only 1 left!

0

1

Husqvarna 532197012

CONTROL.DR.HV.RWGD.GRY/BLU

$

$

Not available

21

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532183688

BELT.DRIVE.EZ.WALK.HI-VAC

$15.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532195995

AXLE.ASM.REAR.TORQUE.BZP
(Superseded to 532192138)

$

$

Not available

48

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 4 left!

0

7

Husqvarna 532187097

BRACKET, DRIVE CONTROL
(Superseded to 532400723)

$

$

Not available

14

Husqvarna 532187120

BEARING.SUPPORT.ASSEM

$

$

Not available

32

Husqvarna 532192619

WHEEL.9X2.25.PR.JUNG.BLK
(Superseded to 532192622)

$67.99

$

In Stock, only 2 left!

0
