68007 C (CM-958H-SED) - Toro Concrete Mixer (SN: 313000001 - 313999999) (2013) FRAME AND YOKE ASSEMBLY Parts Diagram

Concrete Mixer

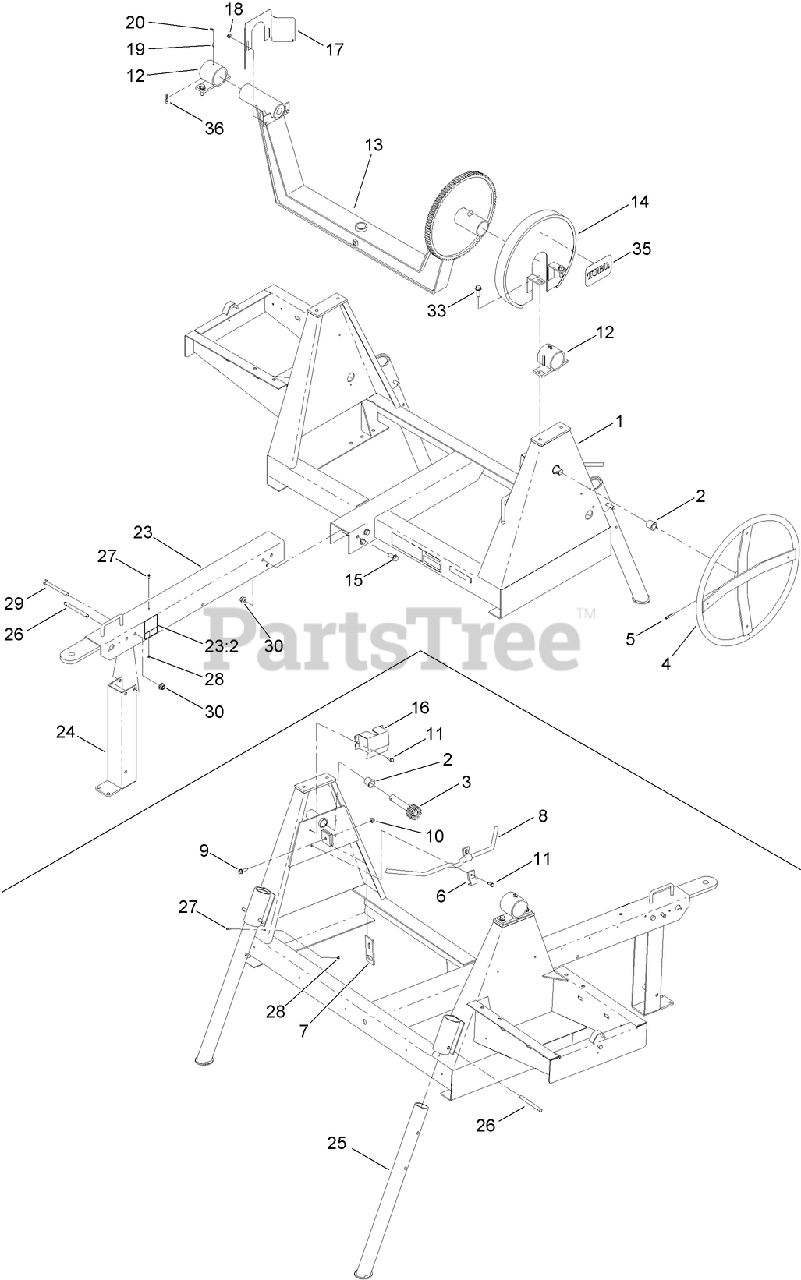

FRAME AND YOKE ASSEMBLY Parts Diagram

  • Title

1

Toro 125-8685-03

FRAME

$1823.99

$

Usually ships in 3-6 days

0

2

Toro ST32032

BUSHING-NYLON

$16.99

$

In Stock, only 2 left!

0

3

Toro ST22029

SHAFT-TILT
(Superseded to 140-5722)

$122.99

$

In Stock, only 1 left!

0

4

Toro ST22096-03

HANDWHEEL

$383.99

$

In Stock, only 1 left!

0

5

Toro 32121-27

PIN-ROLL

$2.99

$

Usually ships in 3-6 days

0

6

Toro ST27559-03

BRACKET-HANDLE

$78.99

$

Usually ships in 3-6 days

0

7

Toro ST27619-03

DOG-BRAKE

$25.99

$

In Stock, only 3 left!

0

8

Toro ST27733-03

HANDLE-BRAKE
(Superseded to 127-5593)

$102.99

$

Usually ships in 3-6 days

0

9

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 701243

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro ST24349-03

TRUNNION

$109.99

$

Usually ships in 3-6 days

0

13

Toro 125-6308

YOKE ASM

$2337.99

$

Usually ships in 3-6 days

0

14

Toro ST27617-03

GUARD-BRAKE, UPPER

$187.99

$

Usually ships in 3-6 days

0

15

Toro 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

16

Toro ST27618-03

GUARD-BRAKE, LOWER

$43.99

$

Usually ships in 3-6 days

0

17

Toro ST27144-03

GUARD-PINION
(Superseded to 130-2208-03)

$22.99

$

Usually ships in 3-6 days

0

18

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro ST46042

FITTING-GREASE

$2.99

$

In Stock, only 4 left!

0

20

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 10

0

23

Toro 127-2816

TOW POLE ASM

$

$

Not available

23:2

Toro 125-8216

DECAL-SAFETY CHAIN, TOWING

$1.99

$

Usually ships in 3-6 days

0

24

Toro ST21875-03

POST-FOOT

$145.99

$

Usually ships in 3-6 days

0

25

Toro ST21874-03

LEG-STABILIZER

$293.99

$

Usually ships in 3-6 days

0

26

Toro ST80039

PIN-CLEVIS, LANYARD

$44.99

$

Usually ships in 3-6 days

0

27

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 325-19

SCREW-HH

$8.99

$

In Stock, only 2 left!

0

30

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

33

Toro ST80031

SCREW-HWH

$10.99

$

Usually ships in 3-6 days

0

35

Toro 99-4693

DECAL

$26.99

$

In Stock, Qty 7

0

36

Toro 125-8175

DECAL-GREASE

$1.49

$

In Stock, only 4 left!

0
