68007 (CM-958H-SED) - Toro Concrete Mixer (SN: 322000001 - 322999999) (2022) Main Frame Assembly Parts Diagram

Concrete Mixer

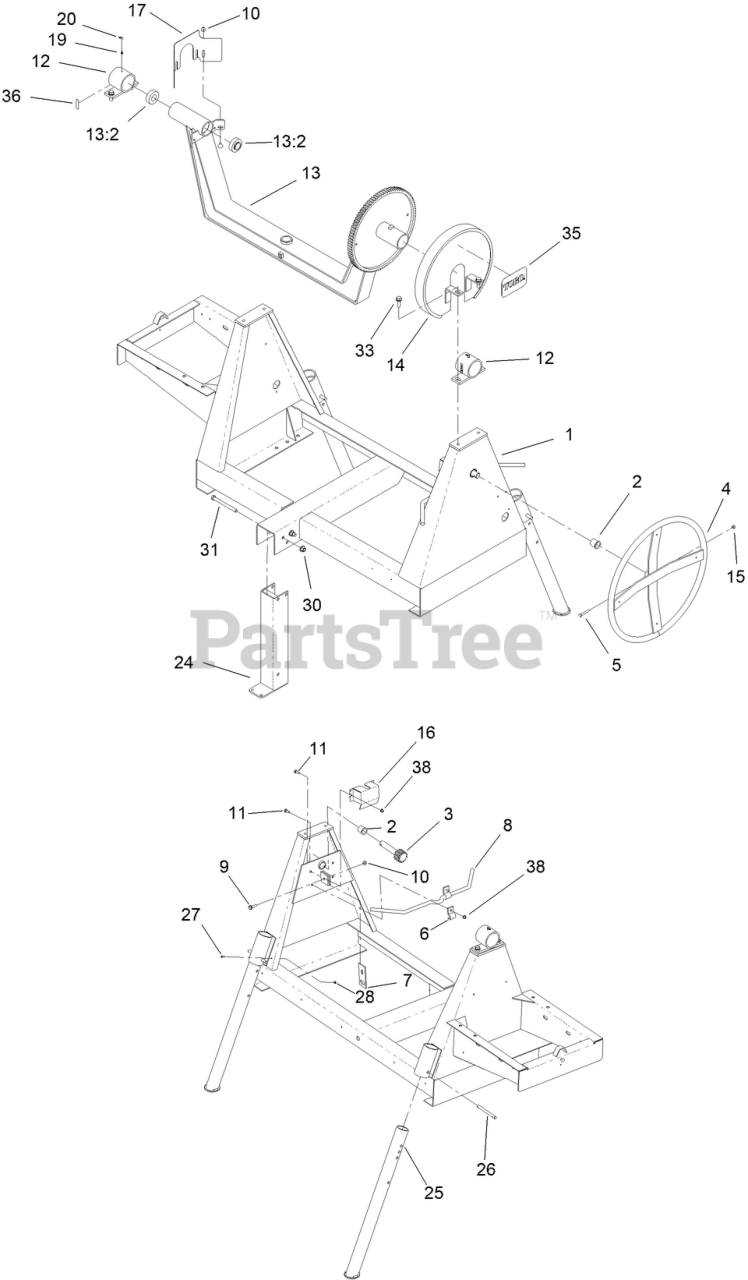

Main Frame Assembly Parts Diagram

  • Title

1

Toro 125-8685-03

FRAME

$1640.99

$

Usually ships in 3-6 days

0

2

Toro ST32032

BUSHING-NYLON

$17.99

$

In Stock, only 2 left!

0

3

Toro 140-5722

SHAFT-TILT

$125.99

$

Usually ships in 3-6 days

0

4

Toro ST22096-03

HANDWHEEL

$422.99

$

In Stock, only 1 left!

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro ST27559-03

BRACKET-HANDLE

$86.99

$

Usually ships in 3-6 days

0

7

Toro ST27619-03

DOG-BRAKE

$26.99

$

In Stock, only 3 left!

0

8

Toro 127-5593

HANDLE-BRAKE

$92.99

$

Usually ships in 3-6 days

0

9

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, only 4 left!

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

12

Toro ST24349-03

TRUNNION

$114.99

$

Usually ships in 3-6 days

0

13

Toro 125-6308

YOKE ASM

$2454.99

$

Usually ships in 3-6 days

0

13:2

Toro ST32039

BEARING

$165.99

$

Usually ships in 3-6 days

0

14

Toro ST27617-03

GUARD-BRAKE, UPPER

$206.99

$

Usually ships in 3-6 days

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro ST27618-03

GUARD-BRAKE, LOWER

$39.99

$

Usually ships in 3-6 days

0

17

Toro 130-2208-03

GUARD-PINION

$24.99

$

Usually ships in 3-6 days

0

19

Toro ST46042

FITTING-GREASE

$2.99

$

In Stock, only 2 left!

0

20

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 8

0

24

Toro ST21875-03

POST-FOOT

$160.99

$

Usually ships in 3-6 days

0

25

Toro ST21874-03

LEG-STABILIZER

$307.99

$

Usually ships in 3-6 days

0

26

Toro ST80039

PIN-CLEVIS, LANYARD

$49.99

$

Usually ships in 3-6 days

0

27

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 15

0

30

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 11

0

31

Toro 325-22

SCREW-HH

$8.99

$

In Stock, Qty 10

0

33

Toro ST80031

SCREW-HWH

$10.99

$

Usually ships in 3-6 days

0

35

Toro 99-4693

DECAL

$26.99

$

In Stock, Qty 6

0

36

Toro 125-8175

DECAL-GREASE

$1.49

$

In Stock, only 4 left!

0

38

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
