68013 C (MM-655H-S) - Toro Mortar Mixer (SN: 313000001 - 313999999) (2013) FRAME AND AXLE ASSEMBLY Parts Diagram

Mortar Mixer

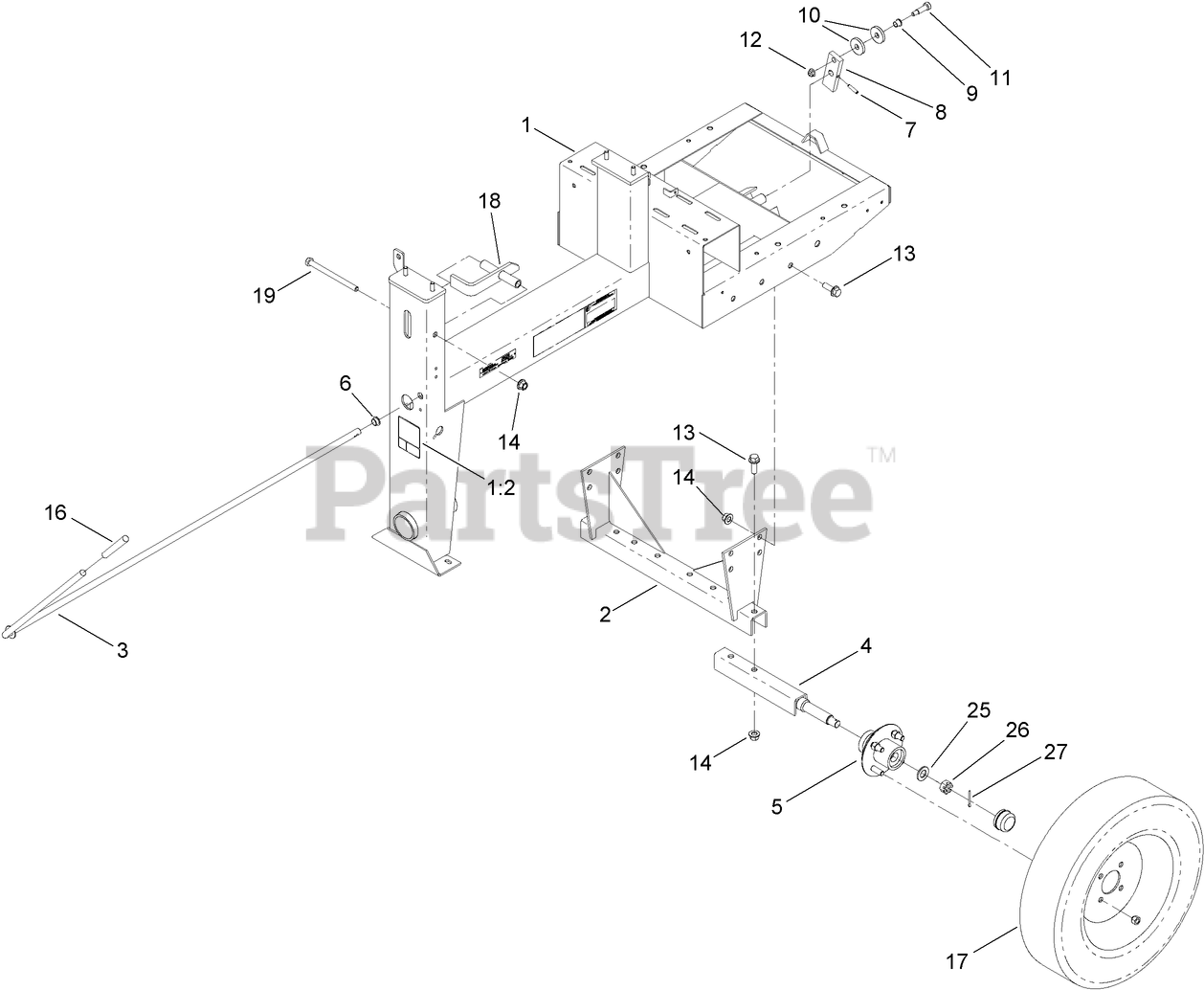

FRAME AND AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-1680

FRAME ASM

$876.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-8216

DECAL-SAFETY CHAIN, TOWING

$2.49

$

Usually ships in 3-6 days

0

2

Toro 125-8219-03

SUPPORT-AXLE

$189.99

$

Usually ships in 3-6 days

0

3

Toro ST39568-03

LEVER-CLUTCH

$93.99

$

Usually ships in 3-6 days

0

4

Toro ST22512-03

AXLE-HALF

$191.99

$

Usually ships in 3-6 days

0

5

Toro 125-8171

HUB ASM
(Superseded to 139-1328)

$209.99

$

Usually ships in 3-6 days

0

6

Toro ST32116

BUSHING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

7

Toro 32121-69

PIN-SPRING

$2.49

$

In Stock, only 3 left!

0

8

Toro ST39446-03

LINK-CLUTCH
(Superseded to ST39446)

$65.99

$

In Stock, only 1 left!

0

9

Toro ST32099

BUSHING-FLANGE

$2.99

$

Usually ships in 3-6 days

0

10

Toro ST26326

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

11

Toro ST81153

SCREW-HSBH

$

$

Not available

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 100-6116

SCREW-HHF

$9.99

$

Usually ships in 3-6 days

0

14

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 11

0

16

Toro ST34687

GRIP-HANDLE

$18.99

$

Usually ships in 3-6 days

0

17

Toro ST32306

TIRE AND RIM ASM

$163.99

$

In Stock, only 1 left!

0

18

Toro ST24027-03

LATCH-DRUM
(Superseded to 132-7154-03)

$54.99

$

Usually ships in 3-6 days

0

19

Toro 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

25

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

26

Toro ST80054

NUT

$3.49

$

Usually ships in 3-6 days

0

27

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 7

0
