68024 C (MM-12511H-S) - Toro Mortar Mixer (SN: 313000001 - 313999999) (2013) GEARCASE ASSEMBLY NO. ST22075-03 Parts Diagram

Mortar Mixer

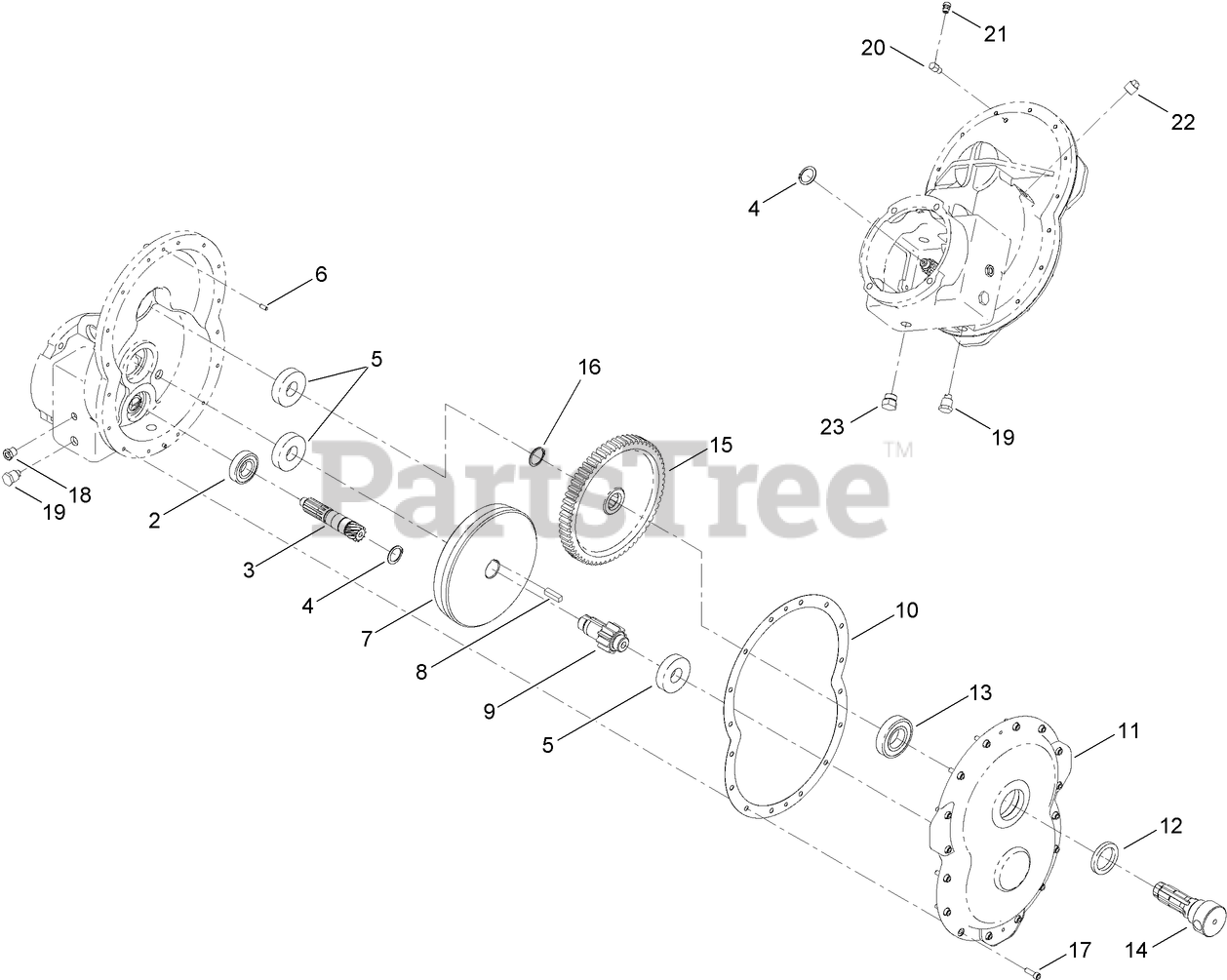

GEARCASE ASSEMBLY NO. ST22075-03 Parts Diagram

  • Title

2

Toro ST32213

BEARING-BALL

$49.99

$

Usually ships in 3-6 days

0

3

Toro ST28095

SHAFT-INPUT, PINION

$377.99

$

Usually ships in 3-6 days

0

4

Toro ST80098

RING-EXTERNAL

$1.49

$

Usually ships in 3-6 days

0

5

Toro ST32101

BEARING-ROLLER

$232.99

$

Usually ships in 3-6 days

0

6

Toro 75-6480

PIN

$65.99

$

Usually ships in 3-6 days

0

7

Toro ST28096

GEAR-HELICAL

$

$

Not available

8

Toro ST81060

KEY-SQUARE

$2.49

$

In Stock, only 2 left!

0

9

Toro ST28097

PINION

$351.99

$

Usually ships in 3-6 days

0

10

Toro ST28088

GASKET-GEARCASE

$19.99

$

Usually ships in 3-6 days

0

11

Toro ST28085

COVER-GEARCASE

$883.99

$

Usually ships in 3-6 days

0

12

Toro ST35295

SEAL-SHAFT

$74.99

$

Usually ships in 3-6 days

0

13

Toro ST32177

BEARING-BALL

$94.99

$

Usually ships in 3-6 days

0

14

Toro ST28092

SHAFT-OUTPUT, GEARCASE

$618.99

$

Usually ships in 3-6 days

0

15

Toro ST28098

GEAR-SPUR

$764.99

$

Usually ships in 3-6 days

0

16

Toro 32120-84

RING-SNAP, EXTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3274-22

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

18

Toro ST34096

PLUG-SIGHT, OIL

$47.99

$

Usually ships in 3-6 days

0

19

Toro ST46108

PLUG-HH, MAGNETIC

$22.99

$

Usually ships in 3-6 days

0

20

Toro ST46062

ELBOW-CONNECTION

$26.99

$

Usually ships in 3-6 days

0

21

Toro ST46064

BREATHER-ALEMITE

$10.99

$

Usually ships in 3-6 days

0

22

Toro ST46107

PLUG

$2.99

$

Usually ships in 3-6 days

0

23

Toro ST44332

PLUG

$9.99

$

Usually ships in 3-6 days

0
