68035 (VR-3100) - Toro Rammer Compactor (SN: 313000001 - 313999999) (2013) LOWER UNIT ASSEMBLY Parts Diagram

Rammer Compactor

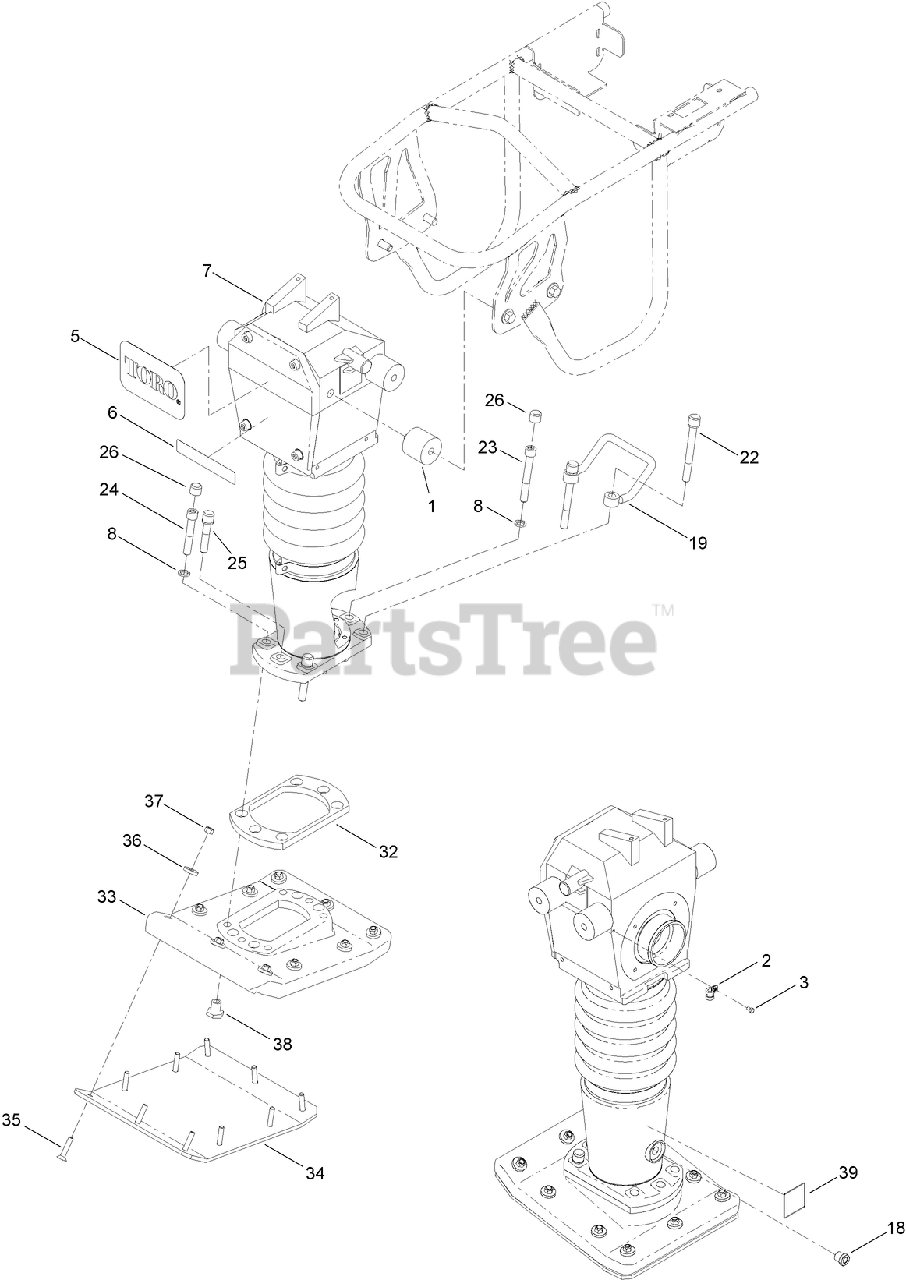

LOWER UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro ST39425

MOUNT-SHOCK

$43.99

$

Usually ships in 3-6 days

0

2

Toro ST39509

CLAMP

$7.49

$

Usually ships in 3-6 days

0

3

Toro ST81043

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 99-4693

DECAL

$26.99

$

In Stock, Qty 7

0

6

Toro 125-8179

DECAL
(Superseded to 127-7592)

$7.99

$

Usually ships in 3-6 days

0

7

RAMMER ASM

Note: Not serviced separately

$

$

Not available

8

Toro ST81196

WASHER-LOCK

$9.99

$

Usually ships in 3-6 days

0

18

Toro ST34096

PLUG-SIGHT, OIL

$52.99

$

Usually ships in 3-6 days

0

19

Toro ST39480-03

GRIP-LIFT

$137.99

$

Usually ships in 3-6 days

0

22

Toro ST81193

SCREW-HSH

$9.99

$

Usually ships in 3-6 days

0

23

Toro ST80946

SCREW-HSH

$33.99

$

Usually ships in 3-6 days

0

24

Toro ST80945

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

25

Toro ST80827

SCREW-HSH

$5.99

$

Usually ships in 3-6 days

0

26

Toro ST80765

CAP-PLASTIC

$1.49

$

Usually ships in 3-6 days

0

32

Toro ST50370

PLATE-SPACER, SHOE

$198.99

$

Usually ships in 3-6 days

0

33

Toro ST47302

SHOE-PLASTIC, MEDIUM/HEAVY
(Superseded to ST22988)

$972.99

$

Usually ships in 3-6 days

0

34

Toro ST65024-03

PLATE-SHOE

$

$

Not available

35

Toro ST80823

SCREW-HSFH

$

$

Not available

36

Toro ST26325

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

37

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

38

Toro ST65028

INSERT-SHOE

$17.99

$

Usually ships in 3-6 days

0

39

Toro 125-8183

DECAL-OIL LEVEL
(Superseded to 127-7595)

$4.99

$

Usually ships in 3-6 days

0
