68036 (VR-3500) - Toro Rammer Compactor (SN: 313000001 - 313999999) (2013) ENGINE ASSEMBLY Parts Diagram

Rammer Compactor

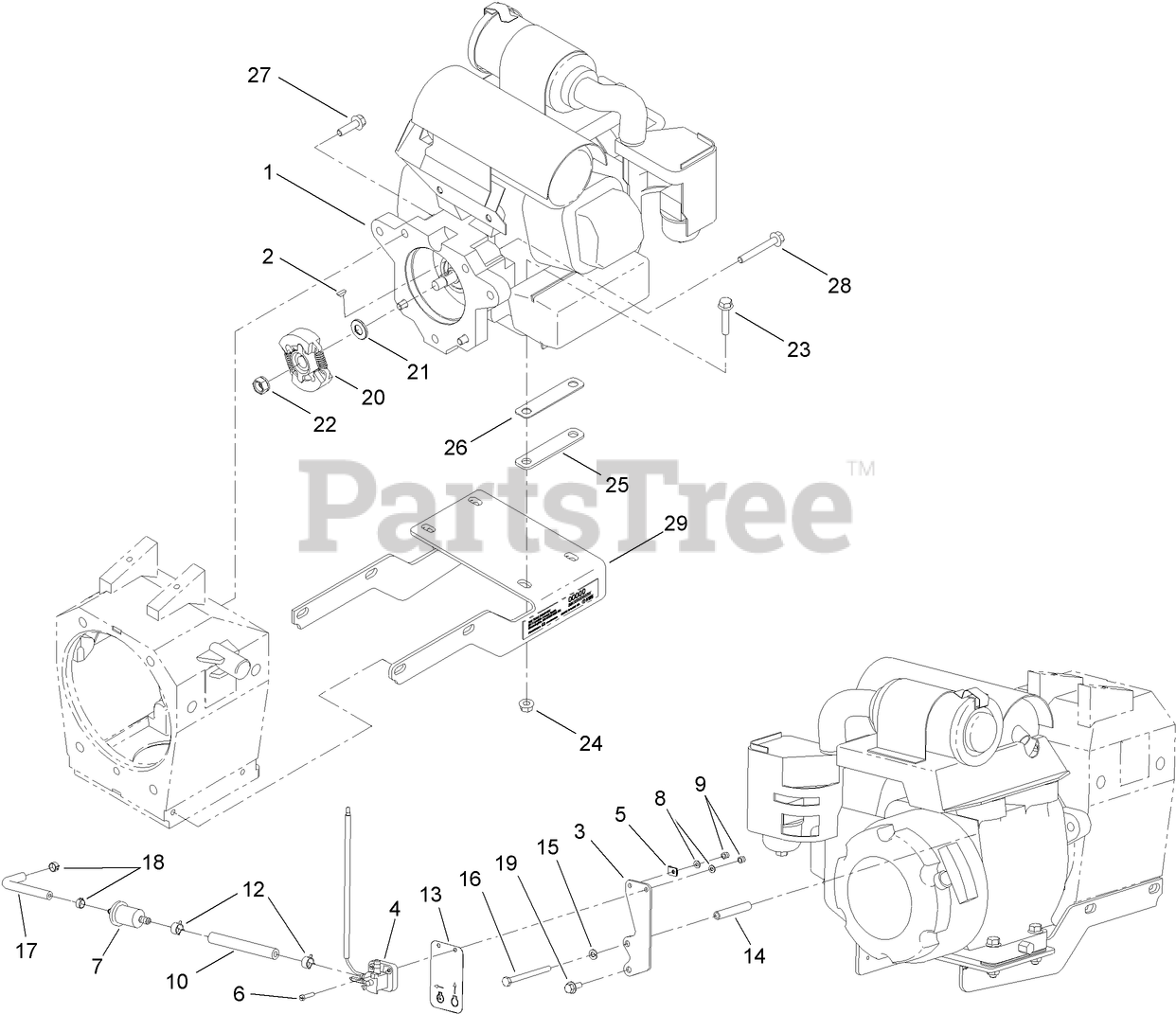

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 125-4817

ENGINE-HONDA, GX120

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Toro ST32525

KEY-WOODRUFF

$13.99

$

Usually ships in 3-6 days

0

3

Toro ST50362-03

PLATE-SWITCH, STOP

$15.99

$

Usually ships in 3-6 days

0

4

Toro ST58582

FUEL SHUT OFF VALVE ASM

$191.99

$

Usually ships in 3-6 days

0

5

Toro ST39502

CLAMP
(Superseded to 132-4012)

$2.99

$

Usually ships in 3-6 days

0

6

Toro ST80926

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

7

Toro ST31231

FILTER-FUEL

$82.99

$

Usually ships in 3-6 days

0

8

Toro 48-7990

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

9

Toro 46-0430

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

10

Toro 109-0295

HOSE-FUEL

$2.99

$

Usually ships in 3-6 days

0

12

Toro ST34492

CLAMP-HOSE, FUEL
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

13

Toro 125-4966

HANG TAG-RUN, STOP

$6.49

$

Usually ships in 3-6 days

0

14

Toro ST50361

TUBE-SWITCH, STOP

$13.99

$

Usually ships in 3-6 days

0

15

Toro 43-5930

WASHER-LOCK, SPRING

$0.99

$

Usually ships in 3-6 days

0

16

Toro ST81354

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 115-4736

HOSE-FUEL

$4.99

$

Usually ships in 3-6 days

0

18

Toro ST32522

CLAMP-HOSE, FUEL
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 10

0

19

Toro 33103-016

SCREW-HHF

$5.99

$

In Stock, Qty 6

0

20

Toro ST30291

CLUTCH-FRICTION

$

$

Currently unavailable

21

Toro ST58857

SPACER-CLUTCH

$91.99

$

Usually ships in 3-6 days

0

22

Toro ST32524

NUT-HEX FLANGE

$6.99

$

Usually ships in 3-6 days

0

23

Toro 33104-040

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

24

Toro 33004-00

NUT-HF

$0.99

$

In Stock, only 3 left!

0

25

Toro ST50414-03

SHIM-ENGINE (11GA)

$11.99

$

Usually ships in 3-6 days

0

26

Toro ST50415-03

SHIM-ENGINE (16GA)

$14.99

$

Usually ships in 3-6 days

0

27

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

28

Toro 33104-060

SCREW-HHF

$36.99

$

Usually ships in 3-6 days

0

29

Toro 127-2800-03

SUPPORT-ENGINE

$

$

Currently unavailable
