68037 (e2500) - Toro Electric Ultra Buggy (SN: 400000000 - 412999999) Handle Assembly Parts Diagram

Electric Ultra Buggy

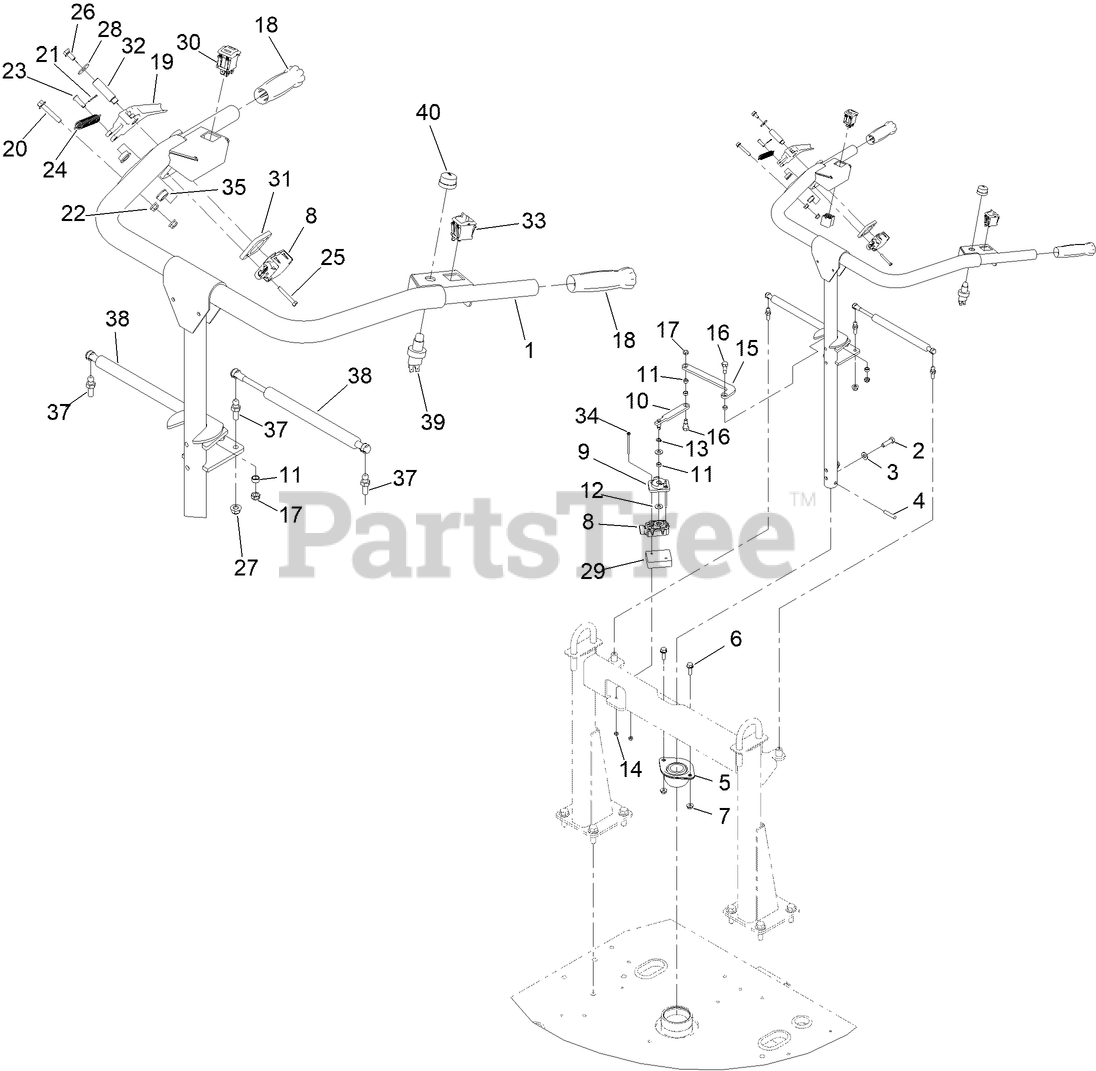

Handle Assembly Parts Diagram

  • Title

1

Toro 145-3199-03

HANDLE ASM [BLACK]

$694.99

$

0

2

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

3

Toro 100-4852

WASHER-HARDENED

$5.49

$

Usually ships in 3-6 days

0

4

Toro ST80309

PIN

$9.49

$

Usually ships in 3-6 days

0

5

Toro ST45930

SPHERICAL BEARING ASM

$216.99

$

Usually ships in 3-6 days

0

6

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

7

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0

8

Toro 122-0917

SENSOR-POSITION

$203.99

$

0

9

Toro 144-1731

MOUNT-LINKAGE

$160.99

$

Usually ships in 3-6 days

0

10

Toro 144-1728

LINKAGE ASM

$137.99

$

Usually ships in 3-6 days

0

11

Toro 120-9708

BUSHING

$

$

Currently unavailable

12

Toro 132-4593

WASHER

$1.49

$

0

13

Toro 105-2410

RING-RETAINING

$

$

Currently unavailable

14

Toro 120-9659

NUT-LOCK, NI

$

$

Currently unavailable

15

Toro 144-1734

LINKAGE-STEERING

$22.99

$

0

16

Toro 59-5400

BOLT-SHOULDER

$61.99

$

Usually ships in 3-6 days

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

18

Toro T62021010

GRIP-VINYL, BLACK

$17.99

$

0

19

Toro 144-7153

HANDLE

$28.99

$

0

20

Toro 321-43

CAPSCREW

$0.99

$

In Stock, Qty 20+

0

21

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

22

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 11

0

23

Toro 1-808265

PIN-CLEVIS

$3.49

$

In Stock, Qty 8

0

24

Toro 137-2591

SPRING-EXTENSION

$

$

Currently unavailable

25

Toro 32105-1

SCREW-SHH

$1.49

$

In Stock, Qty 8

0

26

Toro 119-1065

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

27

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 137-3106

WASHER-PLAIN

$3.99

$

Usually ships in 3-6 days

0

29

Toro 144-7124-0P

SPACER, STEERING-SENSOR

$62.99

$

0

30

Toro 145-1152

SWITCH-DIRECTIONAL

$73.99

$

Usually ships in 3-6 days

0

31

Toro 144-1729-0P

PLATE-MOUNT, LINKAGE

$8.49

$

0

32

Toro 145-1153

SHAFT-SENSOR

$44.99

$

Usually ships in 3-6 days

0

33

Toro 144-1782

SWITCH-DUMP

$49.99

$

Usually ships in 3-6 days

0

34

Toro 32105-30

SCREW-SHH

$

$

Currently unavailable

35

Toro 145-1154

BUSHING

$2.99

$

Usually ships in 3-6 days

0

37

Toro 145-4951

STUD-BALL

$7.99

$

Usually ships in 3-6 days

0

38

Toro 145-4921

DAMPER-GAS

$55.99

$

Usually ships in 3-6 days

0

39

Toro 112-3324

SWITCH-HORN

$45.99

$

Usually ships in 3-6 days

0

40

Toro 112-3313

NUT-WEATHERPROOF

$6.99

$

Usually ships in 3-6 days

0
