68037 (e2500) - Toro Electric Ultra Buggy (SN: 413000000 - 414865902) Harness Assembly Parts Diagram

Electric Ultra Buggy

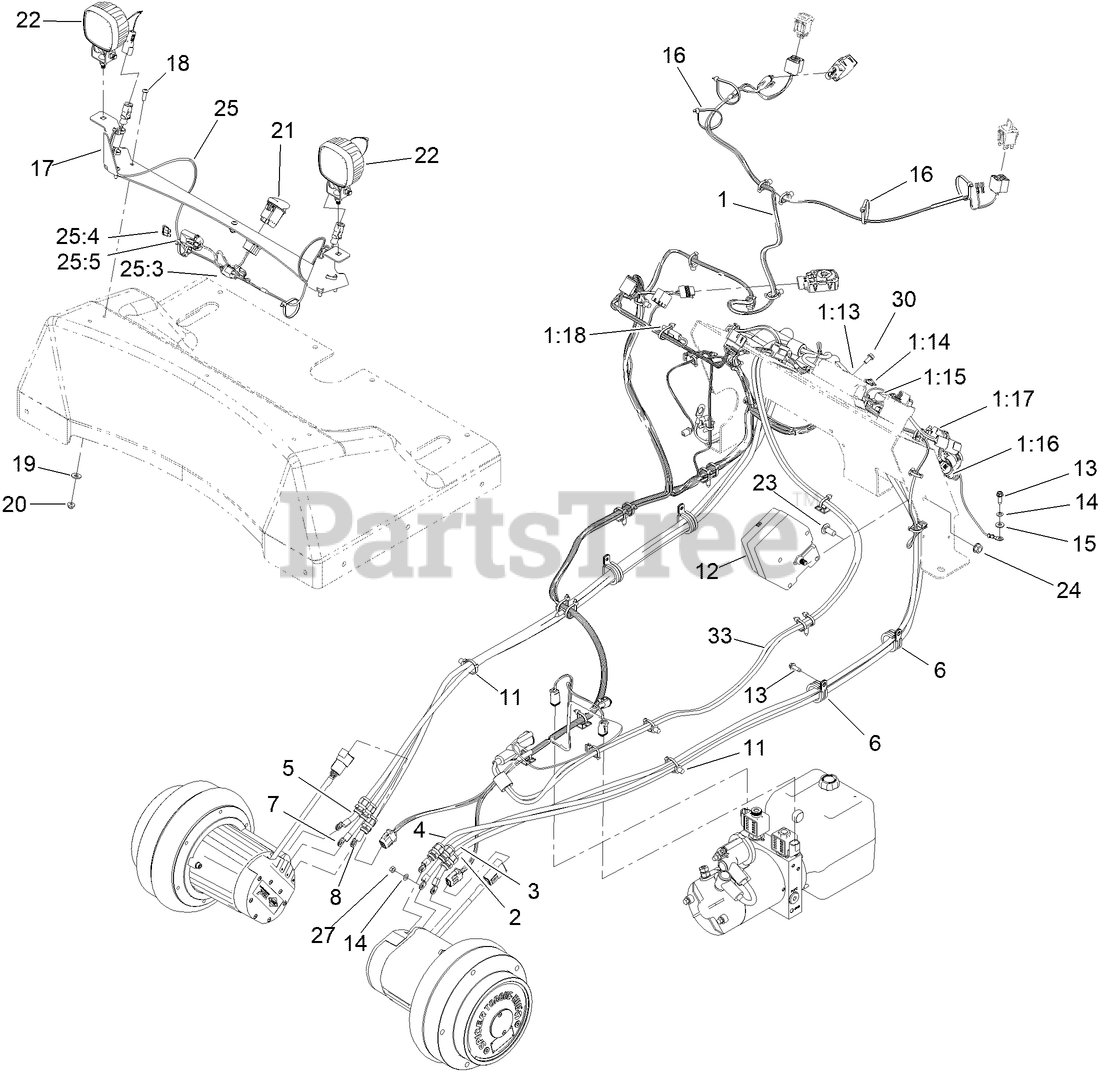

Harness Assembly Parts Diagram

  • Title

1

Toro 122-2507

HARNESS-WIRE, MAIN

$2514.99

$

Usually ships in 0 days

0

1:13

Toro 117-4722

FUSE-BLADE, 5A

$

$

Currently unavailable

1:14

Toro 117-4724

FUSE-BLADE, 10A

$

$

Currently unavailable

1:15

Toro 32180-567

COVER-APTIV, MODIFIED

$

$

Currently unavailable

1:16

Toro 32180-282

RESISTOR-120 OHM

$28.99

$

Usually ships in 3-6 days

0

1:17

Toro 32180-089

CAP-PLUG, 3 WAY

$3.99

$

Usually ships in 3-6 days

0

1:18

Toro 116-0053

CAP-PLUG

$42.99

$

Usually ships in 3-6 days

0

2

Toro 122-2602

CABLE-BATTERY, RD ASM

$185.99

$

Usually ships in 0 days

0

3

Toro 122-2603

CABLE-BATTERY, RD ASM

$185.99

$

Usually ships in 0 days

0

4

Toro 122-2604

CABLE-BATTERY, RD ASM

$199.99

$

Usually ships in 0 days

0

5

Toro 122-2605

CABLE-BATTERY, RD ASM

$168.99

$

Usually ships in 0 days

0

6

Toro 120-2037

R-CLAMP

$

$

Currently unavailable

7

Toro 122-2606

CABLE-BATTERY, RD ASM

$168.99

$

Usually ships in 0 days

0

8

Toro 122-2607

CABLE-BATTERY, RD ASM

$168.99

$

Usually ships in 0 days

0

11

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

12

Toro 145-4982

HORN

$182.99

$

Usually ships in 3-6 days

0

13

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

14

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

15

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

17

Toro 144-7138-03

BRACKET-MOUNT,LIGHT [BLACK]

$132.99

$

Usually ships in 0 days

0

18

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 10

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro 112-9421

SWITCH

$89.99

$

Usually ships in 3-6 days

0

22

Toro 147-3261

LIGHT-WORK

$106.99

$

Usually ships in 0 days

0

23

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 6

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

HARNESS-WIRE, LIGHT KIT

Note: Not serviced separately

$

$

Not available

25:3

Toro 32180-091

CAP-DUST, 2 WAY

$14.99

$

Usually ships in 3-6 days

0

25:4

Toro 117-4720

FUSE-BLADE, 3A

$

$

Currently unavailable

25:5

Toro 32180-567

COVER-APTIV, MODIFIED

$

$

Currently unavailable

27

Toro HDW21408

NUT-HEX

$

$

Currently unavailable

30

Toro 145-5782

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

33

Toro 122-2791

CABLE-BATTERY, RD AND BK ASM

$352.99

$

Usually ships in 0 days

0
