68037 (e2500) - Toro Electric Ultra Buggy (SN: 414865903 - 415399999) Frame Assembly Parts Diagram

Electric Ultra Buggy

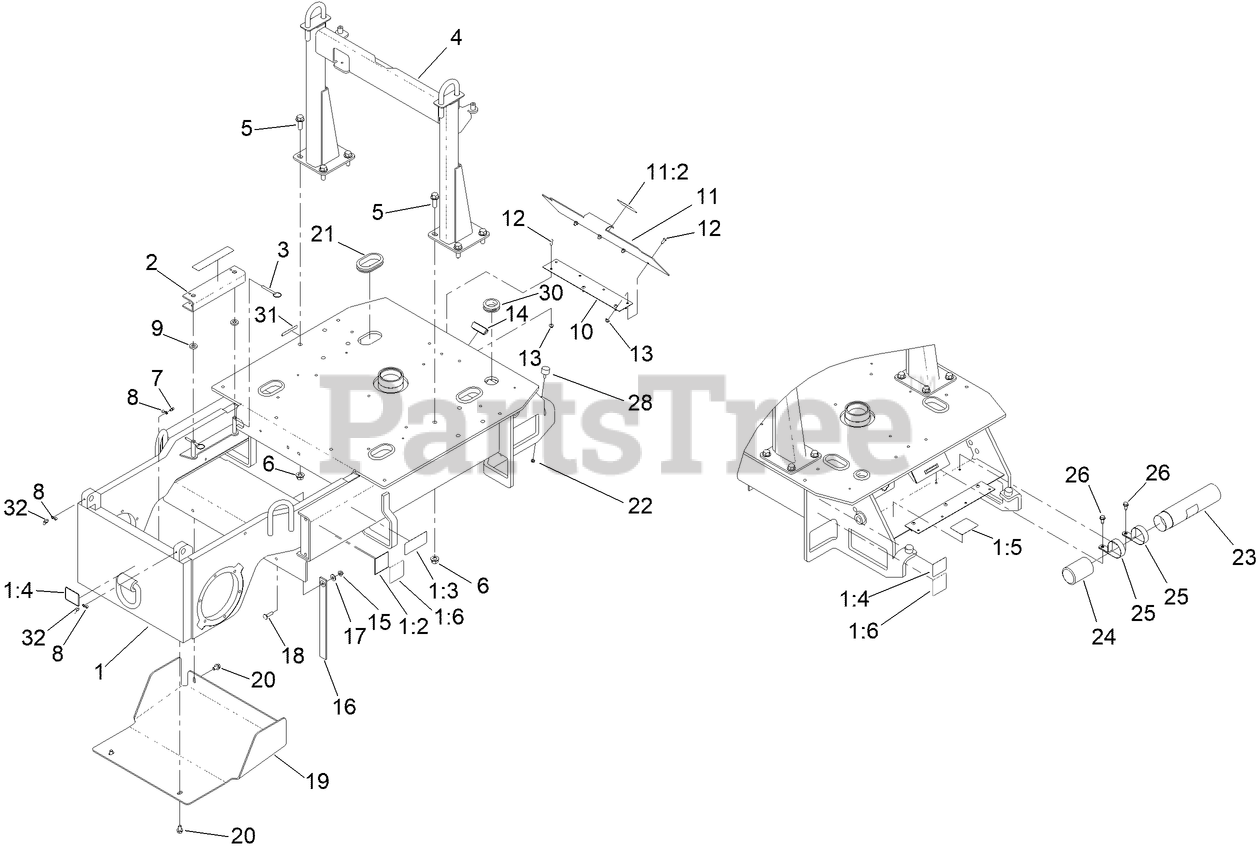

Frame Assembly Parts Diagram

  • Title

1

Toro 147-3218

FRAME ASM

$

$

Currently unavailable

1:2

Toro 125-4967

DECAL-LIFT HERE

$2.49

$

Usually ships in 3-6 days

0

1:3

Toro 125-4959

DECAL-WARNING, CRUSHING

$10.99

$

Usually ships in 3-6 days

0

1:4

Toro 125-6694

DECAL-TIE DOWN

$3.99

$

Usually ships in 3-6 days

0

1:5

Toro 145-1170

DECAL-WARNING, CHARGER

$11.99

$

Usually ships in 3-6 days

0

1:6

Toro 145-1181

DECAL-FORKLIFT POCKET

$2.99

$

Usually ships in 0 days

0

2

Toro 144-1704

CYLINDER LOCKING ASM

$61.99

$

Usually ships in 0 days

0

3

Toro 108-0094

PIN-COTTERLESS

$5.49

$

Usually ships in 3-6 days

0

4

Toro 144-1677-03

FRAME LIFT ASM-WELDED

$

$

Currently unavailable

5

Toro 100-6116

SCREW-HHF

$9.99

$

In Stock, only 1 left!

0

6

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 10

0

9

Toro 83-1470

WASHER-NEOPRENE

$3.49

$

Usually ships in 3-6 days

0

10

Toro 132-9021

HINGE-HOOD

$47.99

$

Usually ships in 3-6 days

0

11

Toro 147-3224

COVER-CABLE

$106.99

$

Usually ships in 0 days

0

11:2

Toro 145-1174

DECAL-BATTERY CHARGER

$

$

Currently unavailable

12

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 99-3497

MAGNET

$

$

Currently unavailable

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 139-7731

STRAP, STATIC

$25.99

$

Usually ships in 3-6 days

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 144-1788-03

PLATE-SKID

$

$

Currently unavailable

20

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

21

Toro 145-4923

GROMMET

$4.99

$

Usually ships in 0 days

0

22

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

24

Toro 104-7048

CAP-HOUSING

$6.49

$

Usually ships in 3-6 days

0

25

Toro 2412-133

CLAMP-R

$9.99

$

Usually ships in 3-6 days

0

26

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

30

Toro 137-1812

GROMMET

$4.99

$

Usually ships in 0 days

0

31

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0

32

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

Usually ships in 3-6 days

0
