68037 (e2500) - Toro Electric Ultra Buggy (SN: 414865903 - 415399999) Tower and Hood Assembly Parts Diagram

Electric Ultra Buggy

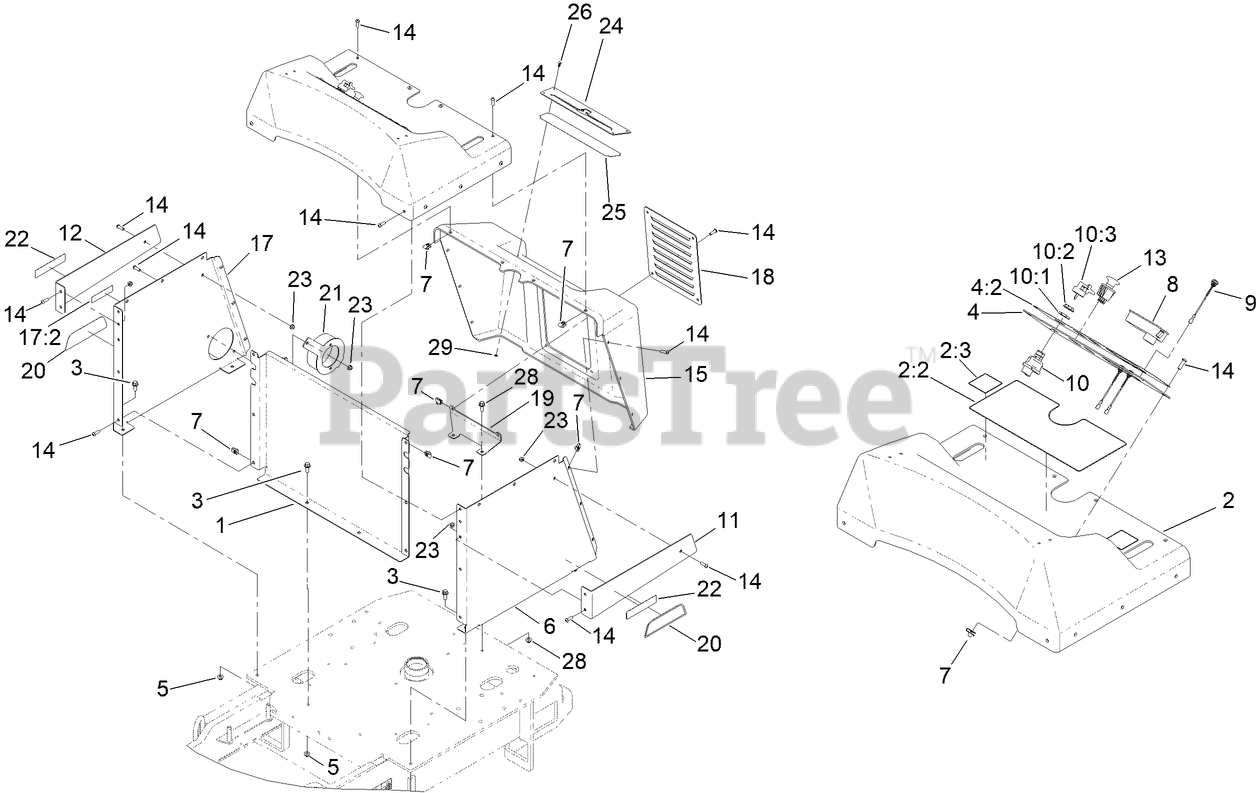

Tower and Hood Assembly Parts Diagram

  • Title

1

Toro 144-1652-03

PANEL-TOWER,FRONT

$

$

Not available

2

Toro 147-3219

DASH PANEL ASM

$710.99

$

Usually ships in 3-6 days

0

2:2

Toro 145-1168

DECAL-CONTROL PANEL

$23.99

$

Usually ships in 3-6 days

0

2:3

Toro 125-4967

DECAL-LIFT HERE

$2.99

$

Usually ships in 3-6 days

0

3

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 9

0

4

Toro 147-3220

DISPLAY COVER ASM

$120.99

$

Usually ships in 3-6 days

0

4:2

Toro 145-1169

DECAL-CONTROL PANEL

$23.99

$

Usually ships in 3-6 days

0

5

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, only 4 left!

0

6

Toro 144-1662-01

PANEL-ACCESS, LH

$218.99

$

Usually ships in 3-6 days

0

7

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 14

0

8

Toro 122-2152

CONTROLLER, TDM-1601

$762.99

$

Usually ships in 3-6 days

0

9

Toro 136-9678

SWITCH-PUSHBUTTON

$62.99

$

Usually ships in 3-6 days

0

10

Toro 122-2513

SWITCH-IGNITION, SUNS

$34.99

$

Usually ships in 3-6 days

0

10:1

Toro 121-5160

NUT-HEX

Note: Not illustrated

$121.99

$

Usually ships in 3-6 days

0

10:2

Toro 122-2704

NUT-FACE, M22 (PLASTIC)

$2.99

$

Usually ships in 3-6 days

0

10:3

Toro 121-5162

SET-KEY, IGNITION

$36.99

$

In Stock, Qty 5

0

11

Toro 145-4985-03

PLATE-DECAL [BLACK]

$

$

Currently unavailable

12

Toro 145-4986-03

PLATE-DECAL [BLACK]

$

$

Currently unavailable

13

Toro 136-6888

SWITCH, E-STOP

$31.99

$

Usually ships in 3-6 days

0

14

Toro 109-4872

SCREW-HSBH

$1.99

$

In Stock, only 1 left!

0

15

Toro 144-1773

HOOD

$785.99

$

Usually ships in 3-6 days

0

17

Toro 147-3221

ACCESS PANEL ASM, RH

$312.99

$

Usually ships in 3-6 days

0

17:2

Toro 145-1175

DECAL-SERVICE, SHUT-OFF

$9.99

$

Usually ships in 3-6 days

0

18

Toro 144-1735-03

COVER-ACCESS, BMS

$107.99

$

Usually ships in 3-6 days

0

19

Toro 144-1774-03

BRACKET-HOOD

$25.99

$

Usually ships in 3-6 days

0

20

Toro 145-1172

DECAL-HYPERCELL

$9.49

$

Usually ships in 3-6 days

0

21

Toro 147-3208-03

BRACKET-DISCONNECT [BLACK]

$

$

Not available

22

Toro 145-1171

DECAL-E2500

$7.99

$

Usually ships in 3-6 days

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 147-3203-03

PLATE-LOGO

$

$

Not available

25

Toro 145-1184

DECAL-BACKER, RED

$5.49

$

Usually ships in 3-6 days

0

26

Toro 3269-28

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

28

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 10

0

29

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0
