68037 (e2500) - Toro Electric Ultra Buggy (SN: 414865903 - 415399999) Tub Assembly Parts Diagram

Electric Ultra Buggy

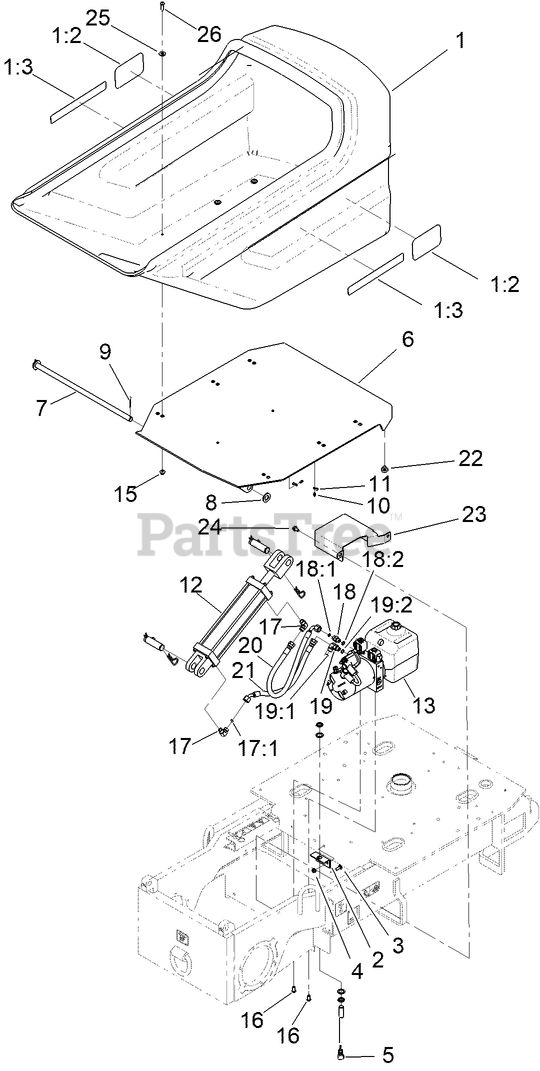

Tub Assembly Parts Diagram

  • Title

1

Toro 144-1762

MORTAR HOPPER ASM

$1495.99

$

Usually ships in 0 days

0

1:2

Toro 105-1217

DECAL

$43.99

$

In Stock, Qty 8

0

1:3

Toro 139-7237

DECAL - E-MUD BUGGY

$5.99

$

Usually ships in 0 days

0

2

Toro 144-1706

BRACKET-SWITCH

$6.49

$

Usually ships in 0 days

0

3

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 139-7238

SENSOR-PROXIMITY, N.O.

$187.99

$

Usually ships in 3-6 days

0

6

Toro 144-1698-03

DUMP BIN FRAME ASM-WELDED

$

$

Not available

7

Toro 144-1709

SHAFT-DUMP PIVOT

$74.99

$

Usually ships in 3-6 days

0

8

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

9

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 7

0

10

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

11

Toro ST47001

CAP-PLUG

$0.99

$

In Stock, Qty 10

0

12

Toro ST50501

HYD CYLINDER ASM

$804.99

$

Usually ships in 3-6 days

0

13

Toro 144-1716

PUMP UNIT-48 VDC

$2798.99

$

Usually ships in 0 days

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3274-80

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

17

Toro 340-112

FITTING-ELBOW, 90

$54.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 3 left!

0

18

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

18:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 3 left!

0

18:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

19

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 3 left!

0

19:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

20

Toro 144-1736

HOSE ASM-HYD

$85.99

$

Usually ships in 3-6 days

0

21

Toro 144-1737

HOSE ASM-HYD

$88.99

$

Usually ships in 3-6 days

0

22

Toro 140-3460

BUMPER-RUBBER

$1.49

$

Usually ships in 3-6 days

0

23

Toro 147-3217-03

COVER-CONTACTOR

$67.99

$

Usually ships in 0 days

0

24

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

25

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

26

Toro 3274-63

SCREW-HSBH

$4.99

$

In Stock, only 1 left!

0
