68042 (VIB-2) - Toro Concrete Vibrator (SN: 313000001 - 313999999) (2013) 2.0 VIBRATORY ASSEMBLY Parts Diagram

Concrete Vibrator

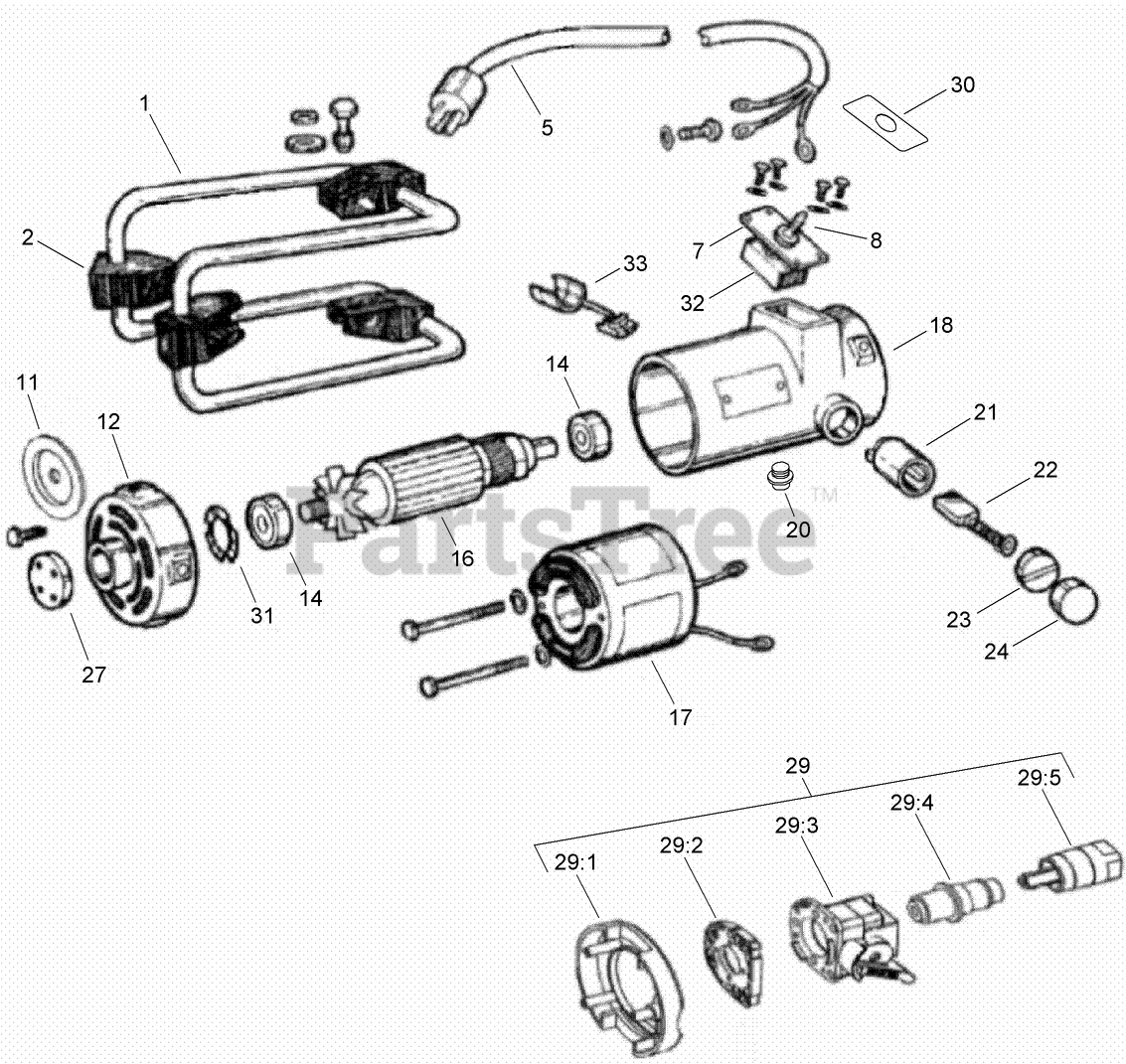

2.0 VIBRATORY ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5649

FRAME ASM

$265.99

$

Usually ships in 3-6 days

0

2

Toro 127-5663

MOUNT-SHOCK

$43.99

$

Usually ships in 3-6 days

0

5

Toro 127-5664

CORD ASM

$163.99

$

Usually ships in 3-6 days

0

7

Toro 127-5504

SWITCH PLATE ASM

$34.99

$

Usually ships in 3-6 days

0

8

Toro 127-5625

BOOT-RUBBER, SWITCH

$40.99

$

Usually ships in 3-6 days

0

11

Toro 127-5650

BAFFLE ASM

$40.99

$

Usually ships in 3-6 days

0

12

Toro 127-5651

BELL-END

$

$

Currently unavailable

14

Toro 127-5652

BEARING

$79.99

$

Usually ships in 3-6 days

0

16

Toro 127-5665

ARMATURE (115V)

$596.99

$

Usually ships in 3-6 days

0

17

Toro 127-5666

FIELD (115V)

$466.99

$

Usually ships in 3-6 days

0

18

Toro 127-5656

HOUSING

$539.99

$

Usually ships in 3-6 days

0

20

Toro 127-5634

PLUG-PORT, ACCESS

$13.99

$

Usually ships in 3-6 days

0

21

Toro 127-5657

HOLDER-BRUSH

$58.99

$

Usually ships in 3-6 days

0

22

Toro 127-5658

BRUSH

$37.99

$

Usually ships in 3-6 days

0

23

Toro 127-5659

SCREW-CAP

$16.99

$

Usually ships in 3-6 days

0

24

Toro 127-5660

CAP-THREADED, PROTECTIVE

$20.99

$

Usually ships in 3-6 days

0

27

Toro 127-5641

COVER

$29.99

$

Usually ships in 3-6 days

0

29

Toro 127-5583

QUICK DISCONNECT KIT

$

$

Currently unavailable

29:1

Toro ST63856

BAFFLE-RH

$54.99

$

Usually ships in 3-6 days

0

29:2

Toro ST63858

SPACER

$44.99

$

Usually ships in 3-6 days

0

29:3

Toro ST63859

CASING-ADAPTOR

$88.99

$

Usually ships in 3-6 days

0

29:4

Toro ST63860

CORE ADAPTOR ASM

$93.99

$

Usually ships in 3-6 days

0

29:5

Toro ST30428

COUPLER-SHAFT

$24.99

$

Usually ships in 3-6 days

0

30

Toro 125-8195

DECAL-SWITCH PLATE

$

$

Currently unavailable

31

Toro ST35856

RING-TOLERANCE

$6.99

$

Usually ships in 3-6 days

0

32

Toro 127-5499

KILL SWITCH ASM

$

$

Not available

33

Toro 127-5502

STRAIN RELIEF ASM

$77.99

$

Usually ships in 3-6 days

0
