68048 (PT-36) - Toro Power Trowel (SN: 413000000 - 999999999) Engine Assembly Parts Diagram

Power Trowel

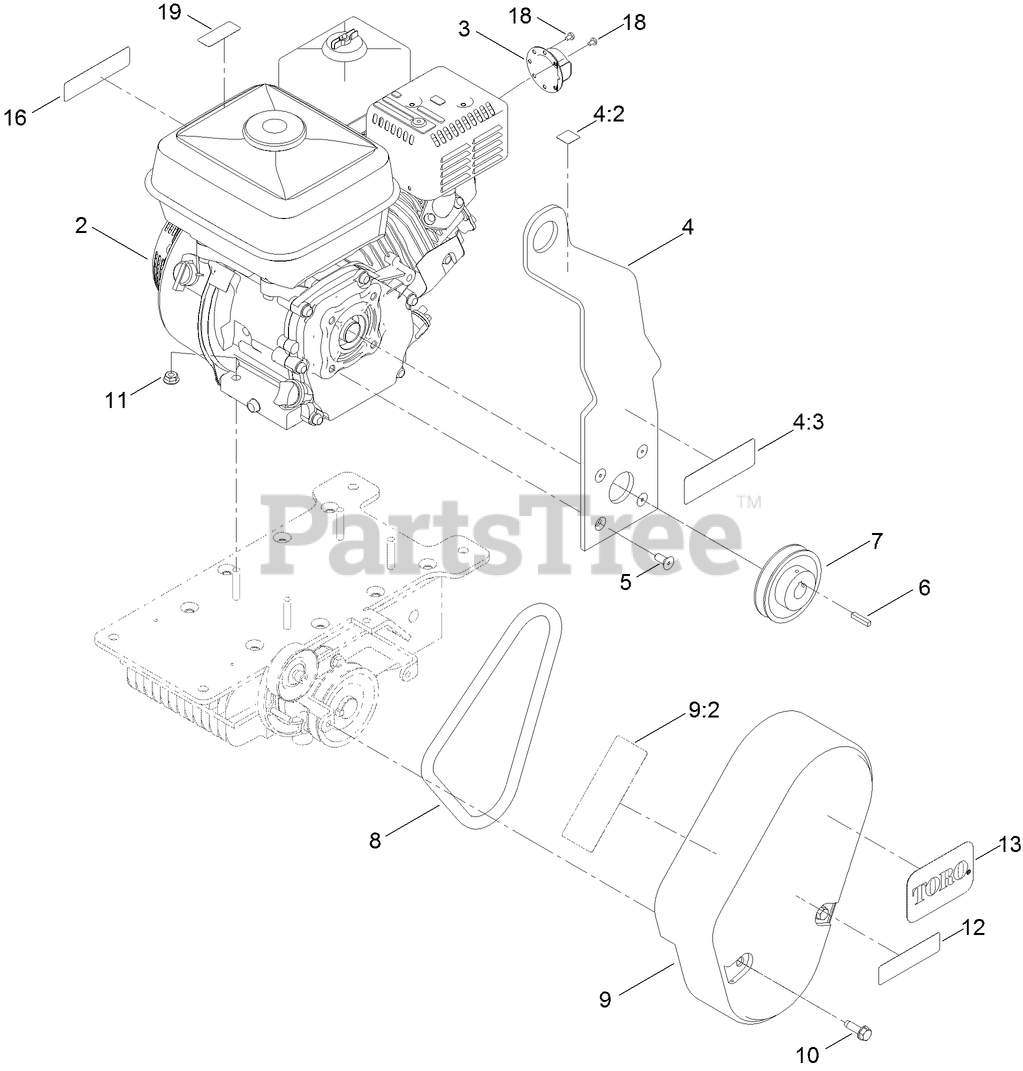

Engine Assembly Parts Diagram

  • Title

2

ENGINE-HONDA, GX160

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

ENGINE-HONDA, GX160

Note: Not serviced separately

$

$

Not available

3

Toro 125-3866

DEFLECTOR

$45.99

$

Usually ships in 3-6 days

0

4

Toro 127-5585

PLATE-EYE, LIFT

$94.99

$

Usually ships in 3-6 days

0

4:2

Toro 93-9084

DECAL-POINT, LIFT

$8.99

$

Usually ships in 3-6 days

0

4:3

Toro 117-4979

DECAL-WARNING

$15.99

$

Usually ships in 3-6 days

0

5

Toro ST80171

SCREW

$3.99

$

Usually ships in 3-6 days

0

6

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, Qty 14

0

7

Toro ST34833

SHEAVE

$61.99

$

Usually ships in 3-6 days

0

8

Toro ST35331

BELT-V

$80.99

$

Usually ships in 3-6 days

0

9

Toro 127-2801

BELT GUARD ASM

$251.99

$

Usually ships in 3-6 days

0

9:2

Toro 125-4933

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

10

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

11

Toro 32128-26

NUT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

12

Toro 125-4931

DECAL

$8.49

$

Usually ships in 3-6 days

0

13

Toro 105-6971

DECAL

$9.49

$

In Stock, only 2 left!

0

16

Toro 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

18

Toro 125-0519

SCREW-SELF TAPPING

$1.99

$

In Stock, only 2 left!

0

19

Toro 130-8322

DECAL-WARNING, ETHANOL

$2.49

$

Usually ships in 3-6 days

0
