68049 (PT-36 PP) - Toro Power Trowel (SN: 315000001 - 315999999) (2015) ENGINE, BELT AND GUARD ASSEMBLY Parts Diagram

Power Trowel

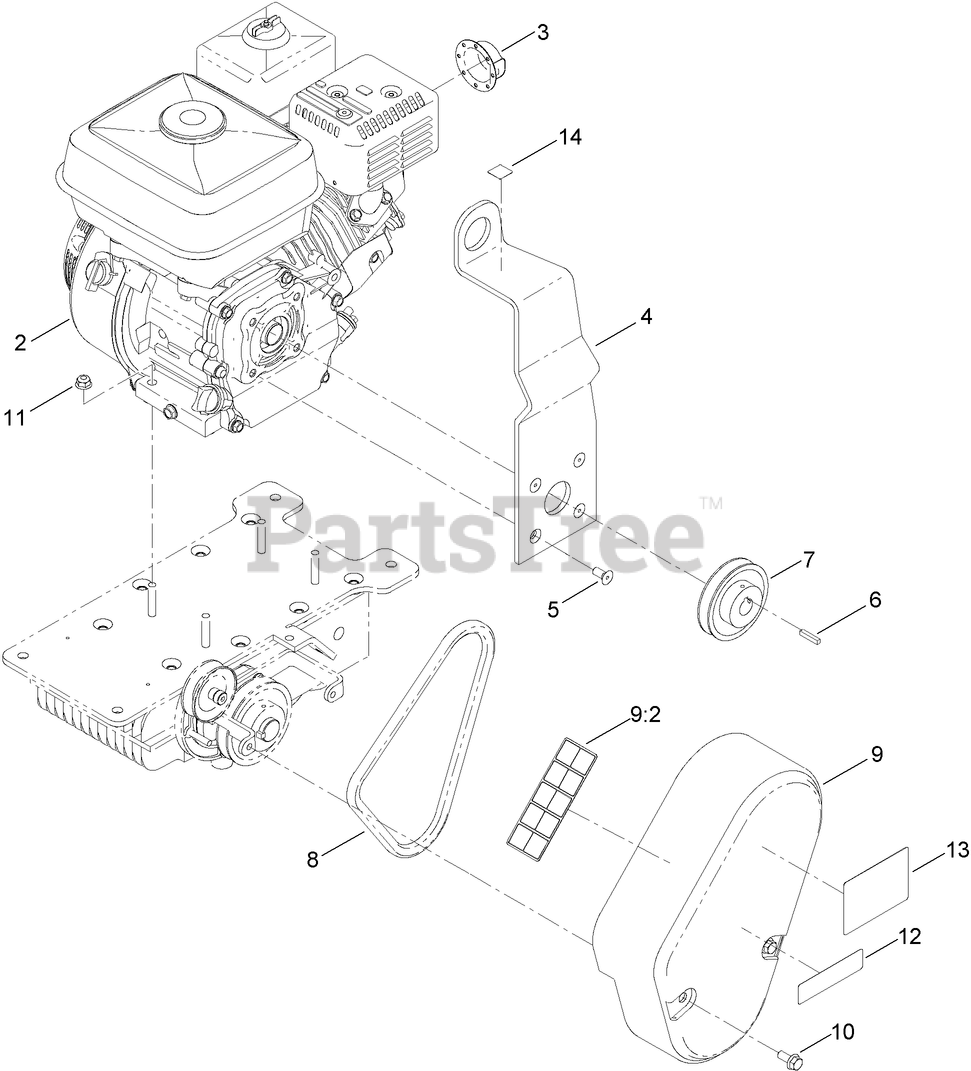

ENGINE, BELT AND GUARD ASSEMBLY Parts Diagram

  • Title

2

Toro 125-4813

ENGINE-HONDA, GX160

Note: Obtain parts from www.honda-engines.com

$1328.99

$

Usually ships in 3-6 days

0

3

Toro ST30166

DEFLECTOR-EXHAUST
(Superseded to 125-3866)

$45.99

$

Usually ships in 3-6 days

0

4

Toro ST28318-01

PLATE-EYE, LIFT
(Superseded to 127-5585)

$94.99

$

Usually ships in 3-6 days

0

5

Toro ST80171

SCREW

$3.99

$

Usually ships in 3-6 days

0

6

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, Qty 14

0

7

Toro ST34833

SHEAVE

$61.99

$

Usually ships in 3-6 days

0

8

Toro ST35331

BELT-V

$80.99

$

Usually ships in 3-6 days

0

9

Toro 127-2801

BELT GUARD ASM

$251.99

$

Usually ships in 3-6 days

0

9:2

Toro 125-4933

DECAL-WARNING, POWER TROWEL

$6.49

$

Usually ships in 3-6 days

0

10

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 125-4931

DECAL

$8.49

$

Usually ships in 3-6 days

0

13

Toro 105-6971

DECAL

$9.49

$

In Stock, only 2 left!

0

14

Toro 93-9084

DECAL-POINT, LIFT

$8.99

$

Usually ships in 3-6 days

0
