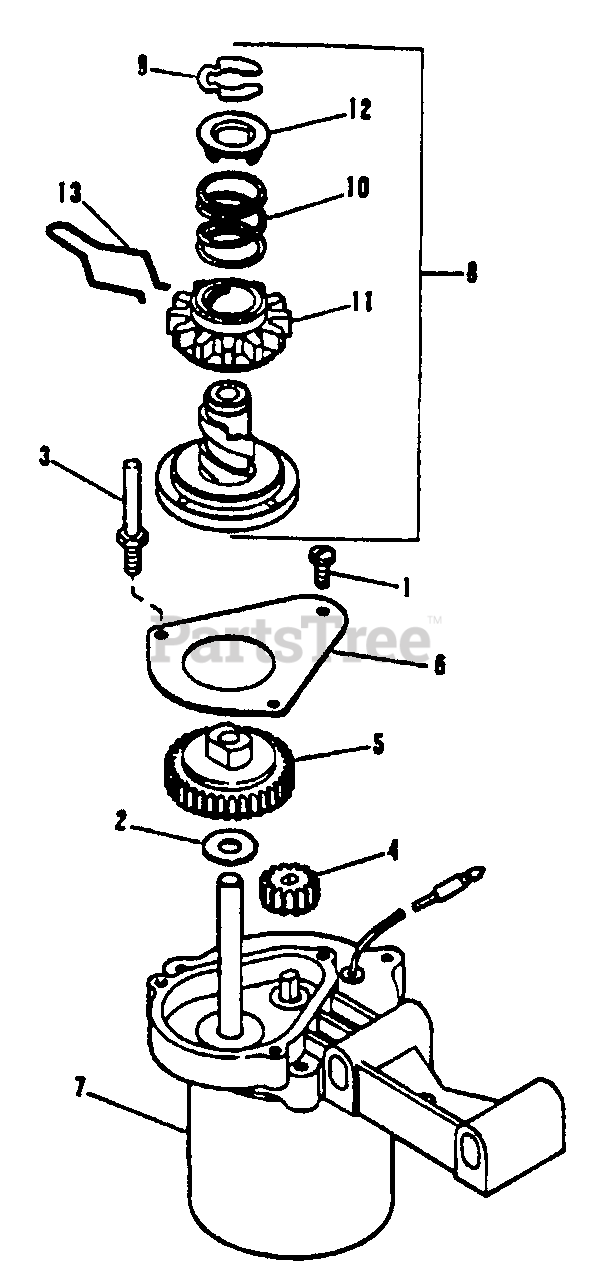

680503 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) ELECTRIC STARTER MODEL: 680503 Parts Diagram

Walk-Behind Mower

ELECTRIC STARTER MODEL: 680503 Parts Diagram

  • Title

Lawn-Boy 684288

Starter & Spring Kit (Inc. 1-13)

Note: Important Note: Replacement parts may not always be available in matching colors.

$791.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 609130

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 609568

Washer-Thrust
(Superseded to 252-98)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 613290

Stud-Drag Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 613291

Pinion

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613292

Gear-Driven

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 613517

Plate Gear Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 684095

Motor Housing & Pin Assy
(Superseded to 684288)

Note: Important Note: Replacement parts may not always be available in matching colors.

$791.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 684097

Pinion, Spring & Clutch Assy (Inc. 9-13)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 608622

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 610257

Spring-Pinion

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 613295

Pinion

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 613451

Stop Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 613297

Spring-Drag

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

0
