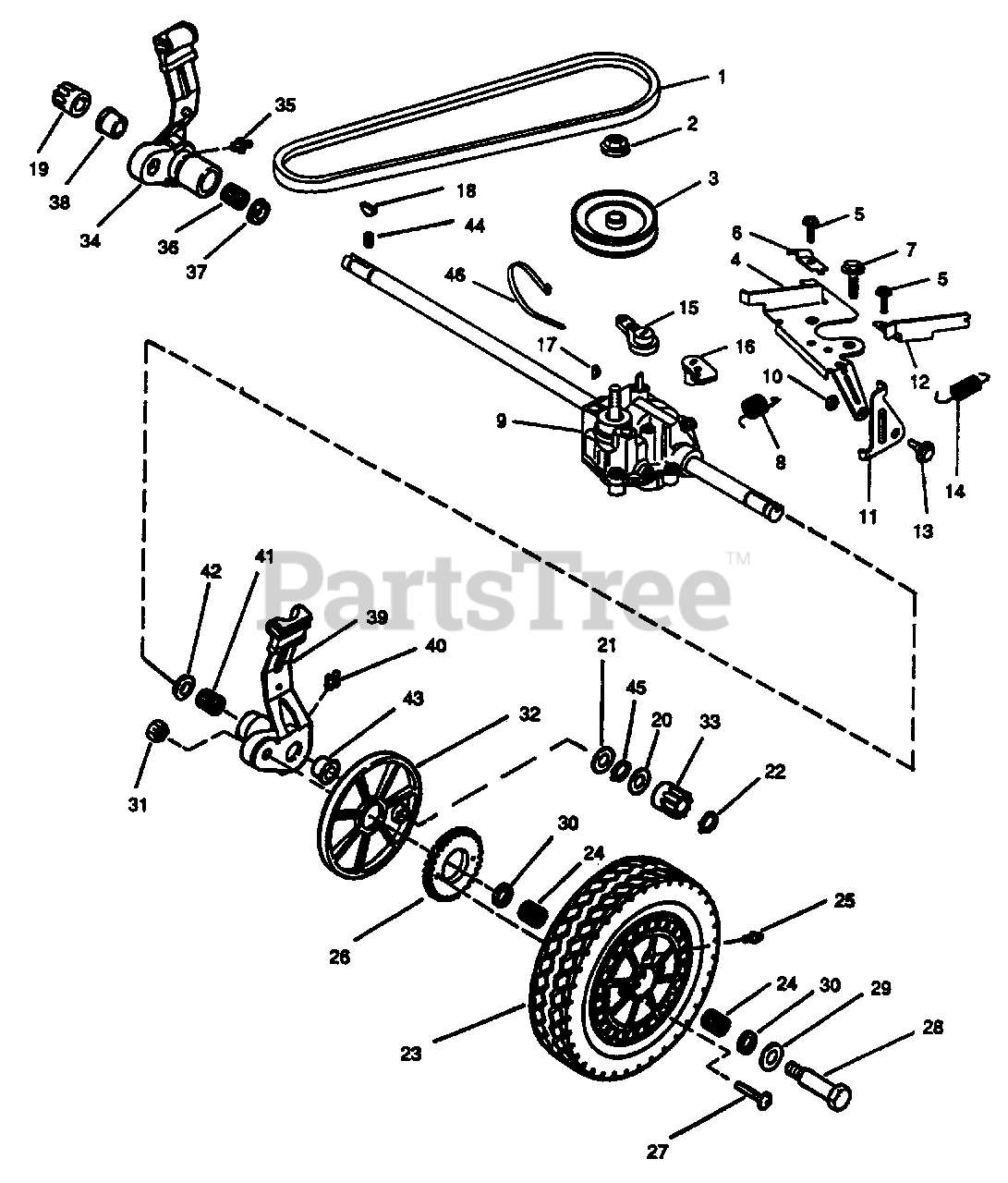

680523 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) DRIVE MODEL: 680523 Parts Diagram

Walk-Behind Mower

DRIVE MODEL: 680523 Parts Diagram

  • Title

1

Lawn-Boy 613830

V-Belt

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 613770

Locknut
(Superseded to 95-1579)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 613445

Transmission Pulley

Note: Important note: Replacement parts may not always be available in matching colors.

$95.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 614524

Actuator Plate

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613387

Screw

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 613385

Clamp

Note: Important note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 146134

Screw-Plate to Transmission

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 614525

Spring

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684129

Transmission

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 603773

Nut

Note: Important note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 614523

Arm-Transmission Engagement

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 614526

Guide-Bell

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 614527

Shoulder Bolt

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 614529

Spring-Extension

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 614316

Arm-Shift

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 614317

Arm-Clutch

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611840

Key

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 612066

Key-Pinion to Shaft

Note: Important note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 613355

Drive Pinion R.H.

Note: Important note: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 608030

Thrust Washer

Note: Important note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 611878

Thrust Washer

Note: Important note: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 603147

Retaining Ring

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 684575

Wheel & Bearing Assy (Inc. 24-27)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 608286

Needle Bearing
(Superseded to 117-3500)

Note: Important note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 611831

Grease Fitting

Note: Important note: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 614266

Gear

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 614267

Screw-Gear to Wheel

Note: Important note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 614139

Shoulder Bolt-Rear Wheel

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 605256

Flat Washer

Note: Important note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 9

0

30

Lawn-Boy 605255

Felt Washer

Note: Important note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 603773

Nut-Wheel to Height Adjust Arm

Note: Important note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 613869

Wheel Cover

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 613356

Drive Pinion-L.H.

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 684482

Height Adjust Arm-R.H. (Inc. 35-38)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 603615

Grease Fitting

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 608286

Needle Bearing
(Superseded to 117-3500)

Note: Important note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 611824

Seal

Note: Important note: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 614029

Flange Bearing
(Superseded to 684525)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684523

Spring Arm & Knob w/Flange Bearing Kit-R.H.

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 684483

Height Adjust Arm-L.H. (Inc. 40-43)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 603615

Grease Fitting

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 608286

Needle Bearing
(Superseded to 117-3500)

Note: Important note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

42

Lawn-Boy 611824

Seal

Note: Important note: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 614029

Flange Bearing
(Superseded to 684525)

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684524

Spring Arm & Knob w/Flange Bearing Kit-L.H.

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 612067

Spring-Pinion Key

Note: Important note: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

45

Lawn-Boy 607676

Retaining Ring

Note: Important note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 8

0

46

Lawn-Boy 613911

Tie Strap

Note: Important note: Replacement parts may not always be available in matching colors.

$

$

Not available
