680538 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) B & S ENGINE MODELS: 680538 Parts Diagram

Walk-Behind Mower

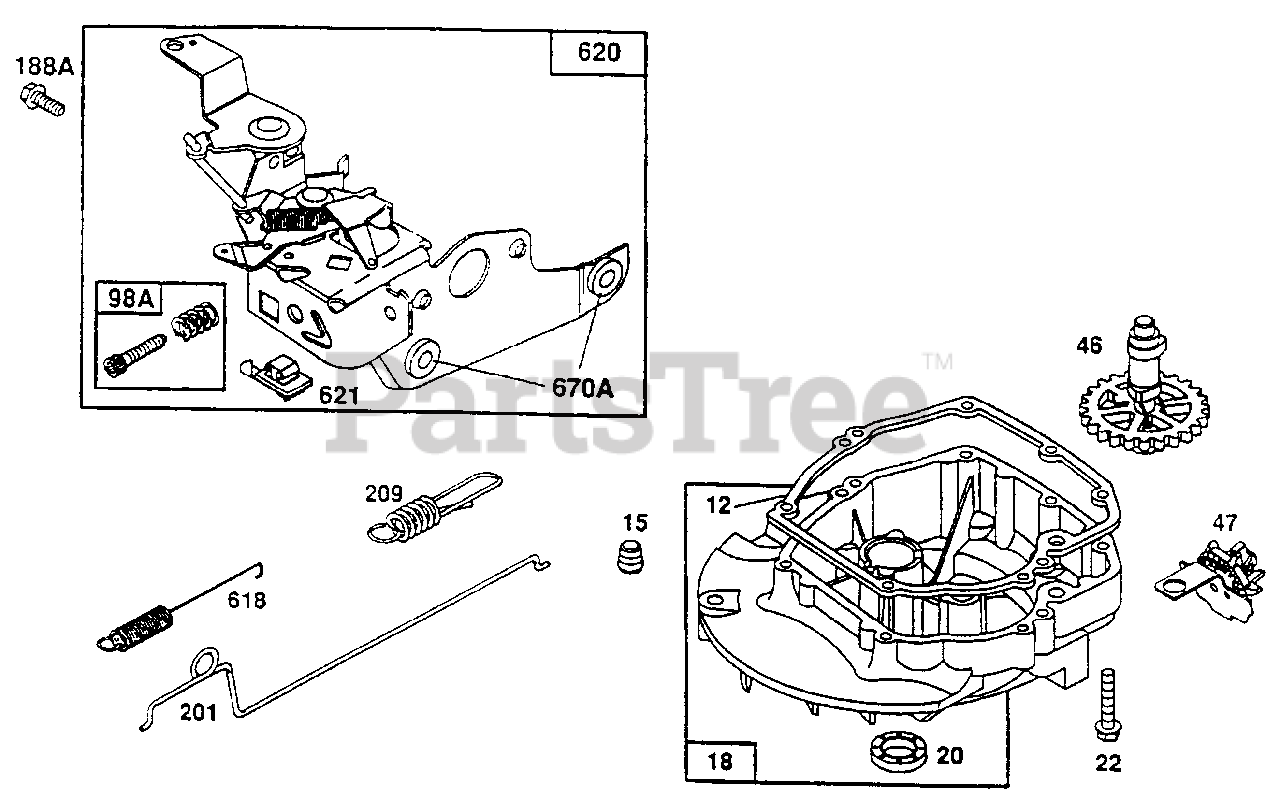

B & S ENGINE MODELS: 680538 Parts Diagram

  • Title

12

Lawn-Boy 272198

Gasket-Crankcase

$

$

Currently unavailable

15

Lawn-Boy 93418

Plug-Oil Drain

$

$

Currently unavailable

18

Lawn-Boy 493279

Sump-Engine

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

$

$

Currently unavailable

22

Lawn-Boy 94220

Screw-Sump Mtg.

$

$

Currently unavailable

Lawn-Boy 94612

Screw Near Breather

$

$

Currently unavailable

46

Lawn-Boy 492830

Gear-Cam

$

$

Currently unavailable

47

Lawn-Boy 493737

Oil Slinger Gear

$

$

Currently unavailable

91

Lawn-Boy 684720

Height Adj. Ass'y L.H. (Inc. 89-90)(Self Propelled)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

98A

Lawn-Boy 493280

Screw Assy.

$

$

Currently unavailable

188A

Lawn-Boy 94644

Screw-Hex. Hd.

$

$

Currently unavailable

201

Lawn-Boy 262579

Link-Governor

$

$

Currently unavailable

209

Lawn-Boy 262666

Spring-Governor

$

$

Currently unavailable

618

Lawn-Boy 262749

Spring-Choke Return

$

$

Currently unavailable

620

Lawn-Boy 493894

Bracket Assembly

$

$

Currently unavailable

670A

Lawn-Boy 493823

Spacer-Carb Bracket

$

$

Currently unavailable
