680538 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) B & S ENGINE MODELS: 680538 Parts Diagram

Walk-Behind Mower

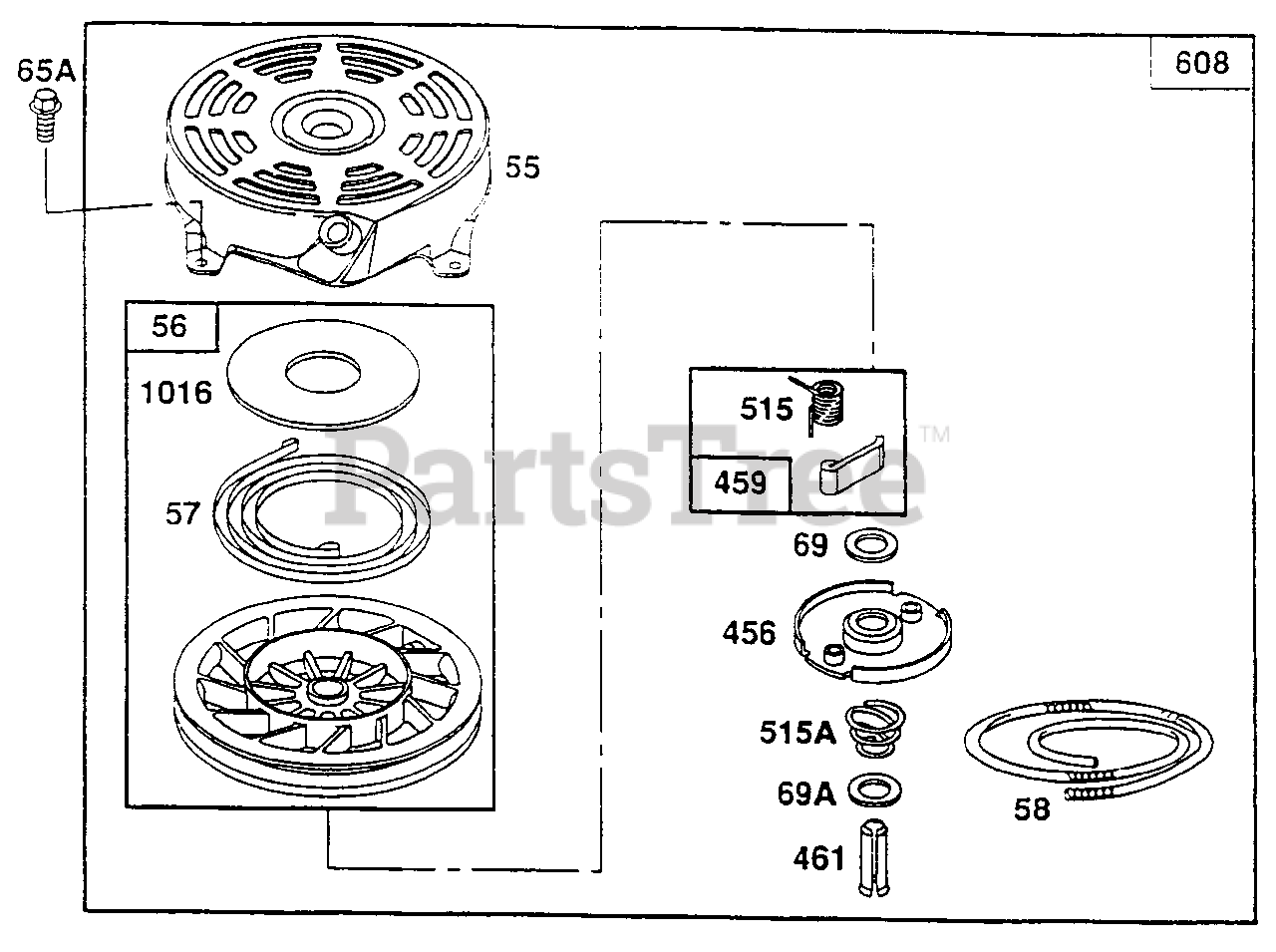

B & S ENGINE MODELS: 680538 Parts Diagram

  • Title

55

Lawn-Boy 492831

Housing-Starter

$

$

Currently unavailable

56

Lawn-Boy 492832

Pulley-Starter

$

$

Currently unavailable

57

Lawn-Boy 262594

Spring-Starter

$

$

Currently unavailable

58

Lawn-Boy 280399

Rope

$

$

Currently unavailable

65A

Lawn-Boy 94579

Screw-Rewind Mtg.

$

$

Currently unavailable

69

Lawn-Boy 280973

Washer-starter

$

$

Currently unavailable

69A

Lawn-Boy 224322

Washer-Starter

$

$

Currently unavailable

91

Lawn-Boy 684720

Height Adj. Ass'y L.H. (Inc. 89-90)(Self Propelled)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

456

Lawn-Boy 224321

Retainer-Starter

$

$

Currently unavailable

459

Lawn-Boy 492833

Pawl-Starter

$

$

Currently unavailable

461

Lawn-Boy 262626

Pin-Starter

$

$

Currently unavailable

515

Lawn-Boy 262556

Spring-Pawl

$

$

Currently unavailable

515A

Lawn-Boy 262625

Spring-Torsion

$

$

Currently unavailable

608

Lawn-Boy 493295

Starter Assy. Inc:

$

$

Currently unavailable

Lawn-Boy 94128

Screw-Hex. Hd.

$

$

Currently unavailable

Lawn-Boy 93987

Nut-Hex.

$

$

Currently unavailable
