680538 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) PUSH MODEL: 680538 Parts Diagram

Walk-Behind Mower

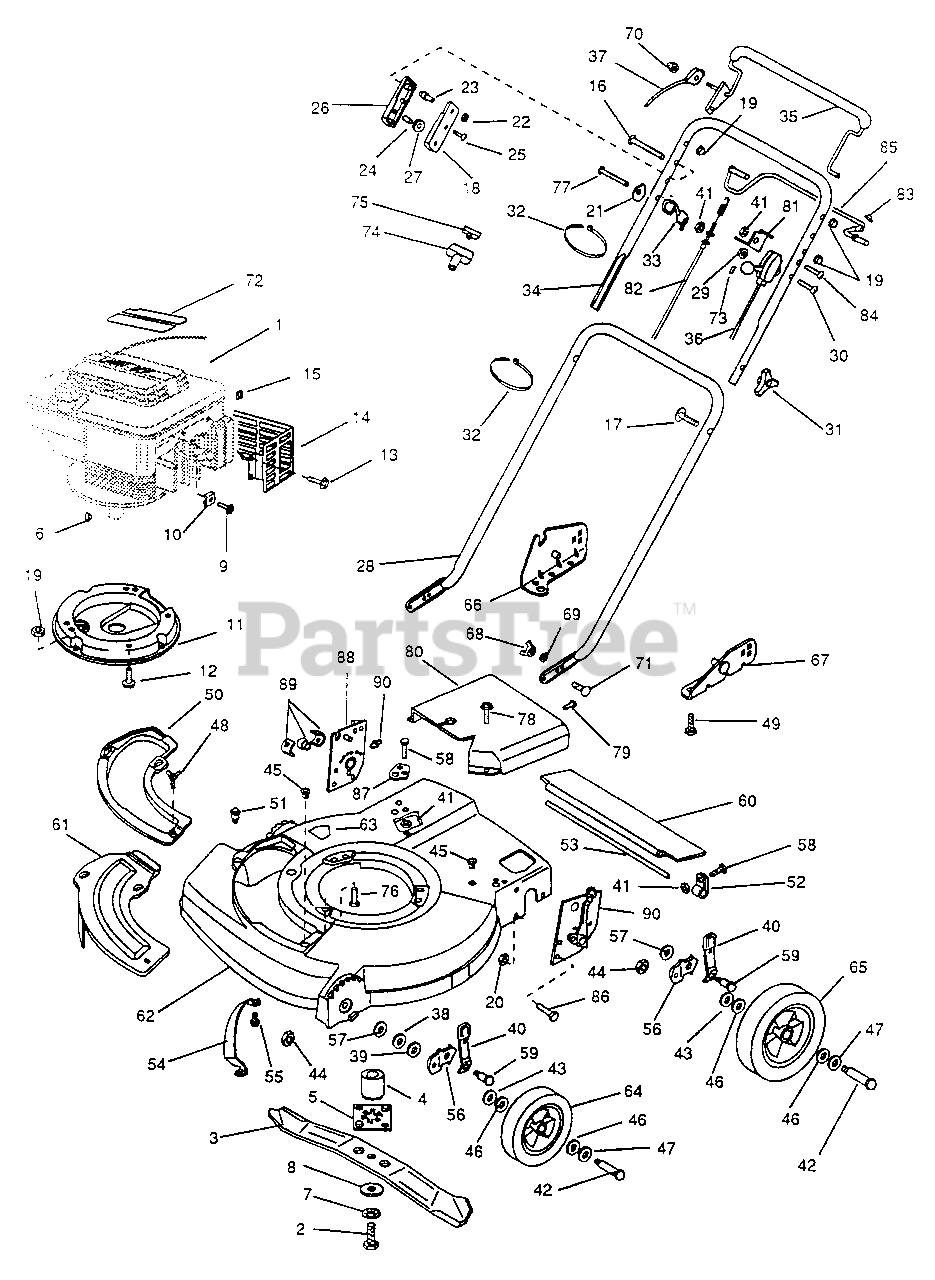

PUSH MODEL: 680538 Parts Diagram

  • Title

1

Engine B & S 126702-3192-01

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

2

Lawn-Boy 145557

Bolt-Blade

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

3

Lawn-Boy 153405

Blade-21"
(Superseded to 146040-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

4

Lawn-Boy 146044

Hub-Blade Driver

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

5

Lawn-Boy 146046

Plate-Blade Driver

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

6

Lawn-Boy 551041

Key, Woodruff (Push)
(Superseded to 607199)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$4.99

$

In Stock, Qty 12

0

7

Lawn-Boy 605339

Lock Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

8

Lawn-Boy 614385

Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$2.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 613387

Screw, Hex Hd.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

10

Lawn-Boy 613388

Clamp
(Superseded to 2210-249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 614429

Plate-Engine Mounting

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

12

Lawn-Boy 32144-102

Screw-Thread Forming

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.49

$

In Stock, Qty 5

0

13

Lawn-Boy 684659

Screw-Hex Washer Hd.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

14

Lawn-Boy 684659

Shield Assembly-Muffler

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

15

Lawn-Boy 702366

Clip-Wire Retainer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$7.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 145289

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

17

Lawn-Boy 145498

Screw
(Superseded to 614697)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$2.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 146050

Case-Inner
(Superseded to 153702)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

19

Lawn-Boy 605546

Pushnut (Push)
(Superseded to 32112-11)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$1.49

$

In Stock, Qty 16

0

20

Lawn-Boy 608311

Locknut (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$2.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 609739

Washer-Curved

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.49

$

In Stock, Qty 10

0

22

Lawn-Boy 611258

Nut, Hex Centerlock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 611541

Column

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$12.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 611542

Pin

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 611543

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 611777

Control Case

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$27.99

$

In Stock, only 1 left!

0

27

Lawn-Boy 612564

Pulley

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$5.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 613048

Handle Section-Lower
(Superseded to 92-2920-05)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$128.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 613406

Locknut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

30

Lawn-Boy 613555

Screw-Truss hd.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

31

Lawn-Boy 614243

Knob-Handle
(Superseded to 98-7134)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$2.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 614249

Tie Strap (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$1.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 46-8080

Rope Guide
(Superseded to 86-9671)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$4.49

$

In Stock, Qty 16

0

34

Lawn-Boy 614516

Handle Section-Upper

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

35

Lawn-Boy 683478

Control Lever Assembly

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$138.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 684693

Cable Assembly-Throttle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

37

Lawn-Boy 684694

Cable Assembly-Brake

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$66.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 146014

Washer-Shim

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

39

Lawn-Boy 146015

Washer-Shim

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.49

$

Usually ships in 3-6 days

0

40

Lawn-Boy 153444

Knob & Spring Ass'y (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

41

Lawn-Boy 602315

Locknut (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$4.49

$

In Stock, only 2 left!

0

42

Lawn-Boy 603441

Wheel Bolt (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$7.99

$

In Stock, Qty 20+

0

43

Lawn-Boy 603620

Washer (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$5.49

$

In Stock, Qty 20+

0

44

Lawn-Boy 603773

Nut (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$2.99

$

In Stock, Qty 20+

0

45

Lawn-Boy 604604

Grommet-Plastic (Push)
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$0.99

$

In Stock, Qty 20+

0

46

Lawn-Boy 605255

Washer-Felt (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$1.49

$

In Stock, Qty 20+

0

47

Lawn-Boy 605256

Washer (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$2.99

$

In Stock, Qty 7

0

48

Lawn-Boy 606733

Wing Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$8.99

$

In Stock, Qty 7

0

49

Lawn-Boy 607188

Screw (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.49

$

In Stock, only 3 left!

0

50

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$30.99

$

In Stock, only 2 left!

0

51

Lawn-Boy 607809

Screw-Sems
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.99

$

In Stock, Qty 20+

0

52

Lawn-Boy 608161

Clamp-Rod (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$10.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 608174

Rod (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

54

Lawn-Boy 608175

Toe Bar

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$75.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.49

$

In Stock, Qty 7

0

56

Lawn-Boy 608833

Bracket-Wheel (Push)
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$22.99

$

In Stock, only 1 left!

0

57

Lawn-Boy 608834

Washer (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$15.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

59

Lawn-Boy 610646

Shoulder Bolt (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$6.49

$

Usually ships in 3-6 days

0

60

Lawn-Boy 611015

Trailing Shield (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

61

Lawn-Boy 684706

Mulch Plate
(Superseded to 92-8630)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

62

Lawn-Boy 684522

Housing (Inc. 63)(Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$618.99

$

In Stock, only 1 left!

0

63

Lawn-Boy 612284

Decal-Warning
(Superseded to 56-6270)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$8.49

$

Usually ships in 3-6 days

0

64

Lawn-Boy 678636

Wheel Ass'y (Push)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$25.99

$

In Stock, Qty 5

0

65

Lawn-Boy 682974

Wheel Ass'y-Rear (Push)
(Superseded to 131-4520)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$33.99

$

In Stock, only 3 left!

0

66

Lawn-Boy 684057

Bracket Assembly-R.H. (Push)
(Superseded to 684057-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

67

Lawn-Boy 684058

Bracket Assembly-L.H. (Push)
(Superseded to 684058-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$70.99

$

Usually ships in 3-6 days

0

68

Lawn-Boy 145577

Wing Nut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$1.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 146258

Lock Washer
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$0.99

$

In Stock, Qty 20+

0

70

Lawn-Boy 612168

Acorn Nut

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$17.99

$

Usually ships in 3-6 days

0

71

Lawn-Boy 800358

Screw-Carriage
(Superseded to 3230-22)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$2.49

$

In Stock, Qty 20+

0

72

Lawn-Boy 614573

Decal-Recoil

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

73

Lawn-Boy 614561

Decal-Throttle Control

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available

74

Lawn-Boy 612825

Starter Handle
(Superseded to 81-1630)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$18.99

$

In Stock, Qty 6

0

75

Lawn-Boy 612824

Clip-Starter Handle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.99

$

In Stock, Qty 13

0

76

Lawn-Boy 607601

Capscrew

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$3.99

$

In Stock, Qty 5

0

77

Lawn-Boy 611233

Screw, Rope Guide

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: Parts are the same for all models except where specifically identified.

$

$

Not available
