68054 (VS-70) - Toro Screed (SN: 313000001 - 313999999) (2013) VS-70 SCREED ASSEMBLY Parts Diagram

Screed

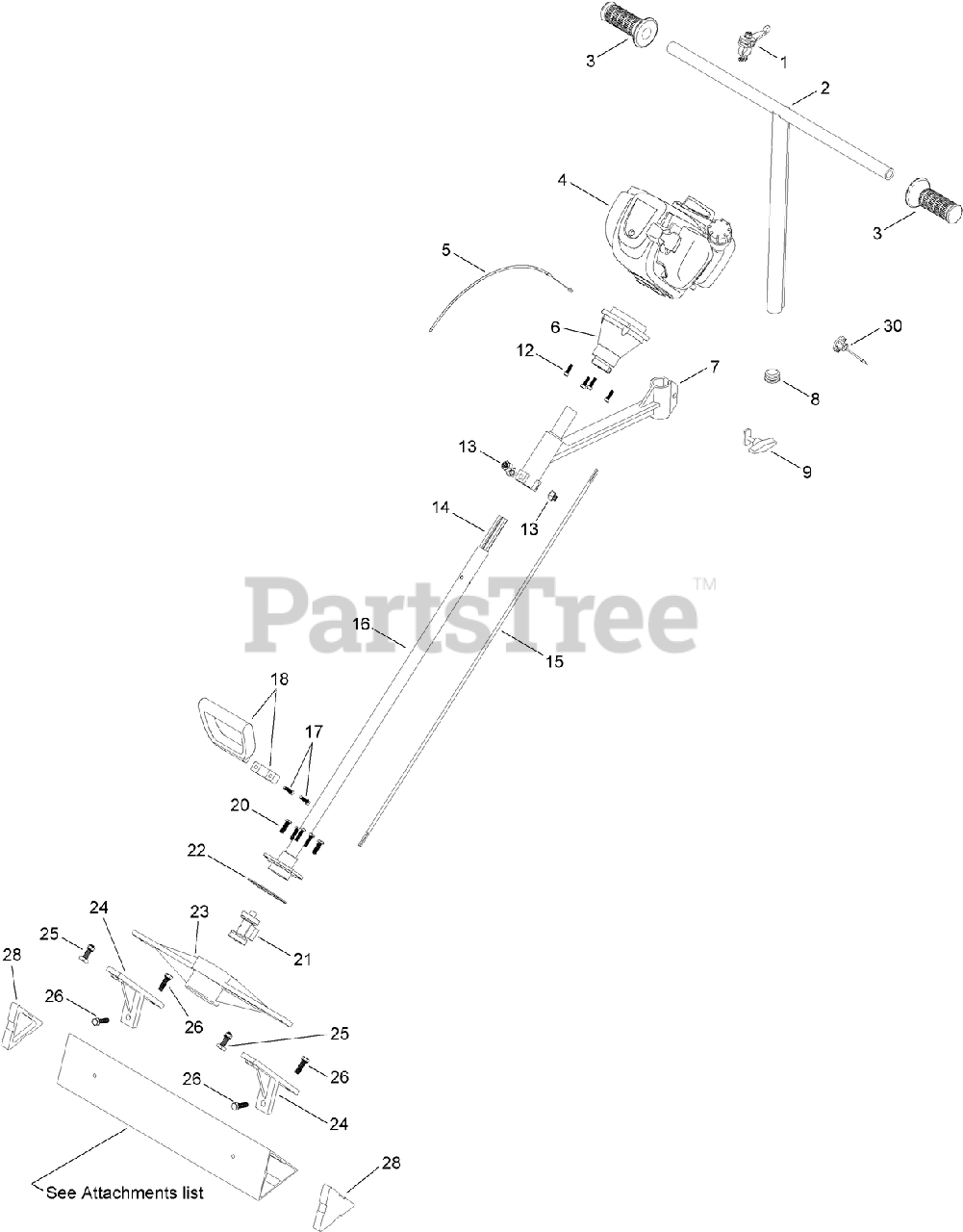

VS-70 SCREED ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5472

THROTTLE LEVER ASM

$

$

Not available

2

Toro 127-5473

T BAR ASM

$437.99

$

Usually ships in 3-6 days

0

3

Toro 127-5474

GRIP-T BAR

$37.99

$

Usually ships in 3-6 days

0

4

Toro 127-5475

ENGINE-HONDA

$

$

Currently unavailable

5

Toro 127-5476

CABLE-THROTTLE

$92.99

$

Usually ships in 3-6 days

0

6

Toro 127-5477

CLUTCH

$335.99

$

Usually ships in 3-6 days

0

7

Toro 127-5478

MOUNT-UPPER

$1328.99

$

Usually ships in 3-6 days

0

8

Toro 127-5479

PLUG-CAP, T BAR

$13.99

$

Usually ships in 3-6 days

0

9

Toro 127-5480

KNOB ASM

$

$

Not available

12

Toro 127-5483

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

13

Toro 127-5484

SET SCREW ASM (W/JAM NUTS)

$26.99

$

Usually ships in 3-6 days

0

14

Toro 127-5485

LINER-STAR

$174.99

$

Usually ships in 3-6 days

0

15

Toro 127-5486

SHAFT-DRIVE, FLEX

$174.99

$

Usually ships in 3-6 days

0

16

Toro 127-5487

TUBE-OUTER (W/RACE)

$1020.99

$

Usually ships in 3-6 days

0

17

Toro 127-5488

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

18

Toro 127-5489

GRIP HANDLE ASM

$145.99

$

Usually ships in 3-6 days

0

20

Toro 127-5490

SCREW-HH

$20.99

$

Usually ships in 3-6 days

0

21

Toro 127-5491

WEIGHT AND SHAFT ASM

$874.99

$

Usually ships in 3-6 days

0

22

Toro 127-5492

GASKET-OIL

$43.99

$

Usually ships in 3-6 days

0

23

Toro 127-5493

LOWER CASTING ASM

$1166.99

$

Usually ships in 3-6 days

0

24

Toro 127-5494

CLAMP-SADDLE

$116.99

$

Usually ships in 3-6 days

0

25

Toro 127-5495

BAR BOLT ASM (SADDLE CLAMP)

$24.99

$

Usually ships in 3-6 days

0

26

Toro 127-5496

BOLT

$27.99

$

Usually ships in 3-6 days

0

28

Toro 127-5497

CAP-END, BAR

$

$

Not available

30

Toro 127-5498

KILL SWITCH ASM

$132.99

$

Usually ships in 3-6 days

0
