680545 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) HOUSING AND SHROUD MODEL: 680545 Parts Diagram

Walk-Behind Mower

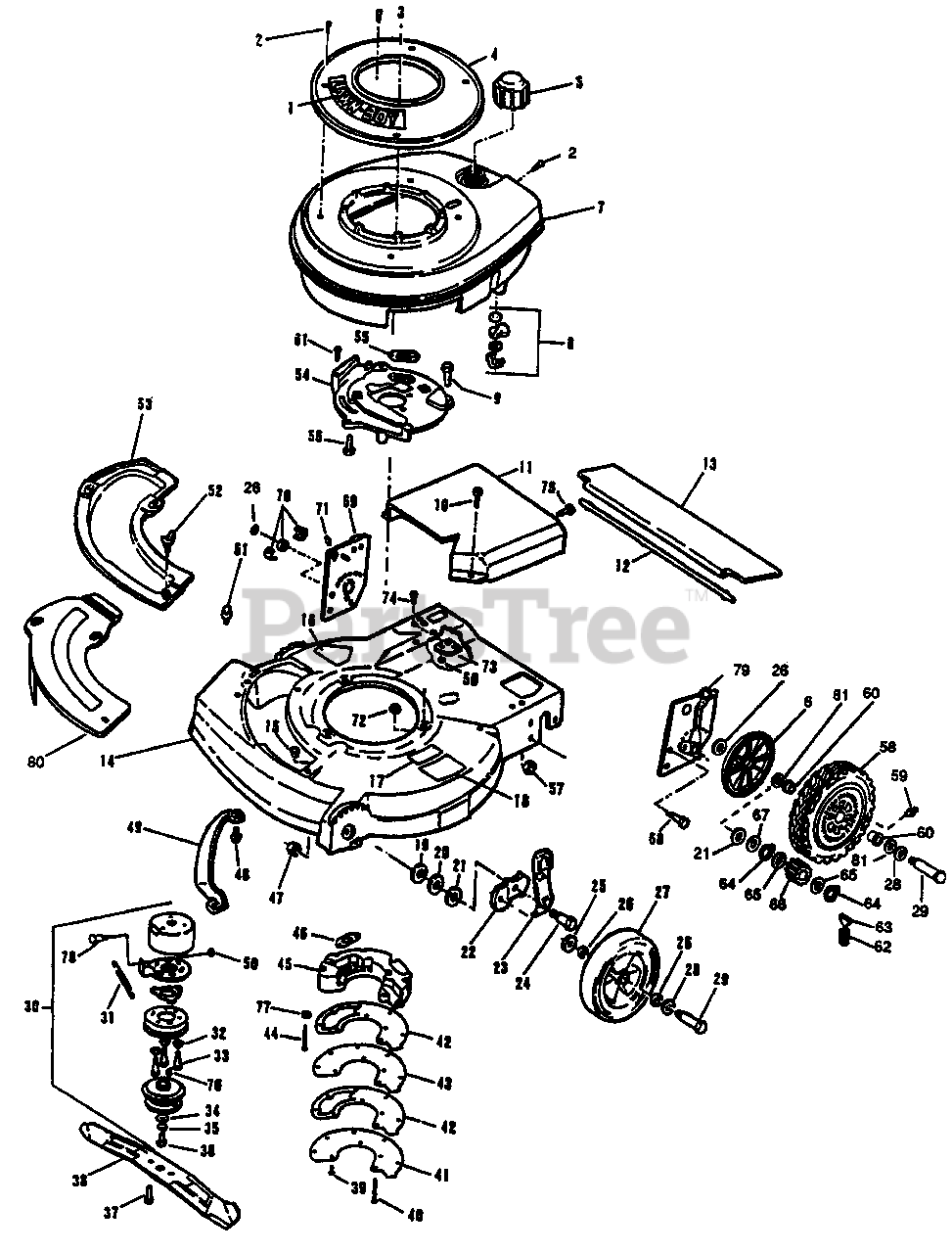

HOUSING AND SHROUD MODEL: 680545 Parts Diagram

  • Title

1

Lawn-Boy 614265

Applique-Starter Base

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611395

Screw
(Superseded to 611543)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 4 left!

0

3

Lawn-Boy 612428

Screw-Starter Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

4

Lawn-Boy 684570

Starter Base & Nut Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

In Stock, Qty 9

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

6

Lawn-Boy 613512

Cover Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 684630

Shroud-Engine (Inc. 8)
(Superseded to 16-5539)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 681818

Fuel Shut-Off Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 611774

Screw-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 606452

Screw-Cover Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 613060

Cover-Drive

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 614314

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 614315

Shield-Trailing

Note: Important Note: Replacement parts may not always be available in matching colors.

$35.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 684691

Housing (Inc. 15-18)

Note: Important Note: Replacement parts may not always be available in matching colors.

$959.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 8

0

17

Lawn-Boy 145252

Decal-Starting Pad

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 609961

Pad-Starting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 608834

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 146014

Washer-Shim-Wheel Height Adjust Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 146015

Washer-Shim-Wheel Height Adjust Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 608833

Bracket-Wheel Height Adjust
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 153444

Knob & Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 603620

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 684135

Wheel-Front
(Superseded to 105-8618)

Note: Important Note: Replacement parts may not always be available in matching colors.

$51.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 605256

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 9

0

29

Lawn-Boy 603441

Bolt-Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 683098

Clutch Brake Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 611415

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$58.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 611418

Spring Pressure

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 611399

Screw-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 611412

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$30.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 611413

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 611417

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 611398

Screw-Sems-Blade

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 683683

Blade-21"

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

39

Lawn-Boy 609471

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 613172

Screw
(Superseded to 32144-57)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

41

Lawn-Boy 613171

Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 613175

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$53.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 613174

Heat Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 133022

Screw
(Superseded to 322-20)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 614513

Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 613173

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 603773

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

48

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 7

0

49

Lawn-Boy 608175

Toe Bar

Note: Important Note: Replacement parts may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 602315

Nut-Bolster To Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

51

Lawn-Boy 607809

Screw-Plate & Chute Mounting
(Superseded to 614677)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 20+

0

52

Lawn-Boy 606733

Wing Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.99

$

In Stock, Qty 7

0

53

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Replacement parts may not always be available in matching colors.

$30.99

$

In Stock, only 2 left!

0

54

Lawn-Boy 611373

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

56

Lawn-Boy 607601

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 5

0

57

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 683626

Wheel & Tire Assy. (Inc. 59-60)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611831

Lube Fitting

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 145439

Bushing-Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 611774

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

62

Lawn-Boy 612067

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

63

Lawn-Boy 612066

Key

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

64

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 8

0

65

Lawn-Boy 612068

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 612064

Pinion

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 608030

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

68

Lawn-Boy 610404

Screw
(Superseded to 146209)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 684587

Height Adjuster Assy.-R.H. (Inc. 70-71)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 683195

Bearing & Retainer Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$31.99

$

In Stock, only 2 left!

0

71

Lawn-Boy 603615

Fittings

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 608311

Nut-Muffler Plate To Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 613042

Bolster-Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 609891

Screw-Bolster to Housing
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

75

Lawn-Boy 613028

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

76

Lawn-Boy 607199

Key

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 12

0

77

Lawn-Boy 311388

Lock Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

78

Lawn-Boy 611318

Shoulder Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

79

Lawn-Boy 684588

Height Adjuster Assy.-L.H. (Inc. 70-71)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

80

Lawn-Boy 684711

Mulch Plate Accessory

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

81

Lawn-Boy 614413

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0
