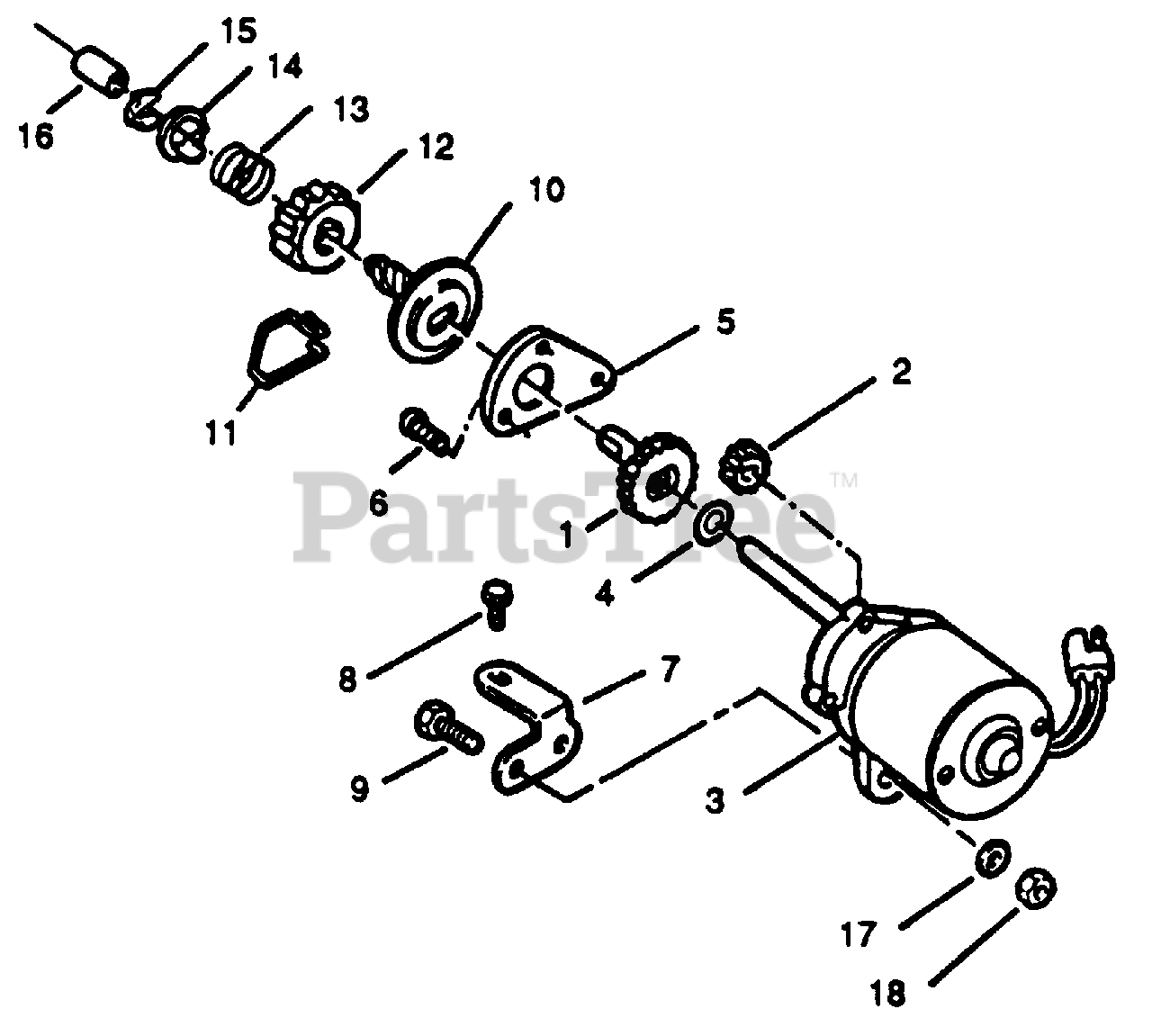

680546 - Lawn-Boy Walk-Behind Mower (SN: L00000001 - L99999999) (1992) ELECTRIC STARTER MODEL: 680546 Parts Diagram

Walk-Behind Mower

ELECTRIC STARTER MODEL: 680546 Parts Diagram

  • Title

Lawn-Boy 682806

Electric Starter Assembly (Inc. 1-6)

Note: Important Note: Replacement parts not always be available in matching colors.

$791.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 611386

Gear-Driven

Note: Important Note: Replacement parts not always be available in matching colors.

$50.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 611385

Pinion-Motor Shaft

Note: Important Note: Replacement parts not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682807

Motor Housing & Pin Assembly
(Superseded to 682806)

Note: Important Note: Replacement parts not always be available in matching colors.

$791.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 609568

Washer
(Superseded to 252-98)

Note: Important Note: Replacement parts not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613517

Plate-Gear Cover

Note: Important Note: Replacement parts not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609130

Screw

Note: Important Note: Replacement parts not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 612661

Bracket-Starter Mounting

Note: Important Note: Replacement parts not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 609471

Screw

Note: Important Note: Replacement parts not always be available in matching colors.

$4.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 613075

Screw

Note: Important Note: Replacement parts not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 682809

Pinion, Spring & Clutch Ass'y (Inc. 11-15)

Note: Important Note: Replacement parts not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 609229

Spring-Drag

Note: Important Note: Replacement parts not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

12

Lawn-Boy 610258

Pinion

Note: Important Note: Replacement parts not always be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 610257

Spring-Pinion Return

Note: Important Note: Replacement parts not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 613451

Washer-Pinion Stop

Note: Important Note: Replacement parts not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 608622

Retaining Ring

Note: Important Note: Replacement parts not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 609572

Sleeve

Note: Important Note: Replacement parts not always be available in matching colors.

$35.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 306992

Lockwasher

Note: Important Note: Replacement parts not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 328712

Nut
(Superseded to 3217-26)

Note: Important Note: Replacement parts not always be available in matching colors.

$1.99

$

In Stock, only 4 left!

0
