68070 - Toro Control Cover Kit for TR-34D Trench Roller CONTROL COVER KIT ASSEMBLY Parts Diagram

Control Cover Kit for TR-34D Trench Roller

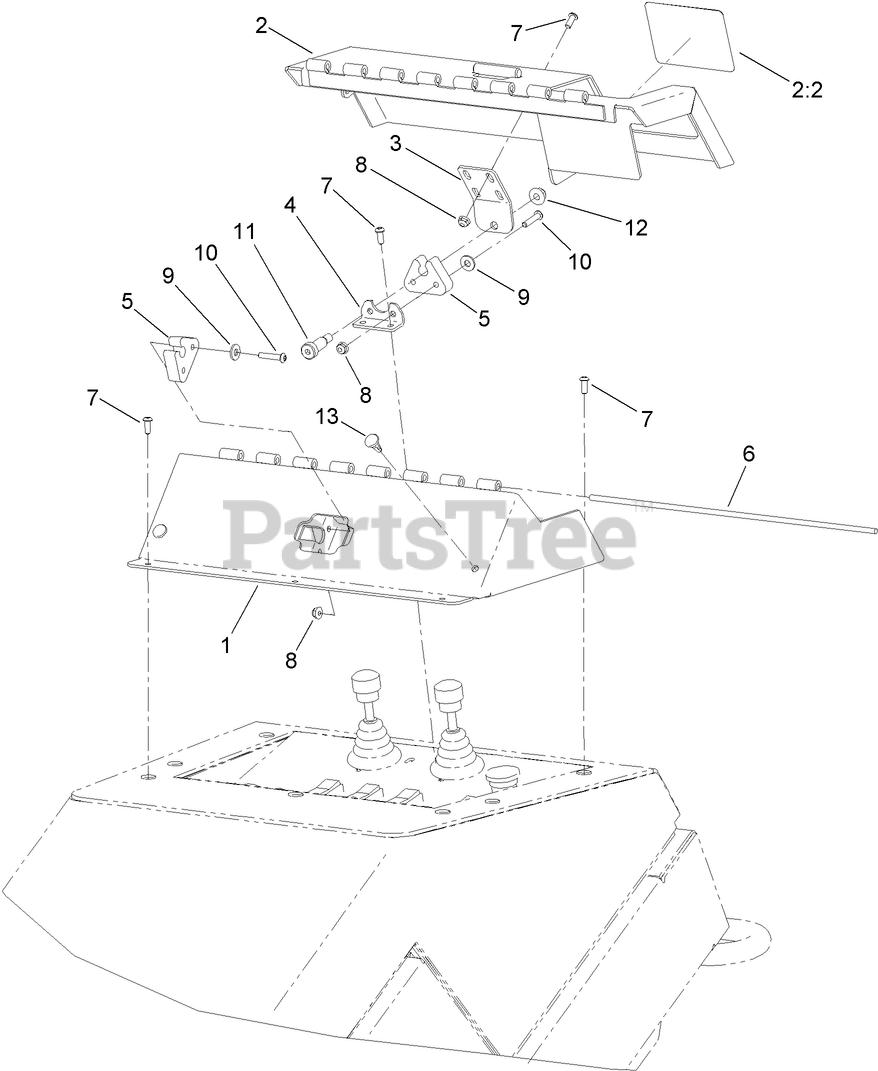

CONTROL COVER KIT ASSEMBLY Parts Diagram

  • Title

1

Toro ST50140-01

COVER-STATIONARY
(Superseded to 127-1696)

$

$

Not available

2

Toro 127-1696

MOVEABLE COVER ASM

$

$

Not available

2:2

Toro 127-1655

DECAL-CONTROL COVER

$

$

Currently unavailable

3

Toro ST50148-01

BRACKET-COVER

$

$

Not available

4

Toro ST50149-01

BRACKET-COVER

$

$

Not available

5

Toro ST50150

LATCH-CLIP, COVER

$

$

Not available

6

Toro ST50151

PIN-HINGE

$

$

Not available

7

Toro 119-6906

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 119-6921

NUT-HEX, FLANGE

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

10

Toro 120-0834

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 1-603403

BOLT-SHOULDER

$18.99

$

In Stock, only 2 left!

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro ST81187

CLIP-ARROW, NYLON

$1.99

$

Usually ships in 3-6 days

0
