68071 (RP-500) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) BED PLATE ASSEMBLY Parts Diagram

Reversible Plate Compactor

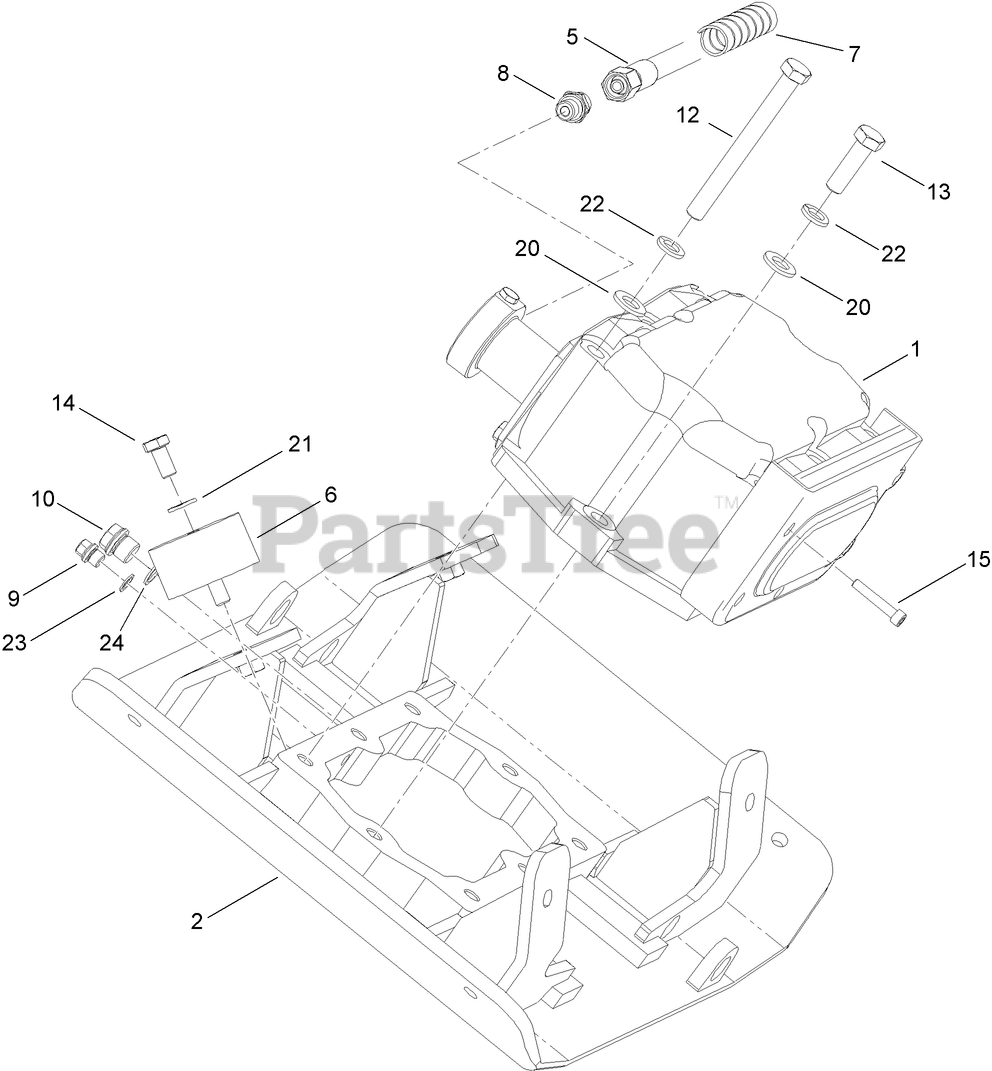

BED PLATE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5052

VIBRATORY ASM

$

$

Not available

2

Toro 127-5072

PLATE-BED

$

$

Not available

5

Toro 127-5073

HOSE-HYD
(Superseded to 127-5240)

$

$

Not available

6

Toro 127-5074

MOUNT-RUBBER

$46.99

$

Usually ships in 3-6 days

0

7

Toro 127-5075

COVER-HOSE

$

$

Not available

8

Toro 127-5076

SOCKET

$

$

Not available

9

Toro 127-5077

PLUG

$

$

Not available

10

Toro 127-5078

PLUG

$

$

Not available

12

Toro 127-5079

BOLT

$

$

Not available

13

Toro 127-5080

BOLT

$

$

Not available

14

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 127-5081

BOLT

$

$

Not available

20

Toro 127-5083

WASHER

$

$

Not available

21

Toro 127-5084

WASHER

$

$

Not available

22

Toro 127-5085

WASHER

$

$

Not available

23

Toro 127-5086

RING

$2.99

$

Usually ships in 3-6 days

0

24

Toro 127-5087

RING

$

$

Not available
