68071 (RP-500) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) CONTROL ARM ASSEMBLY Parts Diagram

Reversible Plate Compactor

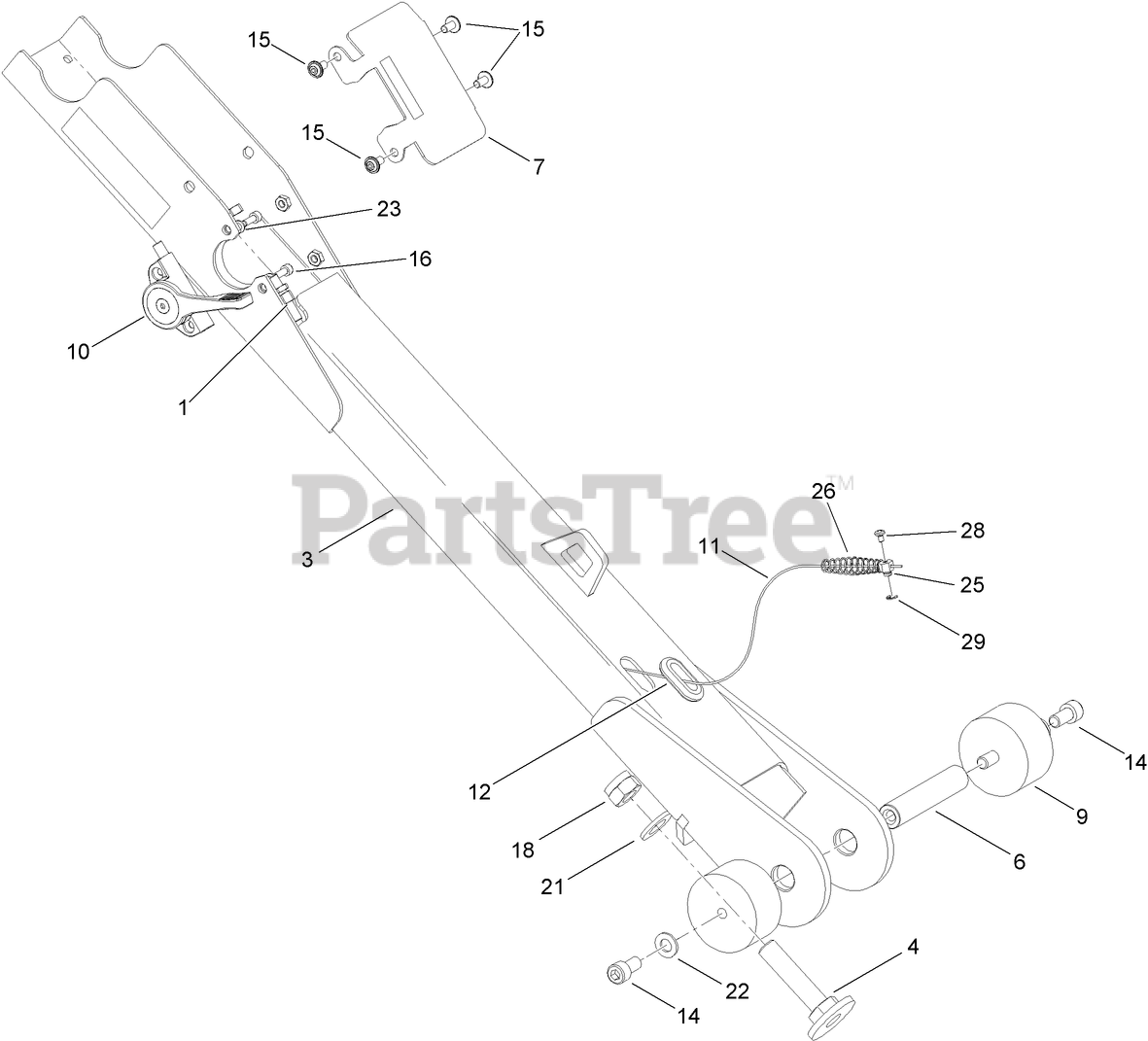

CONTROL ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5110

GUIDE-CABLE

$185.99

$

Usually ships in 3-6 days

0

3

Toro 127-5111

CONTROL ARM ASM

$

$

Not available

4

Toro 127-5112

SCREW-STOP

$41.99

$

Usually ships in 3-6 days

0

6

Toro 127-5113

BAR-PIN

$89.99

$

Usually ships in 3-6 days

0

7

Toro 127-5114

PLATE-COVER

$61.99

$

Usually ships in 3-6 days

0

9

Toro 127-5115

MOUNT-RUBBER

$83.99

$

Usually ships in 3-6 days

0

10

Toro 127-5116

LEVER-THROTTLE

$299.99

$

Usually ships in 3-6 days

0

11

Toro 127-5117

CABLE-THROTTLE

$22.99

$

Usually ships in 3-6 days

0

12

Toro 127-5118

GROMMET

$8.99

$

Usually ships in 3-6 days

0

14

Toro 127-5101

BOLT

$0.99

$

Usually ships in 3-6 days

0

15

Toro 127-5119

BOLT

$1.49

$

Usually ships in 3-6 days

0

16

Toro 127-5120

BOLT

$

$

Not available

18

Toro 127-5121

NUT

$1.99

$

Usually ships in 3-6 days

0

21

Toro 127-5123

WASHER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 127-5084

WASHER

$

$

Not available

23

Toro 127-5124

WASHER

$

$

Not available

25

Toro 127-5125

NUT-WIRE

$

$

Not available

26

Toro 127-5126

SPRING

$4.99

$

Usually ships in 3-6 days

0

28

Toro 127-5102

BOLT

$0.99

$

Usually ships in 3-6 days

0

29

Toro 127-5127

BAR-RING

$

$

Not available
