68073 (RP-1200) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) CONTROL ARM ASSEMBLY Parts Diagram

Reversible Plate Compactor

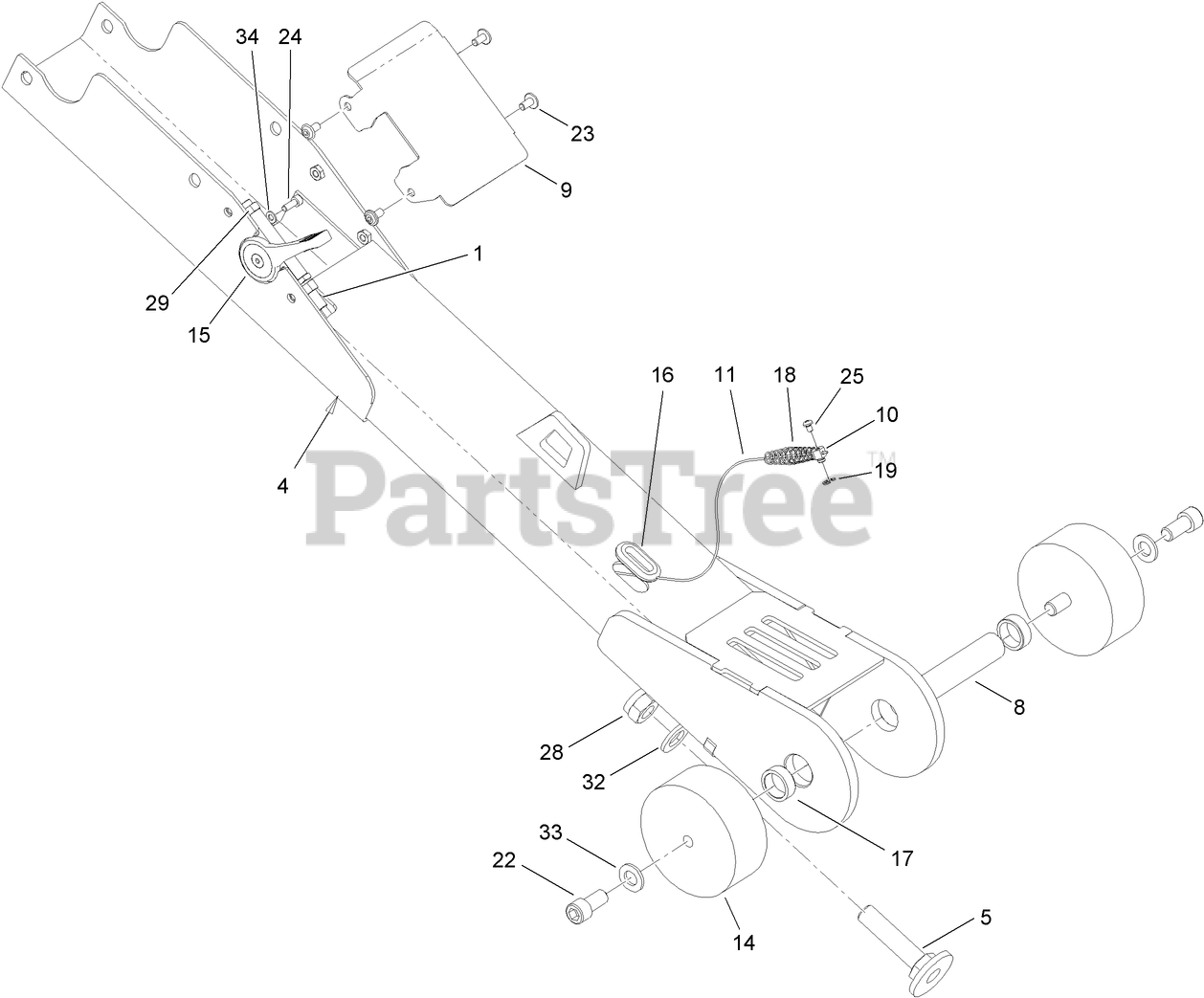

CONTROL ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5110

GUIDE-CABLE

$

$

Not available

4

Toro 127-5361

ARM

$

$

Not available

5

Toro 127-5112

SCREW-STOP

$

$

Not available

8

Toro 127-5362

PIN-ARM

$

$

Not available

9

Toro 127-5363

PLATE

$

$

Not available

10

Toro 127-5125

NUT-WIRE

$

$

Not available

11

Toro 127-5117

CABLE-THROTTLE

$

$

Not available

14

Toro 127-5364

MOUNT-RUBBER

$

$

Not available

15

Toro 127-5365

OBS LEVER
(Superseded to 127-5116)

$341.99

$

Usually ships in 3-6 days

0

16

Toro 127-5118

GROMMET

$

$

Not available

17

Toro 127-5366

BUSHING

$

$

Not available

18

Toro 127-5126

SPRING

$

$

Not available

19

Toro 127-5127

BAR-RING

$

$

Not available

22

Toro 127-5367

BOLT

$

$

Not available

23

Toro 127-5119

BOLT

$1.99

$

Usually ships in 3-6 days

0

24

Toro 127-5120

BOLT

$

$

Not available

25

Toro 127-5102

BOLT

$0.99

$

Usually ships in 3-6 days

0

28

Toro 127-5121

NUT

$

$

Not available

29

Toro 127-5122

NUT

$0.99

$

Usually ships in 3-6 days

0

32

Toro 127-5123

WASHER

$

$

Not available

33

Toro 127-5084

WASHER

$

$

Not available

34

Toro 127-5124

WASHER

$

$

Not available
