68075 (RP-1400 D) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) BED PLATE ASSEMBLY Parts Diagram

Reversible Plate Compactor

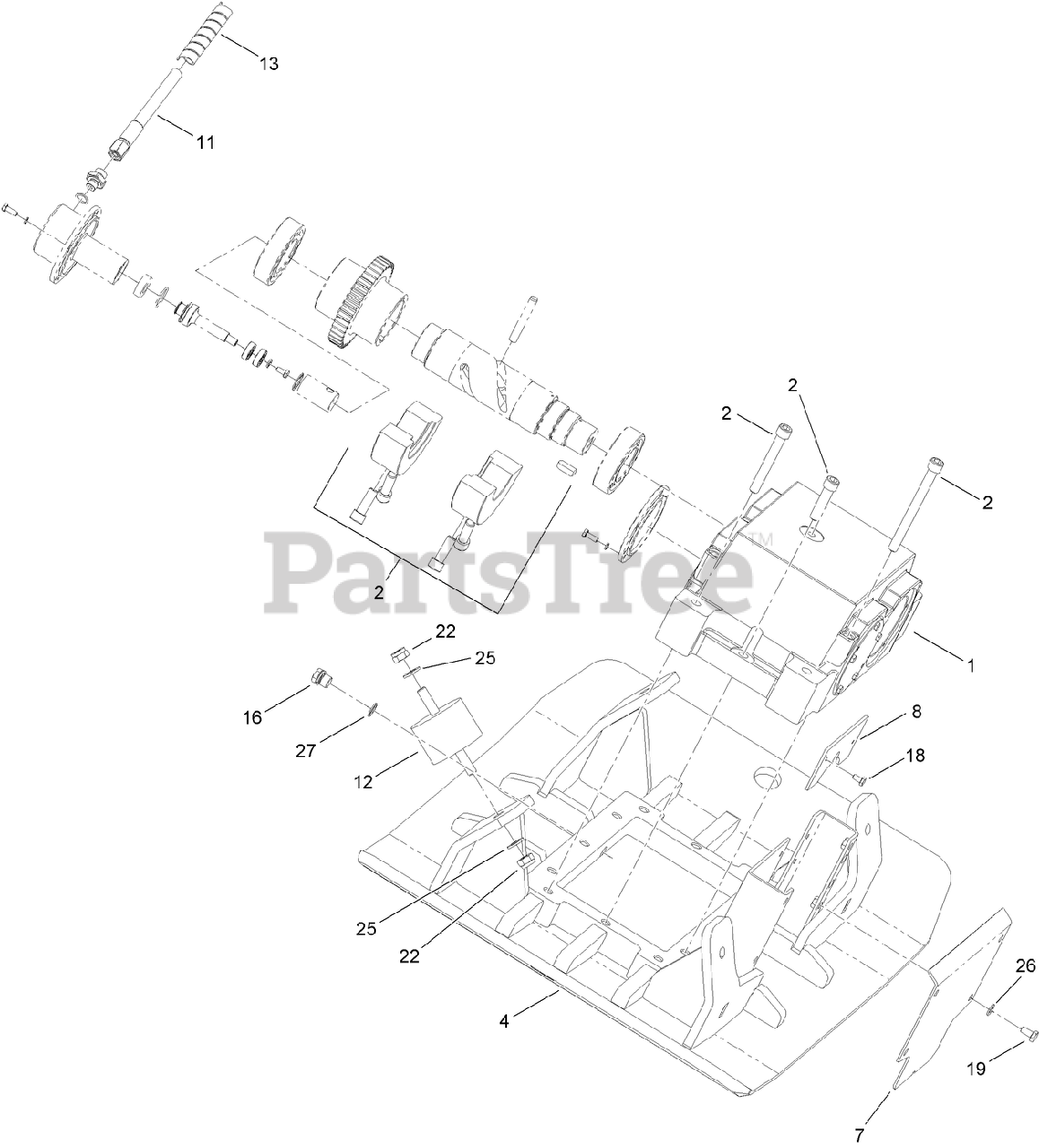

BED PLATE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5069

VIBRATORY ASM

$

$

Not available

2

Toro 127-5068

WEIGHT KIT ASM

$

$

Currently unavailable

4

Toro 127-5455

PLATE

$

$

Not available

7

Toro 127-5238

COVER-FRONT

$

$

Not available

8

Toro 127-5239

COVER-BACK

$

$

Not available

11

Toro 127-5240

HOSE-HYD

$

$

Not available

12

Toro 127-5456

MOUNT-RUBBER

$

$

Not available

13

Toro 127-5075

COVER-HOSE

$

$

Not available

16

Toro 127-5078

PLUG

$

$

Not available

18

Toro 127-5242

BOLT

$

$

Not available

19

Toro 127-5243

BOLT

$

$

Not available

22

Toro 127-5244

NUT

$5.49

$

Usually ships in 3-6 days

0

25

Toro 127-5083

WASHER

$

$

Not available

26

Toro 127-5104

WASHER

$

$

Not available

27

Toro 127-5087

RING

$

$

Not available
