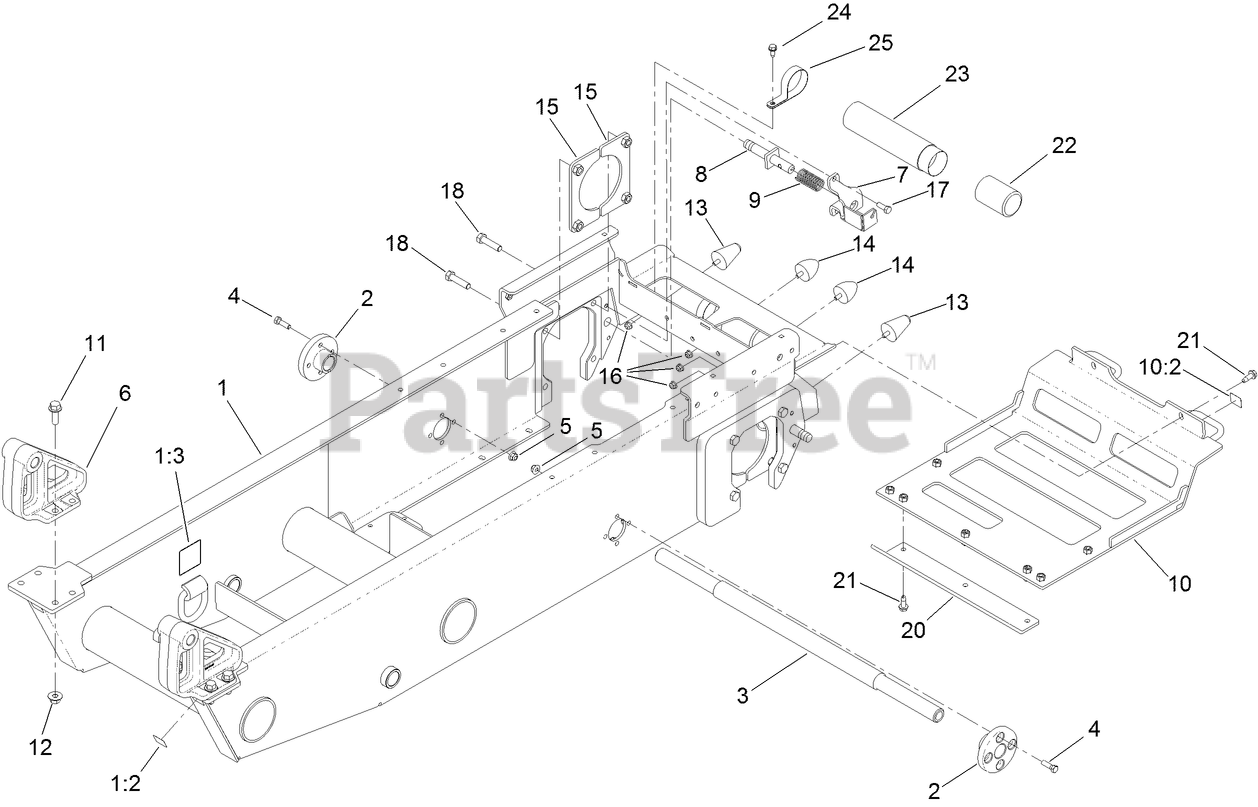

68138 (MB TX 2500) - Toro Mud Buggy (SN: 403090201 - 403299999) Frame Assembly Parts Diagram

Mud Buggy

Frame Assembly Parts Diagram

  • Title

1

Toro 136-4650

FRAME ASM

$4719.99

$

Usually ships in 3-6 days

0

1:2

Toro 132-9051

DECAL-TIEDOWN

$1.99

$

Usually ships in 3-6 days

0

1:3

Toro 125-4967

DECAL-LIFT HERE

$2.99

$

Usually ships in 3-6 days

0

2

Toro 132-9075

HUB-MOUNT, TRACK

$147.99

$

Usually ships in 3-6 days

0

3

Toro 125-0425

SHAFT-TRACK

$355.99

$

Usually ships in 3-6 days

0

4

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 132-9025-03

PIVOT-DUMP
(Superseded to 132-9025-05)

$195.99

$

Usually ships in 3-6 days

0

7

Toro 130-5284-03

BRACKET-BRAKE
(Superseded to 130-5284-05)

$73.99

$

Usually ships in 3-6 days

0

8

Toro 132-8866

SHAFT-BRAKE

$51.99

$

Usually ships in 3-6 days

0

9

Toro 125-0344

SPRING-COMPRESSION

$18.99

$

Usually ships in 3-6 days

0

10

Toro 136-4651

PLATE-SIDE

$382.99

$

Usually ships in 3-6 days

0

10:2

Toro 132-9051

DECAL-TIEDOWN

$1.99

$

Usually ships in 3-6 days

0

11

Toro 130-6482

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

12

Toro 32128-52

NUT-LOCK, FLANGE

$2.99

$

Usually ships in 3-6 days

0

13

Toro 114-1925

BUMPER-RUBBER

$28.99

$

In Stock, only 1 left!

0

14

Toro 114-1926

BUMPER-RUBBER

$30.99

$

In Stock, Qty 20+

0

15

Toro 132-8936-03

HYDRO MOUNTING PLATE ASM
(Superseded to 132-8936-05)

$40.99

$

Usually ships in 3-6 days

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

20

Toro 136-4611-03

PLATE-SKID
(Superseded to 136-4611-05)

$67.99

$

Usually ships in 3-6 days

0

21

Toro 105-6245

SCREW-TAPPING

$6.49

$

Usually ships in 3-6 days

0

22

Toro 104-7048

CAP-HOUSING

$6.49

$

In Stock, only 1 left!

0

23

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

24

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

25

Toro 2412-133

CLAMP-R

$9.99

$

Usually ships in 3-6 days

0
