68141 G (2500-TS) - Toro Ultra Buggy (SN: 416000000 - 999999999) Control Assembly Parts Diagram

Ultra Buggy

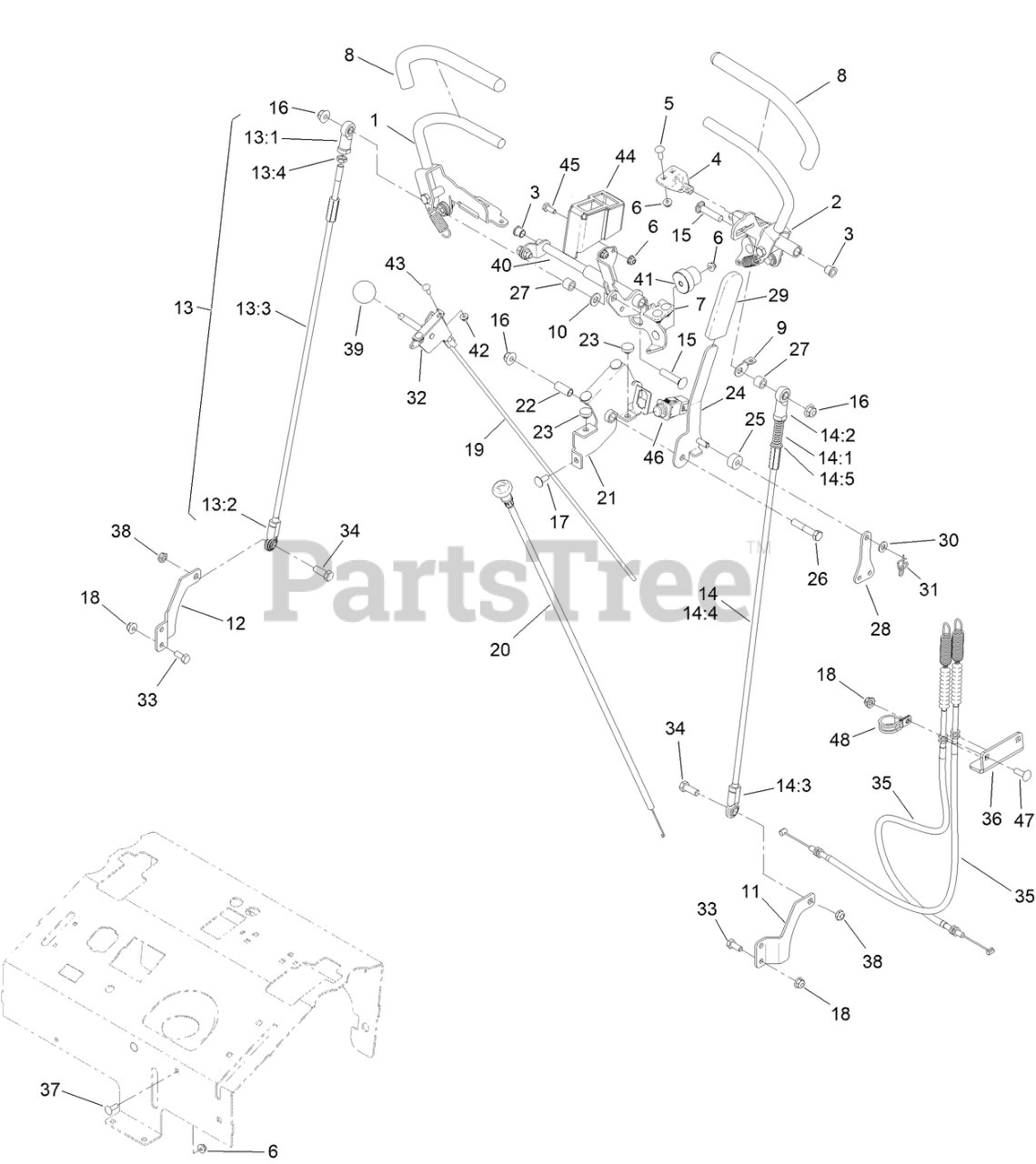

Control Assembly Parts Diagram

  • Title

1

Toro 132-9048

RH CONTROL HANDLE ASM

$191.99

$

Usually ships in 3-6 days

0

2

Toro 132-9047

LH CONTROL HANDLE ASM

$191.99

$

Usually ships in 3-6 days

0

3

Toro 103-9928

BEARING

$8.49

$

In Stock, only 3 left!

0

4

Toro 120-3288

TAB-PIVOT, LH

$14.99

$

In Stock, only 2 left!

0

5

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

6

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 120-3287

TAB-PIVOT, RH

$14.99

$

In Stock, only 3 left!

0

8

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

9

Toro 132-7538

BRACKET-ADJUSTMENT, SPEED

$9.99

$

Usually ships in 3-6 days

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 131-5748-05

BRACKET-HYDRO [BLK-TXT]

$14.99

$

Usually ships in 3-6 days

0

12

Toro 131-5747-05

BRACKET-HYDRO [BLK-TXT]

$14.99

$

Usually ships in 3-6 days

0

13

Toro 138-8642

RH CONTROL ROD ASM

$85.99

$

Usually ships in 3-6 days

0

13:1

Toro 92-7008

END-ROD, FEMALE

$56.99

$

Usually ships in 3-6 days

0

13:2

Toro 103-1167

JOINT-BALL END, LH

$35.99

$

In Stock, Qty 8

0

13:3

Toro 138-8641

ROD-CONTROL

$11.99

$

Usually ships in 3-6 days

0

13:4

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

14

Toro 138-8643

LH CONTROL ROD ASM

$85.99

$

Usually ships in 3-6 days

0

14:1

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.99

$

In Stock, Qty 8

0

14:2

Toro 92-7008

END-ROD, FEMALE

$56.99

$

Usually ships in 3-6 days

0

14:3

Toro 103-1167

JOINT-BALL END, LH

$35.99

$

In Stock, Qty 8

0

14:4

Toro 138-8641

ROD-CONTROL

$11.99

$

Usually ships in 3-6 days

0

14:5

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

15

Toro 3231-29

SCREW-CARR

$7.99

$

In Stock, Qty 19

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 115-1211

CABLE-CONTROL

$29.99

$

In Stock, only 2 left!

0

20

Toro 132-9035

CABLE-CHOKE

$31.99

$

Usually ships in 3-6 days

0

21

Toro 132-8919-05

BRACKET-BRAKE PIVOT (WELDED)

$89.99

$

Usually ships in 3-6 days

0

22

Toro 131-3562

BEARING-SLEEVE

$2.49

$

In Stock, only 2 left!

0

23

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

24

Toro 132-8920-05

HANDLE-BRAKE ARM

$40.99

$

Usually ships in 3-6 days

0

25

Toro 132-9064

BUSHING-BRAKE

$12.99

$

Usually ships in 3-6 days

0

26

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 9

0

27

Toro 93-9847

SPACER

$9.49

$

In Stock, only 2 left!

0

28

Toro 132-1188

YOKE-CABLE

$5.99

$

Usually ships in 3-6 days

0

29

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 7

0

30

Toro 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

31

Toro 112-1491

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

32

Toro 110-5547

LEVER-CONTROL

$42.99

$

In Stock, only 2 left!

0

33

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 132-8921

CABLE-BRAKE

$53.99

$

In Stock, only 2 left!

0

36

Toro 132-8923-05

BRACKET-CABLE, BRAKE

$16.99

$

Usually ships in 3-6 days

0

37

Toro 3229-25

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 11

0

38

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

39

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 2 left!

0

40

Toro 132-9029-05

PIVOT/PLATE SWITCH ASM (WELD)

$120.99

$

Usually ships in 3-6 days

0

41

Toro 126-1499

CAM

$8.49

$

Usually ships in 3-6 days

0

42

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

0

43

Toro 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

44

Toro 145-1157-05

BRACKET-SWITCH

$33.99

$

Usually ships in 3-6 days

0

45

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 100-1268

SWITCH-PLUNGER

$65.99

$

Usually ships in 3-6 days

0

47

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 3 left!

0

48

Toro 2412-104

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0
