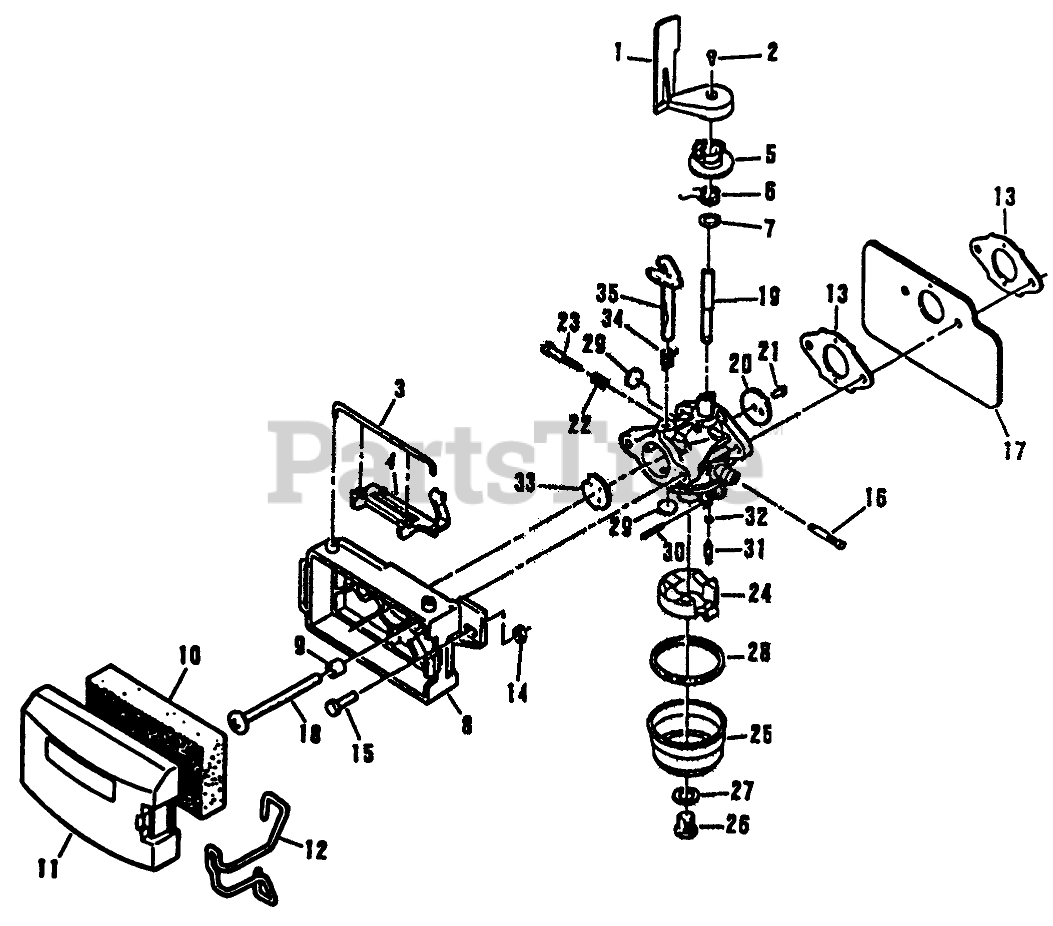

684190 - Toro Rear Grass Catcher Assembly CARBURETOR GROUP MODEL L21ZPNC Parts Diagram

Rear Grass Catcher Assembly

CARBURETOR GROUP MODEL L21ZPNC Parts Diagram

  • Title

1

Toro 612505

AIR VANE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Toro 605522

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, only 2 left!

0

3

Toro 610165

RETAINER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 20+

0

4

Toro 612502

LEVER F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 612757

COLLAR A/VAVE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

6

Toro 613142

THROTTLE SPR E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 11

0

7

Toro 308052

WASHER VF

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 4 left!

0

8

Toro 612504

BASE,AIR FILT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 612503

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

10

Toro 609493

ELEMENT-AIR FIL VF
(Superseded to 107-4621)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 20+

0

11

Toro 610742

A/F COVER SE612779
(Superseded to 93-1231)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Toro 610383

RETAINER-COVER, FILTER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

13

Toro 612574

GASKET CARB S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 18

0

14

Toro 328712

Nut
(Superseded to 3217-26)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 4 left!

0

15

Toro 314576

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

16

Toro 612974

SCREEN FUEL PITTS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 11

0

17

Toro 613143

SHIELD, CARB F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

18

Toro 612507

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 7

0

Toro 612783

GAS LINE CUPPLES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684352

CARB. AY S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$360.99

$

Usually ships in 3-6 days

0

Toro 684286

KIT THROTTLE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$60.99

$

Usually ships in 3-6 days

0

19

Throttle Shaft

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Throttle Shaft

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

20

Throttle Valve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Throttle Valve

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

21

Screw-Throttle Valve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Screw-Throttle Valve

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

Toro 684285

NEEDLE, IDLER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Spring-Idle Needle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Spring-Idle Needle

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

23

Idle Needle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Idle Needle

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

24

Toro 683783

BOWL KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 683782

BOWL KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$53.99

$

Usually ships in 3-6 days

0

25

Fuel Bowl

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Fuel Bowl

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

26

Screw-Bowl Retainer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Screw-Bowl Retainer

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

Gasket Kit

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Gasket Kit

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

Toro 683778

GASKET KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, only 4 left!

0

27

Bowl Retainer Gasket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Bowl Retainer Gasket

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

28

Fuel Bowl Gasket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Fuel Bowl Gasket

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

Toro 683777

REPAIR KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Plug-Welch

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Plug-Welch

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

30

Float Shaft

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Float Shaft

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

31

Inlet Needle Valve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Inlet Needle Valve

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

32

Valve Seat

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Valve Seat

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

Toro 683781

CHOKE KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$45.99

$

In Stock, only 1 left!

0

33

Choke Valve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Choke Valve

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

34

Choke Return Spring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Choke Return Spring

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available

35

Choke Shaft

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Choke Shaft

Note: Note: Parts shown with bullet included with kit above.

$

$

Not available
