684190 - Toro Rear Grass Catcher Assembly HANDLE AND REAR GRASS CATCHER GROUP MODELS: M21ZPRB, C & D Parts Diagram

Rear Grass Catcher Assembly

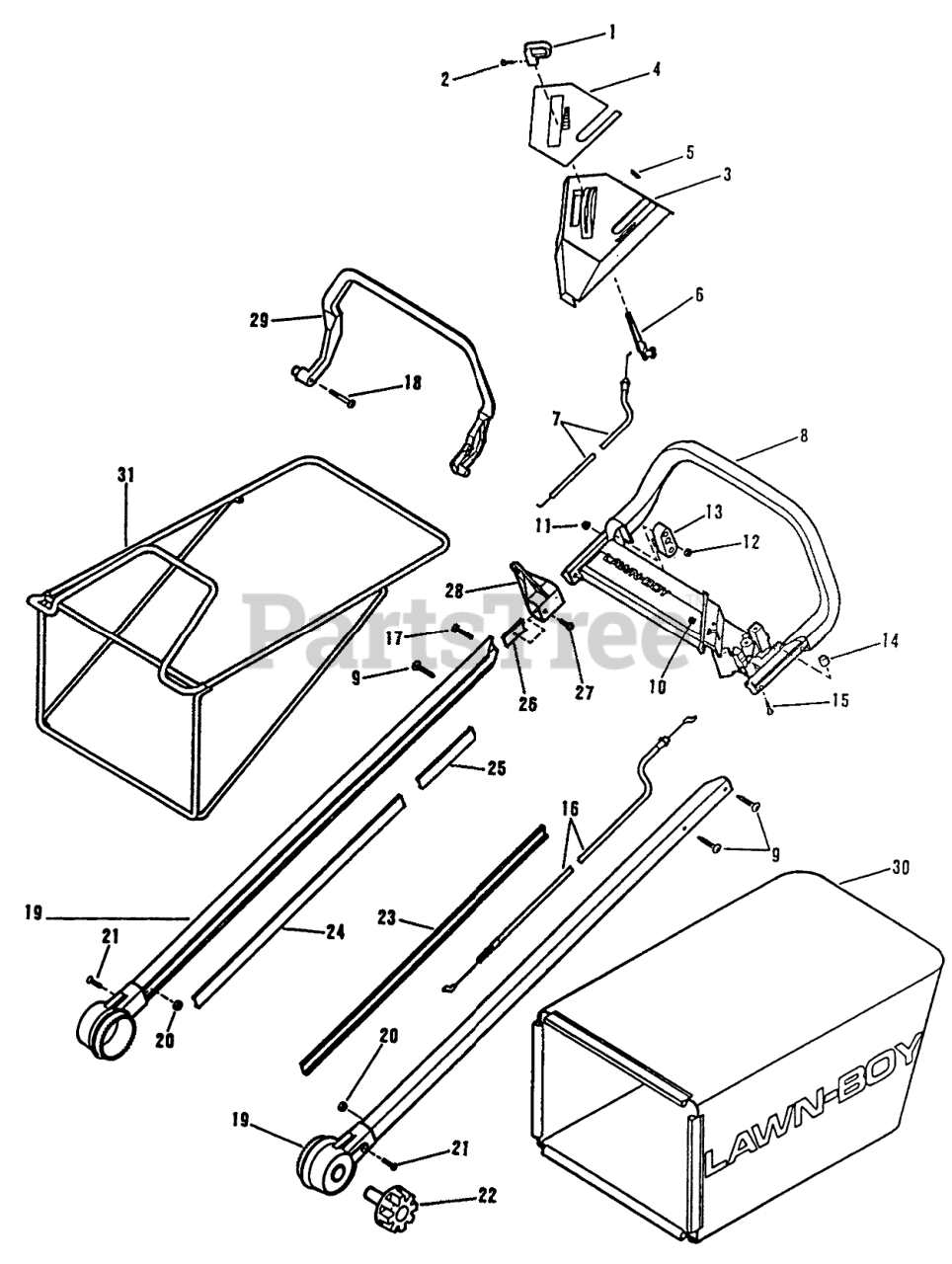

HANDLE AND REAR GRASS CATCHER GROUP MODELS: M21ZPRB, C & D Parts Diagram

  • Title

1

Toro 684399

KNOB & SCREW AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Toro 614013

SCREW-SELF TAP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Toro 614013

SCREW-SELF TAP

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

3

Toro 684425

UPPER CVR W/DECAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684266

UP, COVER&DECAL AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Toro 613480

Plate

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Toro 613480

Plate

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

5

Toro 145482

PLUG - BUTTON

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Toro 684446

LVR ASSM THROTTLE LB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Toro 684210

CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Toro 684424

Handle and Decal Assembly
(Superseded to 684581)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 614023

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 614023

SCREW

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

10

Toro 613980

DECAL - LAWNBOY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Toro 613980

DECAL - LAWNBOY

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

11

Toro 613406

LOCKNUT FLAN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

13

Toro 613412

BLOCK BAIL PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 700790

BUMPER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Toro 613549

SCREW - TRUSS HEAD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Toro 684209

CABLE ASSEMBLY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Toro 613405

SCREW-TRUSS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Toro 613555

SCREW - TRUSS HEAD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 684150

Handle Shaft Assembly
(Superseded to 684695)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$204.99

$

Usually ships in 3-6 days

0

20

Toro 613406

LOCKNUT FLAN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Toro 613406

LOCKNUT FLAN

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

21

Toro 613401

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Toro 613401

SCREW

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

22

Toro 613358

KNOB-HDLE MT.ASMB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Toro 613552

Handle Insert-Cable Side
(Superseded to 614518)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

24

Toro 613408

INSERT-HANDLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Toro 613601

INSERT - HANDLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Toro 613393

NUT LB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0

27

Toro 611499

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Toro 684151

ROPE GUIDE AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Toro 613416

Blade Brake Bail

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Toro 684189

REPL BAG FOR 684190

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Toro 684130

FRAME AY-GRASS BAGB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$237.45

$

In Stock, only 1 left!

0
