684190 - Toro Rear Grass Catcher Assembly HOUSING AND SHROUD GROUP MODEL L21ZSNC Parts Diagram

Rear Grass Catcher Assembly

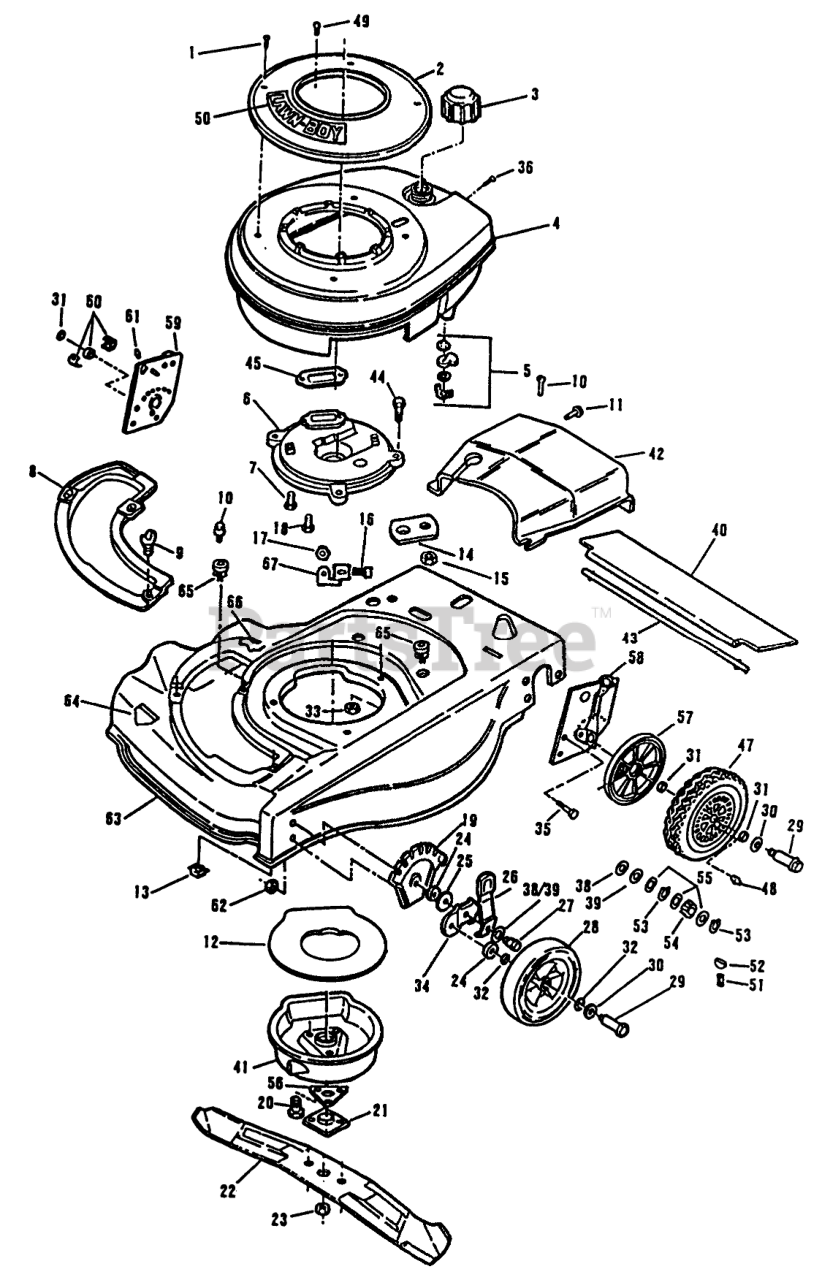

HOUSING AND SHROUD GROUP MODEL L21ZSNC Parts Diagram

  • Title

1

Toro 611395

SCREW S
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

2

Toro 684571

STARTER BASE&NUTG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Toro 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$21.99

$

In Stock, Qty 8

0

Toro 607213

GASKET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Toro 607213

GASKET S

Note: NOTE: Parts shown with bullet included with assembly above.

$1.99

$

In Stock, Qty 20+

0

Toro 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 10

0

Toro 609150

BAFFLE - FOAM SM

Note: NOTE: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 10

0

4

Toro 683916

Shroud-Engine
(Superseded to 16-5539)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 681818

SHUT OFF VALVE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 681818

SHUT OFF VALVE KIT

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

6

Toro 613891

PLATE,MUFFLER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Toro 607601

SCREW V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 5

0

8

Toro 607560

CoverPlate
(Superseded to 95-7052)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$30.99

$

In Stock, only 1 left!

0

9

Toro 606733

WING SCREW LAWRE
(Superseded to 109-1063)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

10

Toro 607809

Bolt
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 20+

0

11

Toro 612055

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

12

Toro 613892

BAFFLE,MUFFLER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

13

Toro 613765

NUT-CAGE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

In Stock, Qty 11

0

14

Toro 613876

BOLSTER PLATE LB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

15

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

16

Toro 609891

Screw
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

18

Toro 609994

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 610826

PLATE HGT ADJ TRO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Toro 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 20+

0

21

Toro 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 9

0

22

Toro 683682

21" Blade
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$29.99

$

In Stock, Qty 14

0

23

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 5

0

24

Toro 603620

WASHER WROUGHT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

25

Toro 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

26

Toro 682231

KNOB&SPRING FORMCO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

27

Toro 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

28

Toro 684135

WHEEL&TIRE 6"
(Superseded to 105-8618)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$51.99

$

Usually ships in 3-6 days

0

29

Toro 603441

BOLT WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

30

Toro 605256

WASHER-PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 3 left!

0

31

Toro 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

32

Toro 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

33

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

34

Toro 608833

Bracket
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 3 left!

0

35

Toro 610404

Screw
(Superseded to 146209)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

36

Toro 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

37

Toro 609891

Screw
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Toro 146014

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Toro 146014

WASHER

Note: Use as required to adjust wheel wobble.

$

$

Not available

39

Toro 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

39

Toro 146015

WASHER

Note: Use as required to adjust wheel wobble.

$3.49

$

Usually ships in 3-6 days

0

40

Toro 614315

SHIELD-TRAILING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$35.99

$

Usually ships in 3-6 days

0

41

Toro 682873

MUFFLER COVER F
(Superseded to 682873-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Toro 613890

COVER-BELT PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Toro 614314

ROD-TRAILING SHIELD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Toro 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

45

Toro 609420

Gasket
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 16

0

46

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

47

Toro 683626

WHEEL AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Toro 611831

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

48

Toro 611831

FITTING LINCOLN

Note: NOTE: Parts shown with bullet included with assembly above.

$6.99

$

Usually ships in 3-6 days

0

Toro 145439

BUSHING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 145439

BUSHING

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

49

Toro 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

50

Toro 614265

APPLIQUE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Toro 612067

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

52

Toro 612066

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

53

Toro 607676

RET RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 8

0

54

Toro 612064

PINION BROCKWAY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

55

Toro 612068

SPACER/GR ALGHNY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

56

Toro 609980

SUPPORT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Toro 613512

W/COVER WHITE PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Toro 684341

HEIGHT ADJ. AY.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$209.99

$

Usually ships in 3-6 days

0

Toro 683195

REAR AXLE BEARING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$31.99

$

In Stock, only 2 left!

0

Toro 683195

REAR AXLE BEARING

Note: NOTE: Parts shown with bullet included with assembly above.

$31.99

$

In Stock, only 2 left!

0

Toro 603615

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 603615

FITTING LINCOLN

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

59

Toro 684342

HEIGHT ADJ. AY.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$216.99

$

Usually ships in 3-6 days

0

60

Toro 683195

REAR AXLE BEARING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$31.99

$

In Stock, only 2 left!

0

60

Toro 683195

REAR AXLE BEARING

Note: NOTE: Parts shown with bullet included with assembly above.

$31.99

$

In Stock, only 2 left!

0

61

Toro 603615

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Toro 603615

FITTING LINCOLN

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

62

Toro 603773

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

63

Toro 684346

HSG AY-21"

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$729.99

$

Usually ships in 3-6 days

0

64

Toro 610640

Decal
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 8

0

64

Toro 610640

Decal
(Superseded to 43-8480)

Note: NOTE: Parts shown with bullet included with assembly above.

$6.49

$

In Stock, Qty 8

0

65

Toro 604604

Grommet
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

65

Toro 604604

Grommet
(Superseded to 94-1610)

Note: NOTE: Parts shown with bullet included with assembly above.

$0.99

$

In Stock, Qty 20+

0

66

Toro 610860

DECAL SGI

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Toro 610860

DECAL SGI

Note: NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

67

Toro 612495

BRACKET ARGO

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
