684190 - Toro Rear Grass Catcher Assembly HOUSING AND SHROUD GROUP MODELS: C21ZMRA & B Parts Diagram

Rear Grass Catcher Assembly

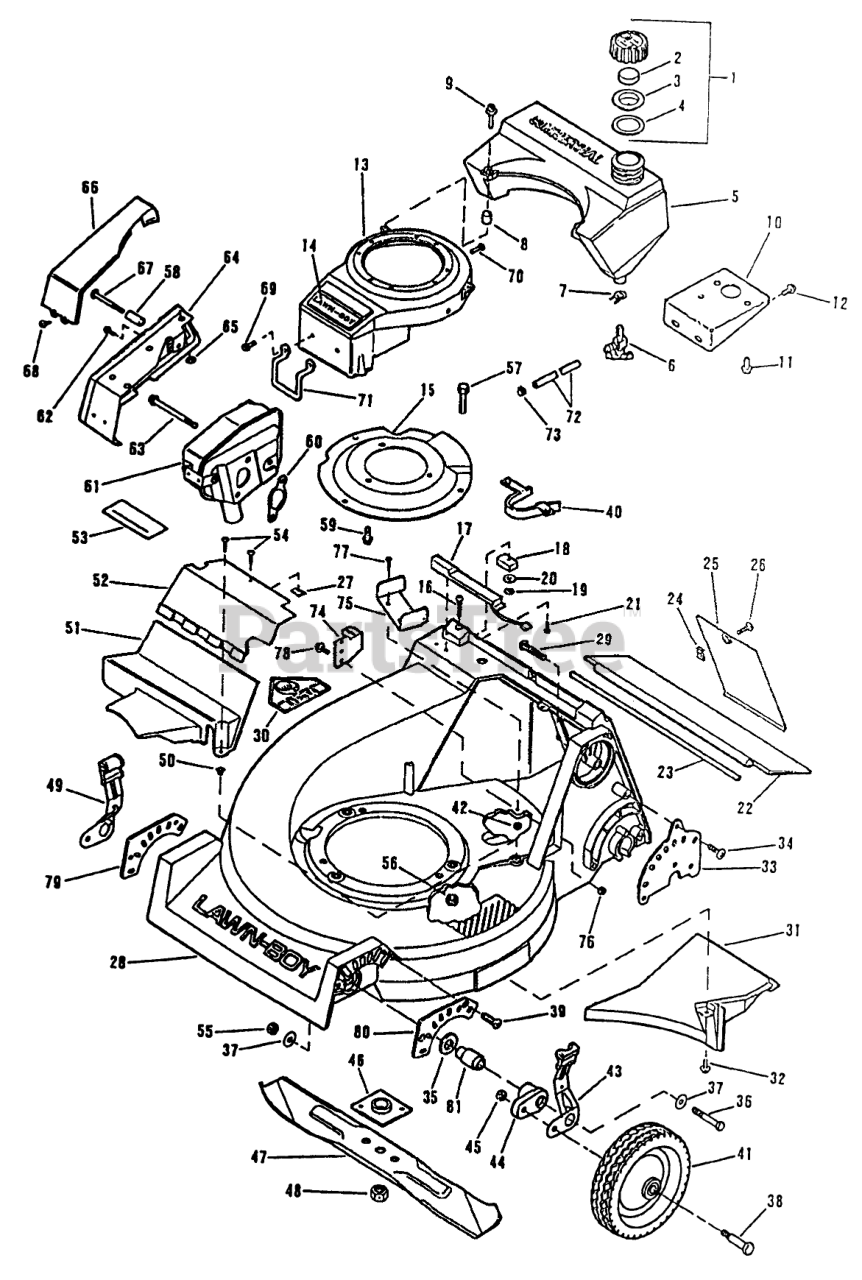

HOUSING AND SHROUD GROUP MODELS: C21ZMRA & B Parts Diagram

  • Title

1

Toro 684106

CAP AY - F/OIL SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Toro 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 10

0

2

Toro 609150

BAFFLE - FOAM SM

Note: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 10

0

3

Toro 613310

Cover
(Superseded to 614271)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

3

Toro 613310

Cover
(Superseded to 614271)

Note: Parts shown with bullet included with assembly above.

$4.99

$

Usually ships in 3-6 days

0

4

Toro 613311

GASKET-FUELCAP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

4

Toro 613311

GASKET-FUELCAP SM

Note: Parts shown with bullet included with assembly above.

$3.49

$

Usually ships in 3-6 days

0

Toro 684314

Fuel Tank Assembly
(Superseded to 684516)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 613817

Fuel Tank
(Superseded to 684516)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Toro 613817

Fuel Tank
(Superseded to 684516)

Note: Parts shown with bullet included with assembly above.

$

$

Not available

6

Toro 677052

VALVE&SCREEN SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, Qty 5

0

6

Toro 677052

VALVE&SCREEN SM

Note: Parts shown with bullet included with assembly above.

$22.99

$

In Stock, Qty 5

0

7

Toro 312387

CLAMP - HOSE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

7

Toro 312387

CLAMP - HOSE S

Note: Parts shown with bullet included with assembly above.

$1.49

$

In Stock, Qty 8

0

8

Toro 614022

Spacer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Toro 614022

Spacer

Note: Parts shown with bullet included with assembly above.

$

$

Not available

9

Toro 613912

SCREW - SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

10

Toro 613819

Fuel Tank Mounting Bracket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Toro 700094

SCREW-HH
(Superseded to 112-0167)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

12

Toro 613337

SCREW HEX WASH SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Toro 684311

SHROUD & APPL S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 614041

APPLIQUE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 614041

APPLIQUE SM

Note: Parts shown with bullet included with assembly above.

$

$

Not available

15

Toro 613206

PLATE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$126.99

$

Usually ships in 3-6 days

0

16

Toro 303724

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Toro 684366

SWITCH ASSEMBLY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Toro 684193

MAGNET ASSY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 130450

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Toro 613625

LOCKWASHER #10

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Toro 613749

SCREW-STAINLESS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Toro 613322

Trailing Shied
(Superseded to 99-6408)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Toro 610026

ROD ADVANCE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Toro 613340

SPEED NUT LARSON

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

25

Toro 613346

DOOR-ACCESS ELECT.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Toro 613339

SCREW-CROSS RECESS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

27

Toro 613341

NUT-SPEED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Toro 684472

Housing Assembly
(Superseded to 684687)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Toro 613321

BOLT - RIBBED NECK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Toro 613321

BOLT - RIBBED NECK

Note: Parts shown with bullet included with assembly above.

$

$

Not available

30

Toro 610640

Decal
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 8

0

30

Toro 610640

Decal
(Superseded to 43-8480)

Note: Parts shown with bullet included with assembly above.

$6.49

$

In Stock, Qty 8

0

31

Toro 613289

CHUTE BAFFLE NYL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$39.99

$

Usually ships in 3-6 days

0

31

Toro 613289

CHUTE BAFFLE NYL

Note: Parts shown with bullet included with assembly above.

$39.99

$

Usually ships in 3-6 days

0

32

Toro 608418

Screw
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 7

0

32

Toro 608418

Screw
(Superseded to 46-6811)

Note: Parts shown with bullet included with assembly above.

$3.49

$

In Stock, Qty 7

0

Toro 613910

WASHER
(Superseded to 5-3177)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

Toro 613910

WASHER
(Superseded to 5-3177)

Note: Parts shown with bullet included with assembly above.

$2.49

$

Usually ships in 3-6 days

0

33

Toro 613323

PLATE HGT CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

34

Toro 613381

SCREW-BUTTON HEAD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 15

0

35

Toro 614163

WASHER, PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Toro 613320

SCREW - HEX HEAD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Toro 610361

WASHER PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

38

Toro 614028

BOLT-WHEEL-SHOULDR

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Toro 614166

SCREW,FLAT HEAD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Toro 613809

GUIDE BELT SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Toro 683464

WHEEL/TIRE ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$79.99

$

Usually ships in 3-6 days

0

42

Toro 611258

NUT C/LOCK E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

43

Toro 684220

KNOB & SPRING CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Toro 613917

ARM HGT ADJ BLACK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$91.99

$

Usually ships in 3-6 days

0

45

Toro 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 12

0

Toro 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 12

0

46

Toro 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 11

0

47

Toro 683682

21" Blade
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$29.99

$

In Stock, Qty 20+

0

48

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 7

0

49

Toro 684219

KNOB & SPRING CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Toro 611380

NUT-CLIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

51

Toro 613532

COVER-DRIVE-LOWER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Toro 684547

COVER-UPPER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Toro 613840

DECAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Toro 613840

DECAL

Note: Parts shown with bullet included with assembly above.

$

$

Not available

54

Toro 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

55

Toro 603773

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

56

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

57

Toro 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

58

Toro 613371

SPACER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Toro 613483

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Toro 613266

GASKET - EXH SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Toro 684091

Muffler
(Superseded to 684579)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Toro 700056

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Toro 613282

SCREW-SEMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Toro 684299

GUARD AY-MUFFLER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$130.99

$

Usually ships in 3-6 days

0

65

Toro 613329

NUT-PUSH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

65

Toro 613329

NUT-PUSH

Note: Parts shown with bullet included with assembly above.

$1.99

$

Usually ships in 3-6 days

0

66

Toro 613760

COVER-MUFFLER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Toro 613760

COVER-MUFFLER

Note: Parts shown with bullet included with assembly above.

$

$

Not available

67

Toro 613372

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Toro 613576

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Toro 613814

SCREW-HEX FL SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Toro 613281

SCREW SM
(Superseded to 3274-31)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

71

Toro 613816

GUARD-SPK.PLUG.SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

72

Toro 613866

GAS LINE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

73

Toro 613489

HOSE CLAMP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

74

Toro 613580

ANCHOR-CABLE
(Superseded to 115-4453)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

75

Toro 613582

BELT GUIDELB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

76

Toro 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

77

Toro 145984

SCREW M-EX 5/24

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

78

Toro 609891

Screw
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

79

Toro 614164

RH PLATE HEIGHT ADJ LB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

80

Toro 614165

LH PLATE HEIGHT ADJ LB

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

81

Toro 614161

BUSHING,FRT HT ADJ

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
