684190 - Toro Rear Grass Catcher Assembly HOUSING AND SHROUD GROUP MODELS: M21ZPRB, C & D Parts Diagram

Rear Grass Catcher Assembly

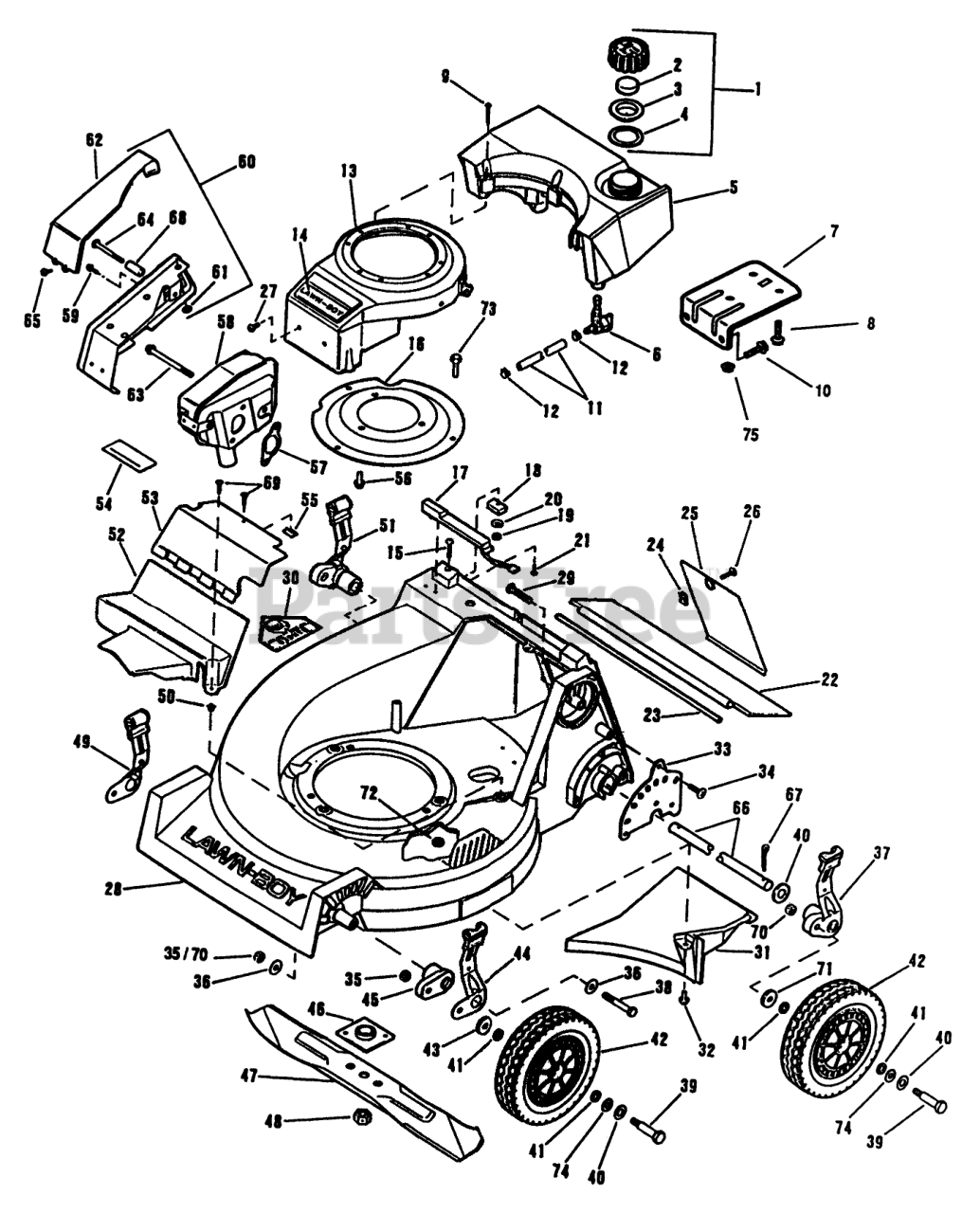

HOUSING AND SHROUD GROUP MODELS: M21ZPRB, C & D Parts Diagram

  • Title

1

Toro 684106

CAP AY - F/OIL SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Toro 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 10

0

2

Toro 609150

BAFFLE - FOAM SM

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$5.49

$

In Stock, Qty 10

0

3

Toro 613310

Cover
(Superseded to 614271)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

3

Toro 613310

Cover
(Superseded to 614271)

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$4.99

$

Usually ships in 3-6 days

0

4

Toro 613311

GASKET-FUELCAP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

4

Toro 613311

GASKET-FUELCAP SM

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$3.49

$

Usually ships in 3-6 days

0

5

Toro 684389

Fuel Tank
(Superseded to 93-1211)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$217.99

$

Usually ships in 3-6 days

0

6

Toro 684093

Shut-OffValve-Fuel

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Toro 614173

Bracket-Fuel Tank

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Toro 614181

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Toro 613330

Screw-FuelTank

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Toro 613337

SCREW HEX WASH SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Toro 613531

GAS LINE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Toro 613489

HOSE CLAMP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

13

Toro 684429

Shroud and Applique
(Superseded to 93-1219)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 614041

APPLIQUE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Toro 614041

APPLIQUE SM

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$

$

Not available

15

Toro 303724

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 605119

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

16

Toro 613207

PLATE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Toro 684192

SWITCH AY DELTA

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684366

SWITCH ASSEMBLY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Toro 684193

MAGNET ASSY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Toro 130450

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Toro 613625

LOCKWASHER #10

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Toro 613749

SCREW-STAINLESS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Toro 613322

Trailing Shied
(Superseded to 99-6408)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Toro 610026

ROD ADVANCE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Toro 613340

SPEED NUT LARSON

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

25

Toro 613346

DOOR-ACCESS ELECT.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Toro 613339

SCREW-CROSS RECESS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

27

Toro 613281

SCREW SM
(Superseded to 3274-31)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

28

Toro 684467

Housing Assy
(Superseded to 684688)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1458.99

$

Usually ships in 3-6 days

0

Toro 684229

Housing Assembly
(Superseded to 684689)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Toro 613321

BOLT - RIBBED NECK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Toro 613321

BOLT - RIBBED NECK

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$

$

Not available

30

Toro 610640

Decal
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 8

0

30

Toro 610640

Decal
(Superseded to 43-8480)

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$6.49

$

In Stock, Qty 8

0

31

Toro 613289

CHUTE BAFFLE NYL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$39.99

$

Usually ships in 3-6 days

0

31

Toro 613289

CHUTE BAFFLE NYL

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$39.99

$

Usually ships in 3-6 days

0

32

Toro 608418

Screw
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 7

0

32

Toro 608418

Screw
(Superseded to 46-6811)

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$3.49

$

In Stock, Qty 7

0

Toro 613910

WASHER
(Superseded to 5-3177)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

Toro 613910

WASHER
(Superseded to 5-3177)

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$2.49

$

Usually ships in 3-6 days

0

33

Toro 613323

PLATE HGT CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

34

Toro 613381

SCREW-BUTTON HEAD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

35

Toro 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 12

0

Toro 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 12

0

36

Toro 610361

WASHER PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

37

Toro 684407

HT. ADJ. ARM AY-L

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684524

Spring Arm, Knob & Brgs

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684524

Spring Arm, Knob & Brgs

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$

$

Not available

Toro 684525

BEARING SERVICE AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684525

BEARING SERVICE AY

Note: NOTE: Parts shown with two bullets included with assembly or kit above.

$

$

Not available

38

Toro 613320

SCREW - HEX HEAD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Toro 614139

BOLT WHEEL QUAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Toro 605256

WASHER-PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 3 left!

0

41

Toro 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

42

Toro 683179

WHEEL&TIRE 8" TRI

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$104.99

$

In Stock, only 2 left!

0

43

Toro 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

44

Toro 684220

KNOB & SPRING CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Toro 613917

ARM HGT ADJ BLACK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$91.99

$

Usually ships in 3-6 days

0

Toro 613319

FRT HEIGHT ADJ ARM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Toro 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 9

0

47

Toro 683682

21" Blade
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$29.99

$

In Stock, Qty 14

0

48

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 5

0

49

Toro 684219

KNOB & SPRING CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Toro 611380

NUT-CLIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

51

Toro 684406

HT. ADJ. ARM AY-R

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684523

HEIGHT ADL/BRG SER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Toro 684523

HEIGHT ADL/BRG SER

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$

$

Not available

52

Toro 613532

COVER-DRIVE-LOWER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Toro 684547

COVER-UPPER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Toro 613840

DECAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Toro 613840

DECAL

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$

$

Not available

55

Toro 613341

NUT-SPEED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Toro 613483

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Toro 613266

GASKET - EXH SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Toro 684091

Muffler
(Superseded to 684579)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Toro 700056

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Toro 684157

MUFFLER GUARD AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$173.99

$

Usually ships in 3-6 days

0

61

Toro 613329

NUT-PUSH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

61

Toro 613329

NUT-PUSH

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$1.99

$

Usually ships in 3-6 days

0

62

Toro 613378

COVER MUFFLER CP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Toro 613378

COVER MUFFLER CP

Note: NOTE: Parts shown with bullet included with assembly or kit above.

$

$

Not available

63

Toro 613282

SCREW-SEMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Toro 613372

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

65

Toro 613576

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Toro 613850

OBS ROD HGT ADJ R GLM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$52.99

$

Usually ships in 3-6 days

0

67

Toro 701598

CotterPin
(Superseded to 3272-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 14

0

68

Toro 613371

SPACER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Toro 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

Toro 609807

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Toro 603773

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

Toro 603773

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

71

Toro 603620

WASHER WROUGHT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

72

Toro 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

73

Toro 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

74

Toro 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

75

Toro 700098

NUT SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
