685 (242-685-100) - Cub Cadet Walk-Behind Blower (1982) Air Duct, Door and Nozzle Assemblies Parts Diagram

Walk-Behind Blower

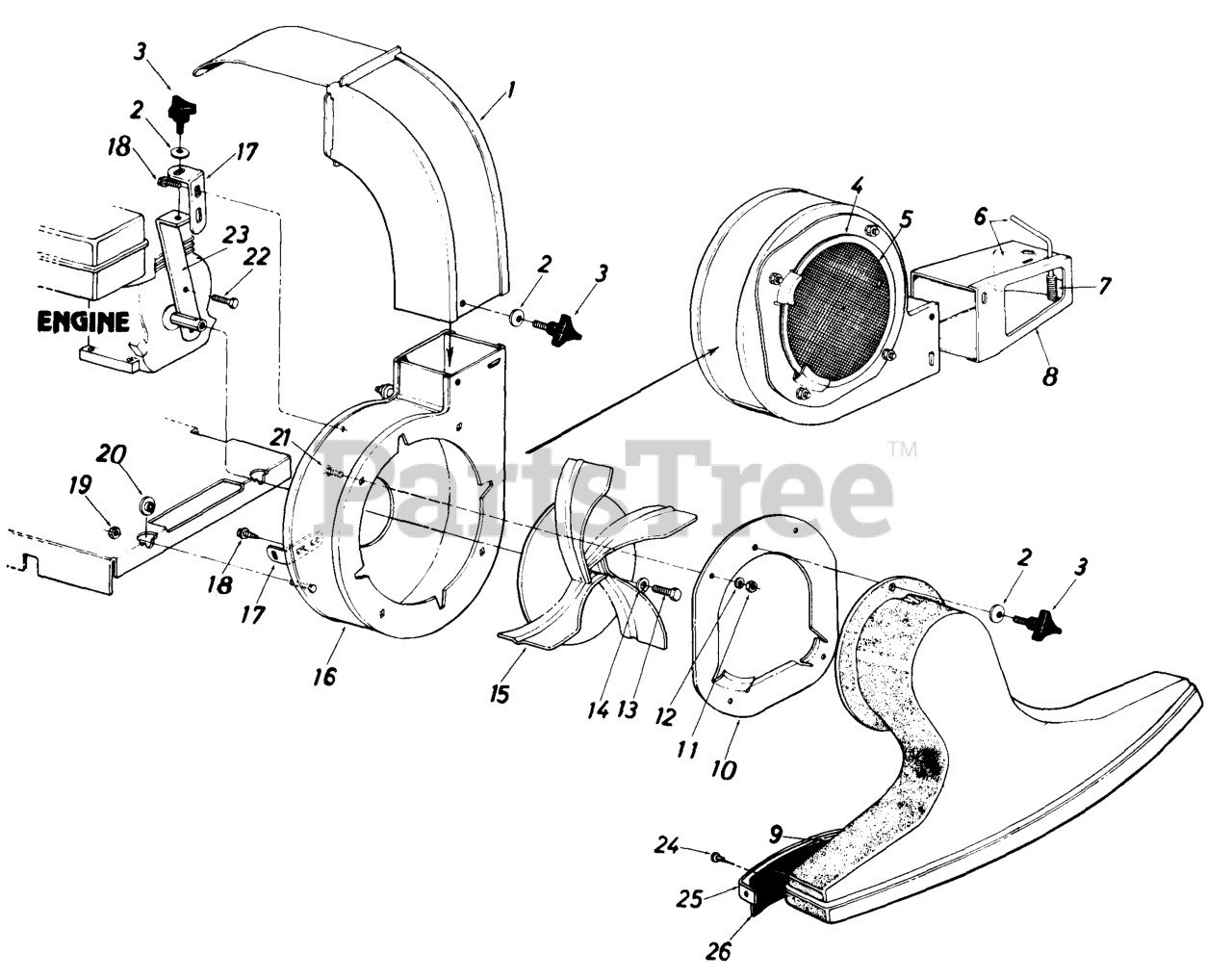

Air Duct, Door and Nozzle Assemblies Parts Diagram

  • Title

1

Cub Cadet 14532

Air Duct Assembly

Note: Color Code - 499; Code N

Variations

Cub Cadet 14532-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14532-0637

DUCT-AIR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14532-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14532-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

2

Cub Cadet 736-0242

Belleville Wash. .34" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0170

3-Arm Thumb Scr. 5/16-18 x .75" Lg.

$10.99

$

In Stock, Qty 8

0

4

Cub Cadet 731-0516

Trim Strip 36.5" Lg.
(Superseded to 731-0511)

Note: Code N

$3.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 14560

Impeller Guard

Note: Code N

$

$

Not available

6

Cub Cadet 14549

Door Assembly
(Superseded to 14479)

Note: Code N

$

$

Not available

7

Cub Cadet 732-0335

Compression Spring

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet 14546

Directional Discharge Ass'y.
(Superseded to 14479)

Note: (Includes Ref. No. 6 & 7); Code N

$

$

Not available

9

Cub Cadet 14562

Nozzle Ass'y.

Note: Code N

$

$

Not available

10

Cub Cadet 14563

Nozzle Plate Ass'y.
(Superseded to 14563A)

Note: Color Code - 499; Code N

$

$

Not available

11

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 8

0

14

Cub Cadet 736-0217

L.-Wash. 3/8" I.D. H.D.

$3.99

$

In Stock, Qty 13

0

15

Cub Cadet 14557

Air Vane Plate Ass'y. w/pulley
(Superseded to 14557A-0637)

Note: Color Code - 499; Code N

$

$

Not available

16

Cub Cadet 14542

Blower Housing Complete

Note: Color Code - 499; Code N

$

$

Currently unavailable

17

Cub Cadet 14541

Right Angle Bracket
(Superseded to 14541-0637)

Note: Code N

Variations

Cub Cadet 14541-0637

BRACKET-RIGHT ANGL - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 710-0600

Hex Wash. Hd. Self Tap Scr. 5/16-18 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0289

Shoulder Spacer .50" I.D. x .135
(Superseded to 936-0289)

$6.49

$

In Stock, only 1 left!

0

21

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0170

Hex Locking Bolt 5/16-24 x .62" Lg.

$6.49

$

In Stock, only 1 left!

0

23

Cub Cadet 14539

Housing - Engine Brace Ass'y.
(Superseded to 14539-0637)

Variations

Cub Cadet 14539-0637

HOUSING-ENG BRACE - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 728-0143

Pop Rivet
(Superseded to 928-0180)

Note: (5 Required.)

$

$

Not available

25

Cub Cadet 14569

Wiper Retaining Strip

Note: Code N

Variations

Cub Cadet 14569-0637

WIPER RETA - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 735-0214

Nozzle Wiper

Note: Code N

$34.99

$

Usually ships in 3-6 days

0
