685 (244-685-100) - Cub Cadet Walk-Behind Blower (1994) Cylinder Assembly And Throttle Accessories Parts Diagram

Walk-Behind Blower

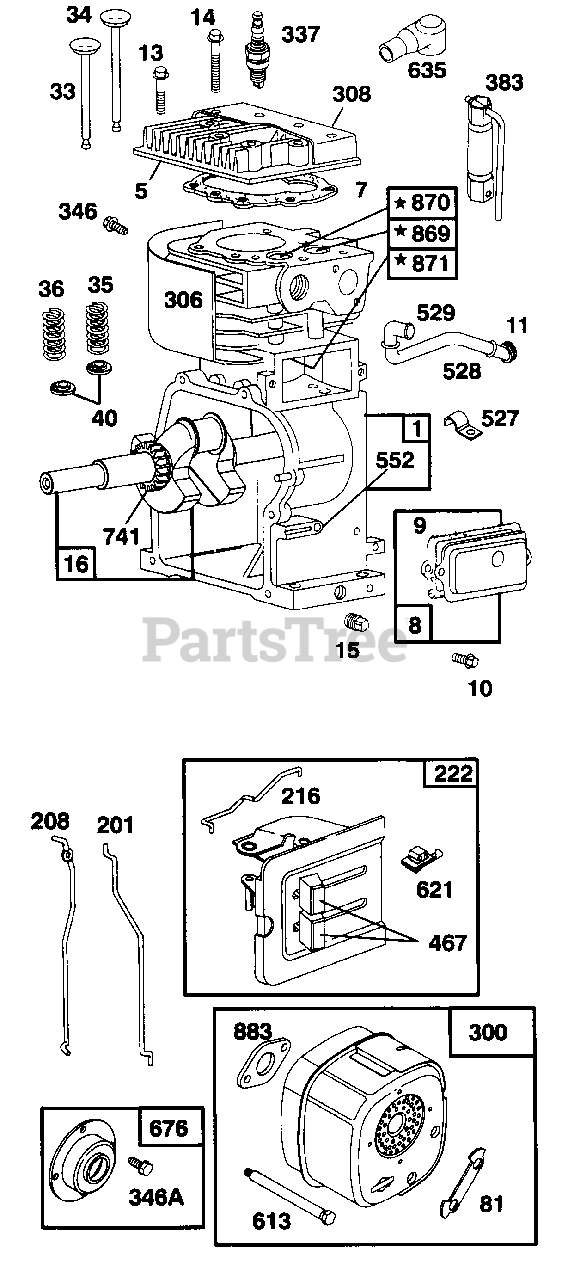

Cylinder Assembly And Throttle Accessories Parts Diagram

  • Title

Cub Cadet BS-495956

Short Block

$

$

Not available

1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

5

Cub Cadet BS-214040

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272157

Gasket-Cylinder Head
(Superseded to BS-272157S)

Note: Included in Gasket Set, P/N BS-495603

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-495774

Breather Assy.
(Superseded to BS-791779)

$15.99

$

In Stock, Qty 6

0

9

Cub Cadet BS-27549

Gasket-Valve Cover

Note: Included in Gasket Set, P/N BS-495603

$

$

Not available

10

Cub Cadet BS-94621

Screw-Breather Mtg.
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-66578

Grommet-Breather
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-94221

Screw-Cylinder Head (2-3/32" Long)
(Superseded to BS-691640)

Note: Note: BS-94733 Stud

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet BS-94679

Screw-Cylinder Head (2-15/32" Long)

$

$

Not available

15

Cub Cadet BS-94387

Plug-Pipe
(Superseded to BS-691686)

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet BS-495649

Crankshaft

Note: Note: To Replace Crankshaft Gear Pin Order Part No. BS-230978.

$131.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-211119

Valve-Exhaust
(Superseded to BS-211119S)

$

$

Not available

34

Cub Cadet BS-261044

Valve-Intake
(Superseded to BS-261044S)

$

$

Not available

35

Cub Cadet BS-260552

Spring-Intake Valve

$5.49

$

In Stock, Qty 9

0

36

Cub Cadet BS-26478

Spring-Exhaust Valve

$6.49

$

In Stock, Qty 5

0

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

306

Cub Cadet BS-224820

Shield-Cylinder

$

$

Not available

308

Cub Cadet BS-224738

Cover-Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark

$3.49

$

In Stock, Qty 20+

0

346

Cub Cadet BS-94680

Screw-Hex. Head
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 12

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

527

Cub Cadet BS-223786

Clamp-Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231550

Tube-Breather

$12.99

$

Usually ships in 2-12 days

0

529

Cub Cadet BS-67838

Grommet-Breather Tube
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

552

Cub Cadet BS-231079

Bushing-Gov. Crank

$

$

Not available

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 20+

0

741

Cub Cadet BS-261696

Gear-Timing

$52.99

$

Usually ships in 2-12 days

0

869

Cub Cadet BS-211787

Seat-Int. Valve (Std.)

$

$

Not available

870

Cub Cadet BS-211172

Seat-Ex. Valve (Std.)

$

$

Not available

871

Cub Cadet BS-262001

Guide-Exhaust Valve

Note: Note: BS-63709 Guide-Intake Valve

$13.99

$

Usually ships in 2-12 days

0

81

Cub Cadet BS-222263

Lock-Screw

$

$

Not available

201

Cub Cadet BS-262280

Link-Governor

$

$

Not available

208

Cub Cadet BS-262279

Rod-Control
(Superseded to BS-691813)

$9.49

$

In Stock, Qty 5

0

216

Cub Cadet BS-262359

Link-Choke
(Superseded to BS-691824)

$9.99

$

In Stock, Qty 8

0

222

Cub Cadet BS-490649

Panel Control

$67.99

$

Usually ships in 2-12 days

0

300

Cub Cadet BS-390918

Muffler-Exhaust Uses: BS-222361 Brace-Muffler

$

$

Not available

346A

Cub Cadet BS-93705

Screw-Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

467

Cub Cadet BS-280715

Knob-Control
(Superseded to BS-692295)

$9.49

$

In Stock, only 3 left!

0

613

Cub Cadet BS-94042

Screw-Hex. Head

$

$

Not available

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

676

Cub Cadet BS-395700

Deflector-Exhaust

$

$

Currently unavailable

883

Cub Cadet BS-272309

Gasket-Exhaust
(Superseded to BS-692237)

Note: Included in Gasket Set, P/N BS-495603

$5.49

$

In Stock, Qty 20+

0

Cub Cadet BS-495603

Gasket Set

Note: Includes Ref. No. 7, 9 & 883

$32.99

$

In Stock, Qty 20+

0
