685 (244-685-100) - Cub Cadet Walk-Behind Blower (1994) Power Vacuum - Part I Parts Diagram

Walk-Behind Blower

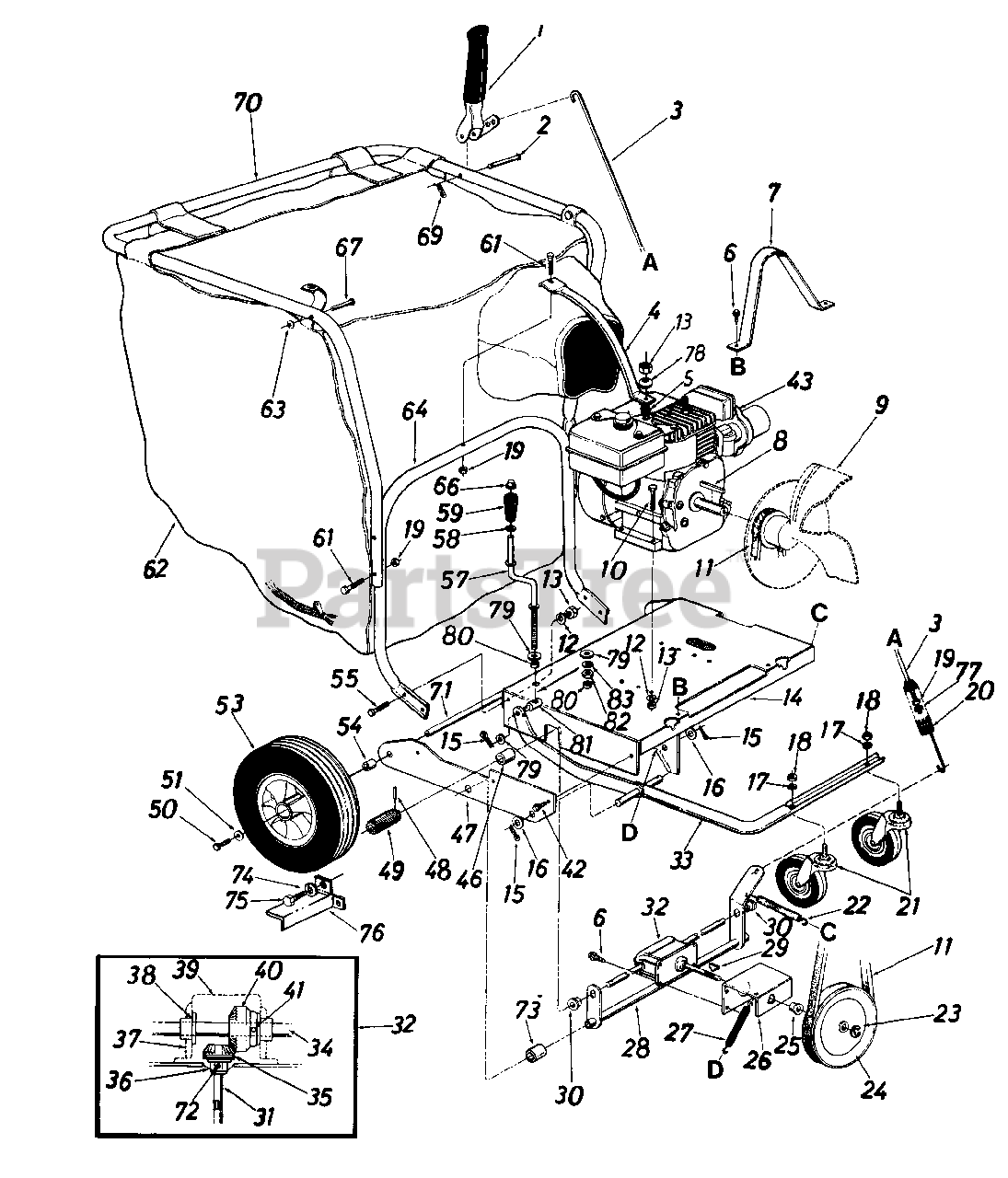

Power Vacuum - Part I Parts Diagram

  • Title

1

Cub Cadet 05778B

Clutch Grip Ass'y.
(Superseded to 05778B-0637)

$

$

Not available

2

Cub Cadet 711-0679

Clevis Pin .375" Dia. x 1.88"
(Superseded to 711-0679A)

$13.99

$

In Stock, only 2 left!

0

3

Cub Cadet 747-0154

Clutch Rod 32" Lg.

$

$

Not available

4

Cub Cadet 749-0787

Handle Brace

$

$

Not available

5

Part of Engine

$

$

Not available

6

Cub Cadet 710-0892

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

7

Cub Cadet 14558

Belt Guard

Variations

Cub Cadet 14558-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 714-0114

Square Key 1/4" x 2" Lg.
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

9

Cub Cadet 14557A

Air Vane Plate Ass'y. w/Pulley

$

$

Not available

10

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet 754-0219

"V"-Belt
(Superseded to 954-0219)

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 16454

Engine Mounting Frame Ass'y.

Variations

Cub Cadet 16454-0637

FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 16454-0638

FRAME ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

15

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1" Lg.

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0187

Fl-Wash. .63" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

20

Cub Cadet 732-0411

Extension Spring .78" O.D. x .75" Lg.

$

$

Not available

21

Cub Cadet 734-1036

Swivel Caster Wheel 5" Dia. x 1 .25"

$70.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0409

Extension Spring .38" O.D. x 7.50" Lg.
(Superseded to 932-0409)

$

$

Not available

23

Cub Cadet 716-0104

Snap "E"-Ring .50" Dia. Shaft
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

24

Cub Cadet 756-0367

"V"-Pulley 5/8" x 6.50" O.D.

$

$

Not available

25

Cub Cadet 748-0142

Flange Bearing .502" I.D.

$14.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 14570

Gear Box Mounting Bracket

Variations

Cub Cadet 14570-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 732-0376

Extension Spring .75" O.D. x 3.28" Lg.
(Superseded to 932-0376)

$

$

Not available

28

Cub Cadet 14565

Clutch Bracket Ass'y.

$

$

Currently unavailable

29

Cub Cadet 714-0229

#2 Woodruff Key 3/32" Dia. x .81" Lg.

$

$

Not available

30

Cub Cadet 748-0227A

Hex Flange Bearing Bronze .625" I.D.
(Superseded to 948-0227A)

$7.99

$

In Stock, Qty 20+

0

31

Cub Cadet 738-0516

Pinion Shaft .50" Dia. x 5"

$

$

Not available

32

Cub Cadet 717-0493

Gear Box Ass'y. Comp.

$

$

Currently unavailable

33

Cub Cadet 16273

Caster Arm Ass'y.

Variations

Cub Cadet 16273-0483

Double Caster Arm Assembly, Black - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 16273-0498

Double Caster Arm Assembly, Black - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 16273-0637

Double Caster Arm Assembly, Black - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 16273-0638

Double Caster Arm Assembly, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 16273-0648

Double Caster Arm Assembly, Black - TECH GRAY (0648)

$

$

Not available

Cub Cadet 16273-0662

Double Caster Arm Assembly, Black - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 16273-0674

Double Caster Arm Assembly, Black - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 16273-0691

Double Caster Arm Assembly, Black - BLACK JACK (0691)

$

$

Not available

Cub Cadet 16273-0709

Double Caster Arm Assembly, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

34

Cub Cadet 08348

Drive Shaft

$

$

Not available

35

Cub Cadet 748-0136

Bevel Gear .50" I.D. x 14 Teeth

$

$

Not available

36

Cub Cadet 748-0108

Flange Bearing .503" I.D.
(Superseded to 948-0108)

$8.49

$

In Stock, Qty 11

0

37

Cub Cadet 753-0218

Gear Box

Note: (Incl. Ref. 36 & 38)

$

$

Not available

38

Cub Cadet 748-0110

Flange Bearing .630" I.D.

$8.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 08187

Gear Box Cover

$

$

Currently unavailable

40

Cub Cadet 748-0135

Bevel Gear .62" I.D. x 28 Teeth

$

$

Not available

41

Cub Cadet 715-0246

Spring Pin Spiral 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

42

Cub Cadet 710-0726

Hex Wash Hd AB-Tap Scr. 5/16" x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

43

Engine

$

$

Not available

46

Cub Cadet 748-0201

Spacer .63" I.D. x .88" O.D. x .56" Lg.
(Superseded to 948-0201)

$

$

Not available

47

Cub Cadet 14530

Side Plate

Variations

Cub Cadet 14530-0483

USE 14530-0637 PLATE-SIDE-RH - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 14530-0498

USE 14530-0637 PLATE-SIDE-RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14530-0499

PLATE-SIDE-RH - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 14530-0637

PLATE-SIDE-RH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14530-0638

USE 14530-0637 PLATE-SIDE-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14530-0662

PLATE-SIDE (RH) - OYSTER GRAY (0662)

$

$

Not available

$

$

48

Cub Cadet 715-0247

Spring Pin Spiral 3/16" Dia. x 1" Lg.
(Superseded to 915-0247)

$

$

Not available

49

Cub Cadet 748-0288

Drive Pinion

$22.99

$

In Stock, only 1 left!

0

50

Cub Cadet 710-0170

Hex Locking Bolt 5/16-24 x .62" Lg.

$6.49

$

In Stock, only 1 left!

0

51

Cub Cadet 736-0159

Fl-Wash. .34" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 734-1035

Wheel Ass'y. Comp. 12" x 3"

Note: (Incl. Ball Bearings)

$118.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 750-0194

Spacer .63" I.D. x 1.0" O.D. x .94" Lg.

$8.99

$

In Stock, only 4 left!

0

55

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 747-0542

Height Adjustment Crank

$20.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 736-0117

Fl-Wash. .385" I.D. x .62" O.D.
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

59

Cub Cadet 720-0171

Crank Knob
(Superseded to 920-0171)

$14.99

$

In Stock, only 1 left!

0

61

Cub Cadet 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, only 2 left!

0

62

Cub Cadet 764-0162A

Vacuum Bag--Felt

$

$

Not available

63

Cub Cadet 1539-019

Push Speed Nut .25" Dia. Stud

$3.99

$

In Stock, Qty 16

0

64

Cub Cadet 749-0785

Lower Handle

Variations

Cub Cadet 749-0785-0637

USE 749-0785 HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

66

Cub Cadet 726-0100

Push Nut 3/8" Dia.

$3.99

$

In Stock, Qty 8

0

67

Cub Cadet 711-0737

Stud Pin .250" Dia. x 1.75"
(Superseded to 911-0737)

$4.49

$

In Stock, Qty 11

0

69

Cub Cadet 714-0145

Internal Cotter Pin 3/8" Dia.

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 749-0786

Upper Handle

$

$

Currently unavailable

71

Cub Cadet 738-0185

Rear Axle

$

$

Not available

72

Cub Cadet 715-0249

Spring Roll Pin 5/32" Dia. x 1.12
(Superseded to 915-0249)

$6.49

$

In Stock, only 4 left!

0

73

Cub Cadet 750-0142

Spacer .82" I.D. x 1.0" O.D. x .305 Lg.
(Superseded to 950-0142)

$

$

Not available

74

Cub Cadet 736-0175

L-Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

75

Cub Cadet 710-0352

Hex Self-Tap Scr. 1/4" x 3/8" Lg.

$4.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 14556

R.H. Pinion Guard

Variations

Cub Cadet 14556-0637

GUARD-PINI - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 14555

L.H. Pinion Guard (Not Shown)

Variations

Cub Cadet 14555-0637

GUARD-PINI - POWDER BLACK (0637)

$

$

Not available

$

$

77

Cub Cadet 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$5.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 736-0242

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

79

Cub Cadet 736-0300

Fl-Wash. .35" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

80

Cub Cadet 750-0528

Spacer .38" I.D. x .50" O.D. x .18" Lg.
(Superseded to 950-0528)

$

$

Not available

81

Cub Cadet 711-0797

Ferrule 3/8-8 x .38" Dia.
(Superseded to 911-0797)

$

$

Not available

82

Cub Cadet 712-0354

Hex Nut 3/8-8 Thd.
(Superseded to 912-0354)

$

$

Not available

83

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 737-0223

10 oz. Tube Benalene #372-0 Grease (3 oz. Req'd.)
(Superseded to 737-0300A)

$32.99

$

In Stock, Qty 20+

0
