685 (246-685-100) - Cub Cadet Walk-Behind Blower (1986) Power Vacuum Part 1 Parts Diagram

Walk-Behind Blower

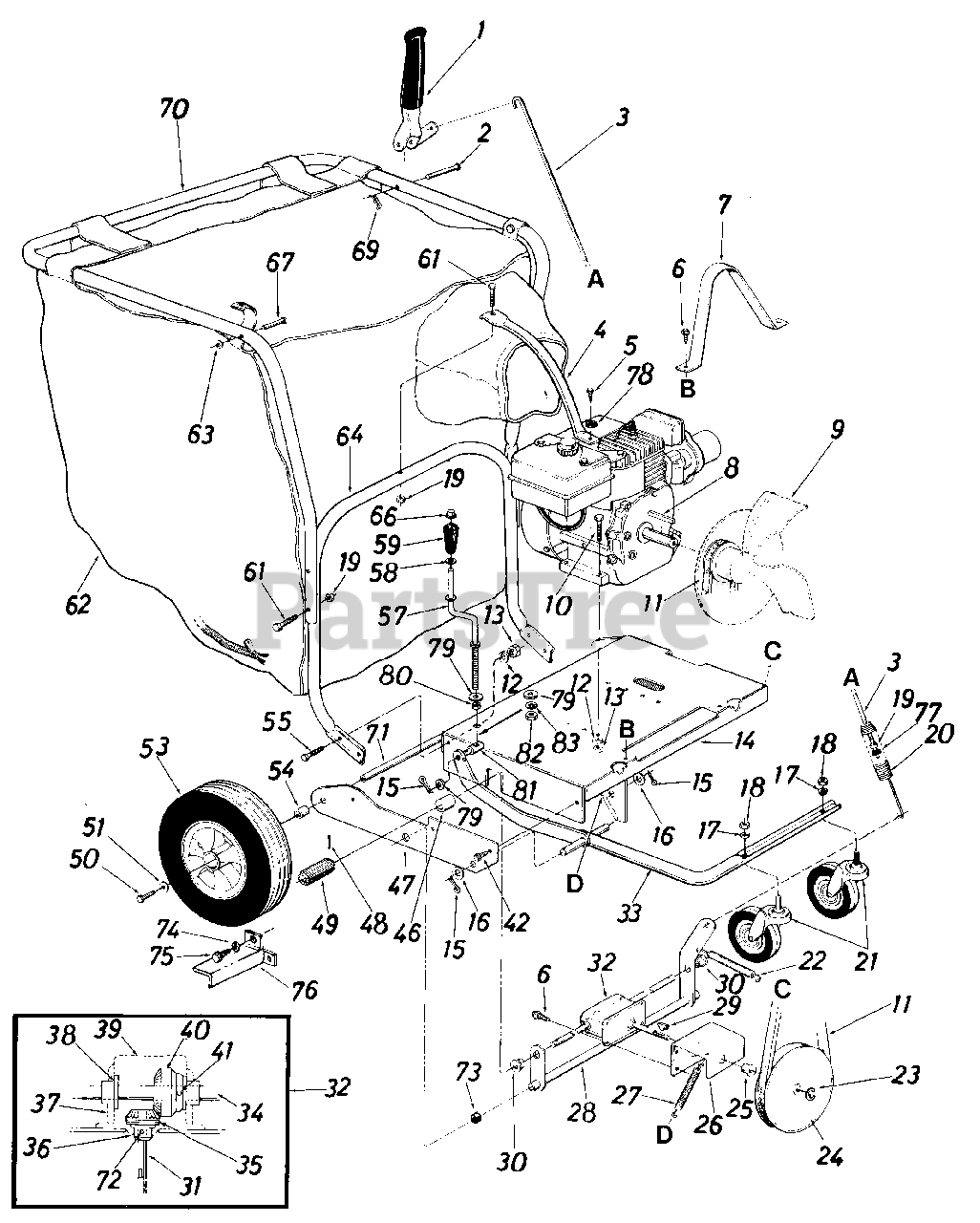

Power Vacuum Part 1 Parts Diagram

  • Title

1

Cub Cadet 05778

GRIP ASSY-CLUTCH
(Superseded to 05778B-0637)

$

$

Not available

2

Cub Cadet 711-0679

PIN-CLEVIS
(Superseded to 711-0679A)

$13.99

$

In Stock, only 2 left!

0

3

Cub Cadet 747-0154

ROD-LOCKOUT

$

$

Not available

4

Cub Cadet 749-0482

BRACE-HANDLE PAINTED
(Superseded to 749-0787)

$

$

Not available

5

Note: PART OF ENGINE

$

$

Not available

6

Cub Cadet 710-0892

SCREW-HEX L-WASH HD
(Superseded to 910-0892)

$

$

Not available

7

Cub Cadet 14558

GUARD-BELT

Variations

Cub Cadet 14558-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 714-0114

KEY-SQ 1/4 X 2.00
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

9

Cub Cadet 14557

PLATE ASSY-VANE
(Superseded to 14557A-0637)

$

$

Not available

10

Cub Cadet 710-0442

SCREW-HEX 5/16-18 X 1.50
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 754-0219

BELT-V 1/2 X 26
(Superseded to 954-0219)

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 16454

FRAME ASSY-ENG MTG

Note: Color Code 499

Variations

Cub Cadet 16454-0637

FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 16454-0638

FRAME ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

15

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0187

WASHER-FL-.640ID X 1.24OD X .06HDN

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0206

NUT-HEX 1/2-13

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

20

Cub Cadet 732-0411

SPRING

$

$

Not available

21

Cub Cadet 734-1036

WHEEL ASSY-CASTER

$70.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0409

SPRING-EXTENSION
(Superseded to 932-0409)

$

$

Not available

23

Cub Cadet 716-0104

RING-E FOR .500 SHAFT
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

24

Cub Cadet 756-0367

PULLEY

$

$

Not available

25

Cub Cadet 748-0142

BEARING-FLANGE

$14.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 14570

BRACKET-GEAR BOX

Variations

Cub Cadet 14570-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 732-0376

SPRING-TENSION
(Superseded to 932-0376)

$

$

Not available

28

Cub Cadet 14565

BRACKET ASSY-CLUTCH

$

$

Currently unavailable

29

Cub Cadet 714-0229

KEY-WOODRUFF #2-3/32X1/2 DIA-HDN

$

$

Not available

30

Cub Cadet 748-0227

BEARING-HEX FLANGE
(Superseded to 948-0227A)

$7.99

$

In Stock, Qty 20+

0

31

Cub Cadet 738-0516

SHAFT-PINION

$

$

Not available

32

Cub Cadet 717-0493

GEAR CASE ASSY-COMP

$

$

Currently unavailable

33

Cub Cadet 16273

ARM ASSY-CASTER-DBL

Variations

Cub Cadet 16273-0483

Double Caster Arm Assembly, Black - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 16273-0498

Double Caster Arm Assembly, Black - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 16273-0637

Double Caster Arm Assembly, Black - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 16273-0638

Double Caster Arm Assembly, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 16273-0648

Double Caster Arm Assembly, Black - TECH GRAY (0648)

$

$

Not available

Cub Cadet 16273-0662

Double Caster Arm Assembly, Black - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 16273-0674

Double Caster Arm Assembly, Black - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 16273-0691

Double Caster Arm Assembly, Black - BLACK JACK (0691)

$

$

Not available

Cub Cadet 16273-0709

Double Caster Arm Assembly, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

34

Cub Cadet 08348

SHAFT-DRIVE-22IN-HW

$

$

Not available

35

Cub Cadet 748-0136

PINION-14T

$

$

Not available

36

Cub Cadet 748-0108

BEARING-FLANGE .503 ID
(Superseded to 948-0108)

$8.49

$

In Stock, Qty 11

0

37

Cub Cadet 08189

KIT-GEAR BOX ASSY
(Superseded to 753-0218)

$

$

Not available

38

Cub Cadet 748-0110

BEARING-FLANGE

$8.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 08187

COVER-GEAR BOX

$

$

Currently unavailable

40

Cub Cadet 748-0135

GEAR-BEVEL-.62 ID 28T

$

$

Not available

41

Cub Cadet 715-0246

PIN-SPRING SPIR 3/16 X 1.25
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

42

Cub Cadet 710-0726

SCREW-HEX HD TAP

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 748-0201

SPACER
(Superseded to 948-0201)

$

$

Not available

47

Cub Cadet 14530

PLATE-SIDE-RH

Note: Color Code 499

Variations

Cub Cadet 14530-0483

USE 14530-0637 PLATE-SIDE-RH - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 14530-0498

USE 14530-0637 PLATE-SIDE-RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14530-0499

PLATE-SIDE-RH - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 14530-0637

PLATE-SIDE-RH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14530-0638

USE 14530-0637 PLATE-SIDE-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14530-0662

PLATE-SIDE (RH) - OYSTER GRAY (0662)

$

$

Not available

$

$

48

Cub Cadet 715-0247

PIN-SPRING SPIR 3/16 X 1.00
(Superseded to 915-0247)

$

$

Not available

49

Cub Cadet 748-0288

PINION-DRIVE

$22.99

$

In Stock, only 1 left!

0

50

Cub Cadet 710-1070

BOLT-CARRIAGE

$

$

Not available

51

Cub Cadet 736-0159

WASHER-FL-.344 ID X .88 OD X .063

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 734-1035

WHEEL ASSY W/TIRE

Note: (Includes Ball Bearings)

$118.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 750-0194

HUB

$8.99

$

In Stock, only 4 left!

0

55

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 747-0665

CRANK-HGT ADJUSTMENT

$

$

Currently unavailable

58

Cub Cadet 736-0117

WASHER-FL-.385 ID X .62 OD X .033
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

59

Cub Cadet 720-0171

KNOB W/38 HOLE-BLACK
(Superseded to 920-0171)

$14.99

$

In Stock, only 1 left!

0

61

Cub Cadet 710-0136

SCREW-HEX 1/4-20 X 1.75

$3.99

$

In Stock, only 2 left!

0

62

Cub Cadet 764-0162

BAG-VACUUM FELT

$

$

Not available

63

Cub Cadet 1539-019

NUT-SPECIAL

$3.99

$

In Stock, Qty 16

0

64

Cub Cadet 749-0481

HANDLE-LOWER
(Superseded to 749-0785)

$

$

Not available

66

Cub Cadet 726-0100

NUT-PUSH

$3.99

$

In Stock, Qty 8

0

67

Cub Cadet 711-0737

PIN-STUD
(Superseded to 911-0737)

$4.49

$

In Stock, Qty 11

0

69

Cub Cadet 714-0145

PIN-INTERN COT

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 749-0480

HANDLE-UPPER-BLACK

$

$

Currently unavailable

71

Cub Cadet 738-0185

AXLE-RR

$

$

Not available

72

Cub Cadet 715-0249

PIN-SPRING ROLL 5/32 X 1.12
(Superseded to 915-0249)

$6.49

$

In Stock, only 4 left!

0

73

Cub Cadet 750-0142

SPACER
(Superseded to 950-0142)

$

$

Not available

74

Cub Cadet 736-0175

WASHER-SPRING.270 ID X.51 OD X.030
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

75

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 14556

GUARD-PINION-RH

Variations

Cub Cadet 14556-0637

GUARD-PINI - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 14555

GUARD-PINION-LH

Note: (Not Shown)

Variations

Cub Cadet 14555-0637

GUARD-PINI - POWDER BLACK (0637)

$

$

Not available

$

$

77

Cub Cadet 712-0298

NUT-HEX JAM 1/4-20
(Superseded to 912-0298)

$5.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$3.99

$

In Stock, Qty 20+

0

79

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$3.99

$

In Stock, Qty 20+

0

80

Cub Cadet 750-0528

SPACER
(Superseded to 950-0528)

$

$

Not available

81

Cub Cadet 21989

LINK

$

$

Currently unavailable

82

Cub Cadet 712-0798

NUT-HEX 3/8-16

$3.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0
