685 (246-685-100) - Cub Cadet Walk-Behind Blower (1986) Power Vacuum Part 2 Parts Diagram

Walk-Behind Blower

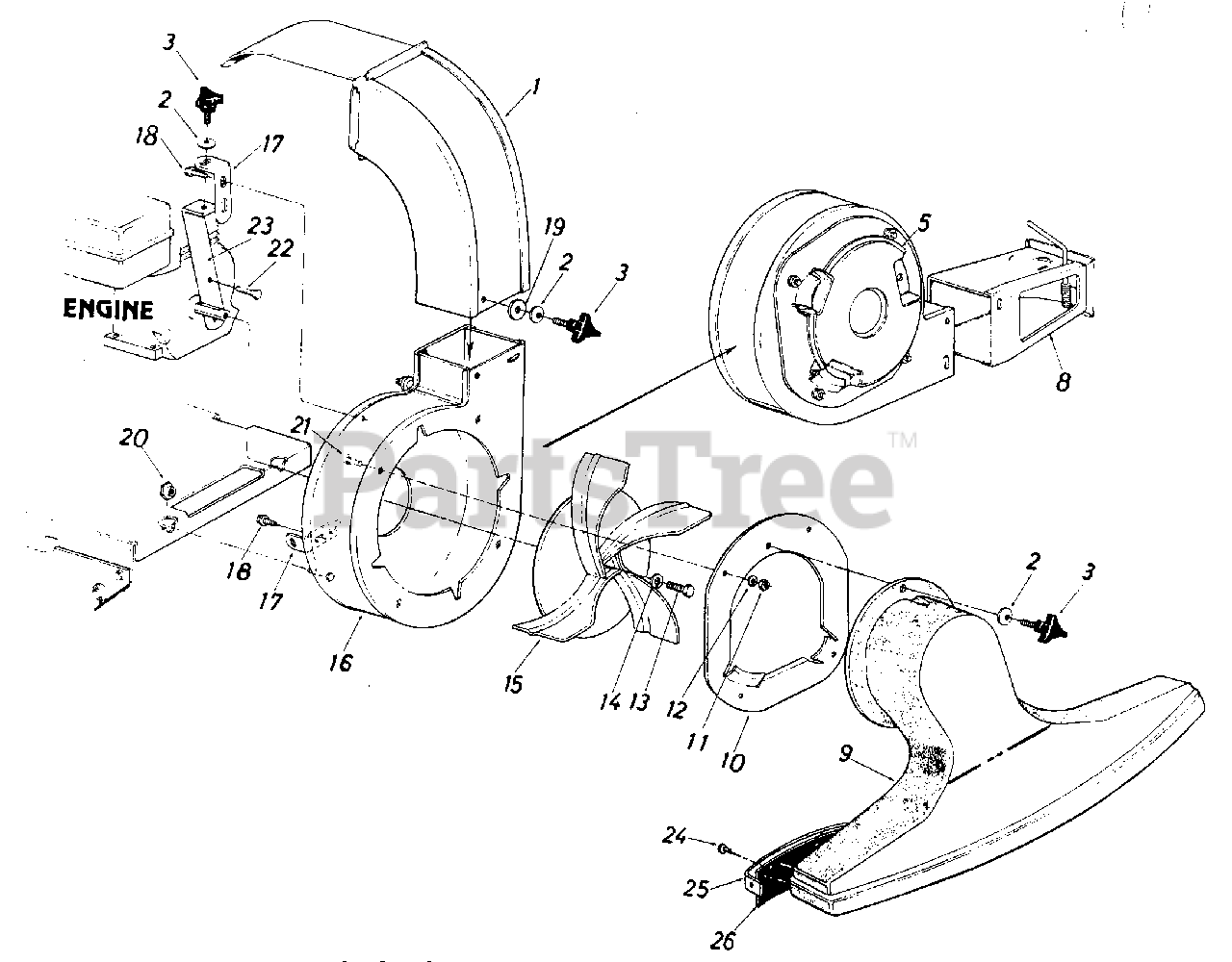

Power Vacuum Part 2 Parts Diagram

  • Title
1

Cub Cadet 14532

DUCT-AIR

Note: Color Code 488

Variations

Cub Cadet 14532-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14532-0637

DUCT-AIR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14532-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14532-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

2

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$3.45

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0170

KNOB-THREE ARM

$9.08

$

In Stock, Qty 16

0

Cub Cadet 749-0501

TOW BAR-HALF

Variations

Cub Cadet 749-0501-0637

TOW BAR-HALF - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 731-0608

GUARD-BLOWER

$

$

Not available

8

Cub Cadet 14479

DISC ASSEMBLY-DIRECT

Variations

Cub Cadet 14479-0483

DISCHARGE ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 14479-0498

DISCHARGE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 14479-0637

DISCHARGE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 14479-0638

DISCHARGE ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 14479-0665

DISCHARGE ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 14479-0691

DISCHARGE ASSEMBLY - BLACK JACK (0691)

$

$

Not available

Cub Cadet 14479-0662

DISCHARGE ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 14479-0709

DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

9

$

$

Not available

10

Cub Cadet 14563

PLATE ASSY-NOZZLE
(Superseded to 14563A)

$

$

Not available

11

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$3.58

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0191

SCREW 3/8-24X1.25 GR5

$3.71

$

In Stock, Qty 11

0

14

Cub Cadet 736-0217

WASHER-HDL 3/8
(Superseded to 936-0217)

$3.52

$

In Stock, Qty 20+

0

15

Cub Cadet 14557

PLATE ASSY-VANE
(Superseded to 14557A-0637)

$

$

Not available

16

Cub Cadet 14496

HOUSING ASSY-BLOWER
(Superseded to 14496B)

Note: Color Code 499

$

$

Not available

17

Cub Cadet 14541

BRACKET-RIGHT ANGLE

Variations

Cub Cadet 14541-0637

BRACKET-RIGHT ANGL - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 710-0600

SCREW-HEX WASH SF TAPP

$2.90

$

In Stock, only 2 left!

0

19

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125
(Superseded to 936-0231)

$

$

Not available

20

Cub Cadet 711-0758

NUT-HEX SHLD
(Superseded to 911-0758)

$9.24

$

Usually ships in 5-10 days

0

21

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 X .62
(Superseded to 710-0260A)

$3.42

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0627

SCREW-CAP LOCK 5/16-24 X .75

$3.39

$

In Stock, Qty 20+

0

23

Cub Cadet 14539

HOUSING-ENG BRACE

Variations

Cub Cadet 14539-0637

HOUSING-ENG BRACE - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 728-0173

RIVET-POP
(Superseded to 928-0173)

$3.34

$

Usually ships in 5-10 days

0

25

Cub Cadet 14569

WIPER RETAIN STRIP

Variations

Cub Cadet 14569-0637

WIPER RETA - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 735-0214

NOZZLE-WIPER

$32.47

$

Usually ships in 5-10 days

0
