685 (246-685-100) - Cub Cadet Walk-Behind Blower (1996) Engine Internal, Oil Fill And Linkage Components Parts Diagram

Walk-Behind Blower

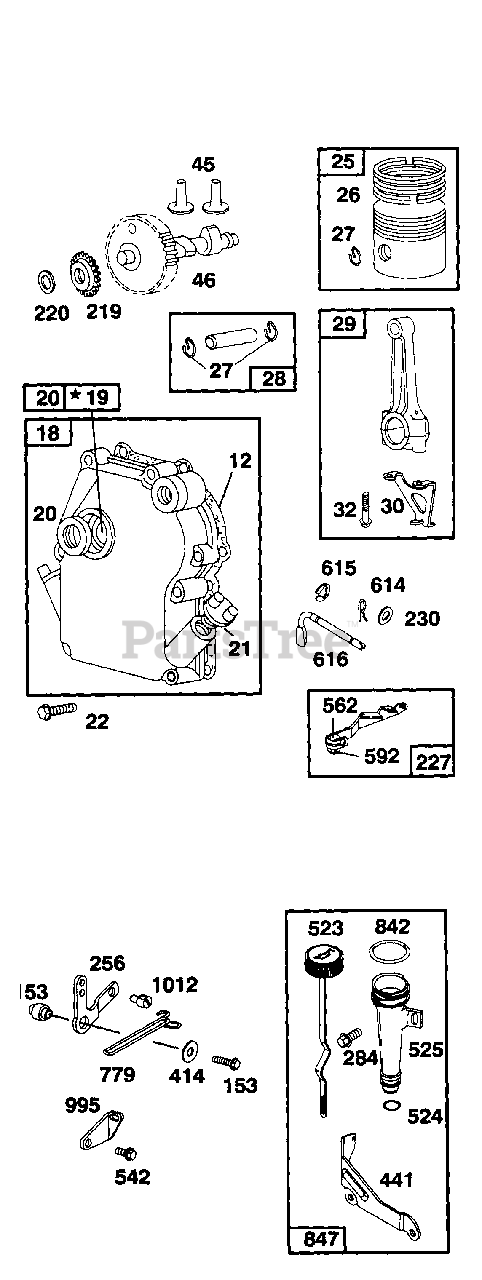

Engine Internal, Oil Fill And Linkage Components Parts Diagram

  • Title

12

Cub Cadet BS-270080

Gasket-Crankcase (.015" Thick, Std.)

Note: Included in Gasket Set - Part No. BS-495603

$

$

Not available

Cub Cadet BS-270125

Gasket-Crankcase (.005" Thick)

Note: Included in Gasket Set - Part No. BS-495603

$10.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270126

Gasket-Crankcase (.009" Thick)

Note: Included in Gasket Set - Part No. BS-495603

$8.99

$

In Stock, only 2 left!

0

18

Cub Cadet BS-493916

Cover Assy.-Crkcse.

$

$

Not available

19

Cub Cadet BS-495660

Bushing

$

$

Not available

20

Cub Cadet BS-495307

Seal-Oil
(Superseded to BS-495307S)

Note: Included in Gasket Set - Part No. BS-495603

$9.49

$

In Stock, only 4 left!

0

21

Cub Cadet BS-66768

Plug-Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet BS-94682

Screw-Cover Mtg.

$

$

Not available

25

Cub Cadet BS-298904

Piston Assembly (Std.)

$

$

Not available

Cub Cadet BS-298905

Piston Assembly (.010" O.S.)

$

$

Not available

Cub Cadet BS-298906

Piston Assembly (.020" O.S.)

$

$

Not available

Cub Cadet BS-298907

Piston Assembly (.030" O.S.)

Note: Note: For Chrome Ring Set (Standard Size) Order No. BS-299742.

$

$

Not available

26

Cub Cadet BS-298982

Ring Set-Piston Std.

$53.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298983

Ring Set-Piston (.010" O.S.)

$

$

Not available

Cub Cadet BS-298984

Ring Set-Piston (.020" O.S.)

$39.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set-Piston (.030" O.S.)

$

$

Not available

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Assy.-Piston (Standard)

$9.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298908

Pin Assy.-Piston (.005" O.S.)

$

$

Not available

29

Cub Cadet BS-299430

Rod Assy.-Connecting

Note: Note: For Conn. Rod With .020" Undersize Crankpin Bore Order No. BS-390459.

$40.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-221890

Dipper-Conn. Rod
(Superseded to BS-691759)

$9.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94745

Screw-Conn. Rod

$

$

Not available

45

Cub Cadet BS-260642

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-212733

Gear-Cam

$

$

Not available

153

Cub Cadet BS-490589

Screw and Collar

$

$

Not available

219

Cub Cadet BS-494845

Gear-Governor

$

$

Not available

220

Cub Cadet BS-221551

Washer-Thrust
(Superseded to BS-691724)

$5.49

$

In Stock, only 2 left!

0

227

Cub Cadet BS-490374

Lever Assy.-Governor

$

$

Not available

230

Cub Cadet BS-94742

Washer-Gov. Lever
(Superseded to BS-691691)

$4.49

$

In Stock, Qty 5

0

256

Cub Cadet BS-223813

Crank-Bell

$

$

Not available

284

Cub Cadet BS-94620

Screw-Hex. Head
(Superseded to BS-691693)

$3.99

$

In Stock, only 2 left!

0

414

Cub Cadet BS-220982

Washer

$

$

Not available

441

Cub Cadet BS-224240

Bracket-Oil Fill

$

$

Currently unavailable

523

Cub Cadet BS-495233

Cap-Oil Fill

$

$

Not available

524

Cub Cadet BS-271485

Ring-Oil Retaining

Note: Included in Gasket Set - Part No. BS-495603

$

$

Not available

525

Cub Cadet BS-280578

Tube-Oil Fill

$

$

Not available

542

Cub Cadet BS-94602

Screw-Self Tap
(Superseded to BS-690664)

$5.49

$

In Stock, Qty 9

0

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex.

$

$

Not available

614

Cub Cadet BS-93306

Pin-Cotter

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$6.49

$

In Stock, Qty 5

0

616

Cub Cadet BS-231077

Crank-Governor

$

$

Currently unavailable

779

Cub Cadet BS-262570

Link & Crank

$

$

Not available

842

Cub Cadet BS-270920

Seal-Cap
(Superseded to BS-691870)

Note: Included in Gasket Set - Part No. BS-495603

$4.49

$

In Stock, Qty 7

0

847

Cub Cadet BS-494417

Tube-Oil

$

$

Not available

995

Cub Cadet BS-223887

Bracket-Control Lever

$

$

Not available

1012

Cub Cadet BS-490507

Retainer-Link

$

$

Not available

Cub Cadet BS-299742

Chrome Ring Set (Standard Size)

$

$

Not available

Cub Cadet BS-390459

Connecting Rod

$

$

Not available

Cub Cadet BS-495603

Gasket Set

Note: Includes items 12, 20, 524 & 842

$34.99

$

In Stock, only 1 left!

0
