6860-00 - Briggs & Stratton Roof Assembly Roof Assembly Parts Diagram

Roof Assembly

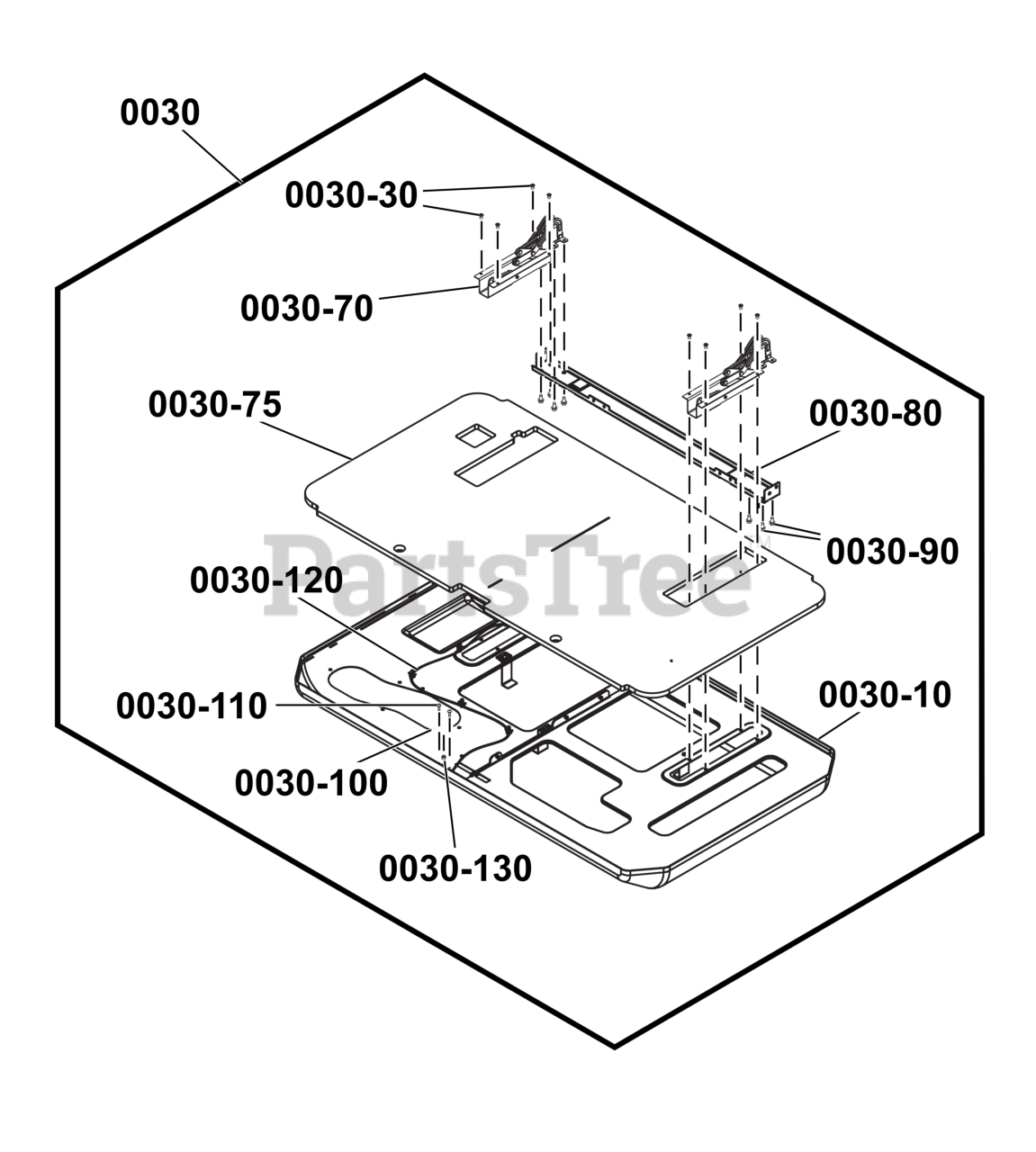

Roof Assembly Parts Diagram

  • Title

0030

Briggs & Stratton 6860

ASSEMBLY, Roof

Note: (Incl. Ref. Nos. 0030-10, 0030-30, 0030-70, 0030-75, 0030-80, 0030-90, 0030-100, 0030-110, 0030-120, 0030-130)

$

$

Not available

0030-10

PANEL, Roof

$

$

Not available

0030-30

RIVET, Blind, 1/8 X 5/16

$

$

Not available

0030-70

HINGE, Roof

$

$

Not available

0030-75

INSULATION

$

$

Not available

0030-80

SUPPORT, Rail

$

$

Not available

0030-90

Briggs & Stratton 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 20+

0

0030-100

PLATE, Mount

$

$

Not available

0030-110

Briggs & Stratton 205947GS

SCREW, Trilobular, #10-32 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0030-120

HARNESS, Wire

$

$

Not available

0030-130

CLIP, Mounting

$

$

Not available
