697740 - Briggs & Stratton Short Block Assembly 697740 Parts Diagram

Short Block Assembly

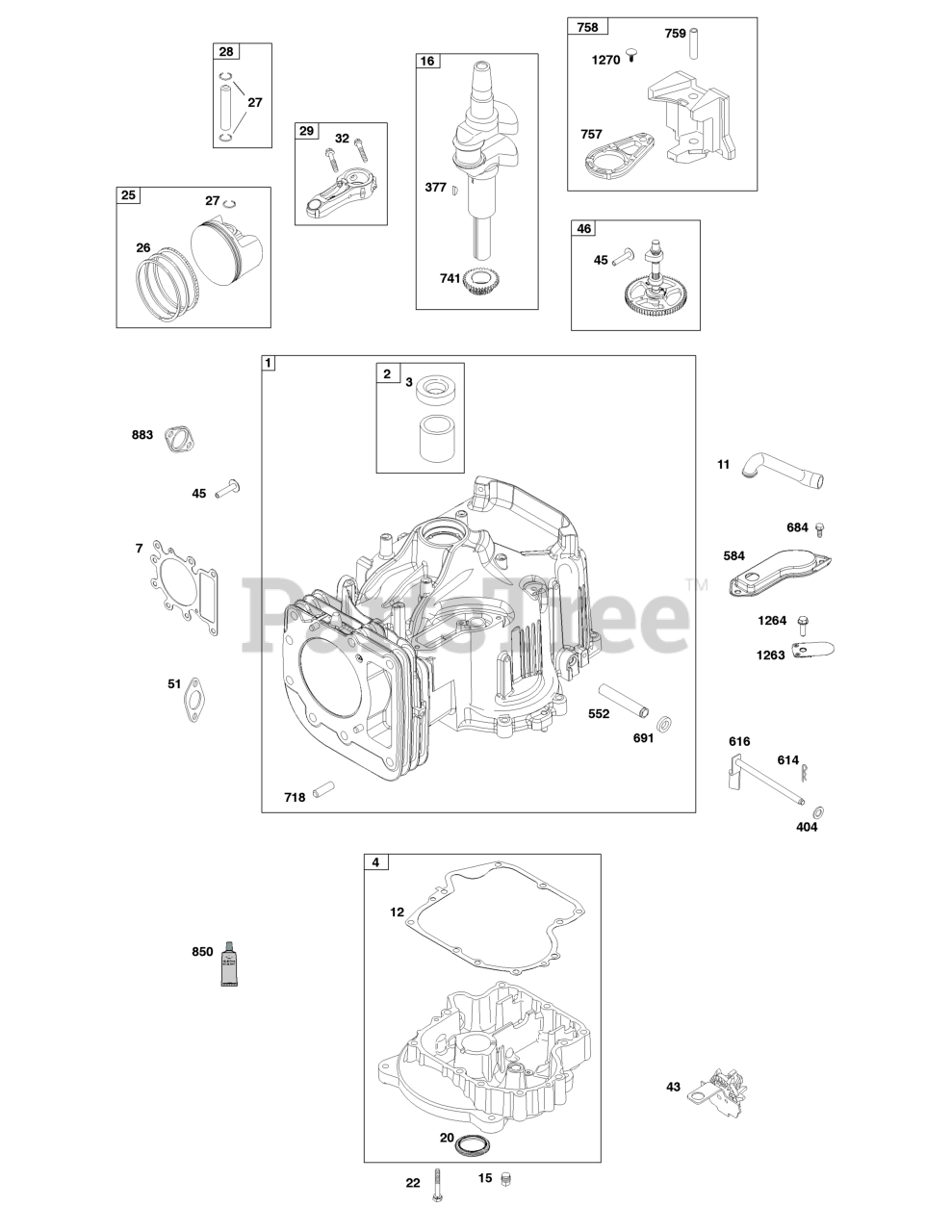

697740 Parts Diagram

  • Title

1

Briggs & Stratton 697377

CYLINDER ASSEMBLY

$518.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 797673

KIT, Bushing/Seal

Note: (Magneto Side)

$19.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 11

0

4

Briggs & Stratton 697106

SUMP, Engine

$339.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 273280S

GASKET, Cylinder Head

$11.99

$

In Stock, Qty 8

0

11

Briggs & Stratton 794683

TUBE, Breather

$8.99

$

In Stock, Qty 12

0

12

Briggs & Stratton 697110

GASKET, Crankcase

$7.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$6.49

$

In Stock, Qty 7

0

16

Briggs & Stratton 697390

Crankshaft

$401.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 3 left!

0

25

Briggs & Stratton 792307

Piston Assembly

$189.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 792728

Piston Assembly

Note: (.020" Oversize)

$306.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 792306

Ring Set
(Superseded to 797011)

$63.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 792643

RING SET

Note: (.020" Oversize)

$277.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 698469

LOCK, Piston Pin

$4.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 697099

Pin-Piston

$15.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 791633

ROD, Connecting

$87.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 791118

SCREW

Note: (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

43

Briggs & Stratton 691968

SLINGER, Governor/Oil

$41.99

$

In Stock, Qty 8

0

45

Briggs & Stratton 690564

TAPPET, Valve

$10.99

$

In Stock, Qty 15

0

46

Briggs & Stratton 597221

CAMSHAFT

$153.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

377

Briggs & Stratton 691639

KEY, Woodruff

$4.99

$

In Stock, only 1 left!

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$4.49

$

In Stock, Qty 5

0

552

Briggs & Stratton 697144

BUSHING, Governor Crank

$9.99

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 794682

COVER, Breather Passage

$10.99

$

In Stock, only 2 left!

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.99

$

In Stock, only 1 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$15.99

$

In Stock, only 1 left!

0

684

Briggs & Stratton 697157

SCREW

Note: (Breather Passage Cover)

$4.49

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$8.49

$

In Stock, Qty 7

0

718

Briggs & Stratton 690959

PIN, Locating

$7.49

$

In Stock, only 2 left!

0

741

Briggs & Stratton 697128

GEAR, Timing

$22.99

$

In Stock, only 1 left!

0

757

Briggs & Stratton 793242

LINK, Counterweight

$22.99

$

In Stock, Qty 10

0

758

Briggs & Stratton 697391

Counterweight

$177.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

PIN, Counterweight

$6.49

$

Usually ships in 2-12 days

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 18

0

1263

Briggs & Stratton 697124

REED, Breather

$8.49

$

In Stock, only 2 left!

0

1264

Briggs & Stratton 697104

SCREW

Note: (Breather Reed)

$4.49

$

Usually ships in 2-12 days

0

1270

Briggs & Stratton 793243

PLUG, AVS Counterweight

$5.49

$

In Stock, only 2 left!

0
