7-1513 - Toro 32" Disc (1975) PARTS LIST-32" DISC HARROW FACTORY ORDER NUMBER 7-1513 (7-1512) Parts Diagram

32" Disc

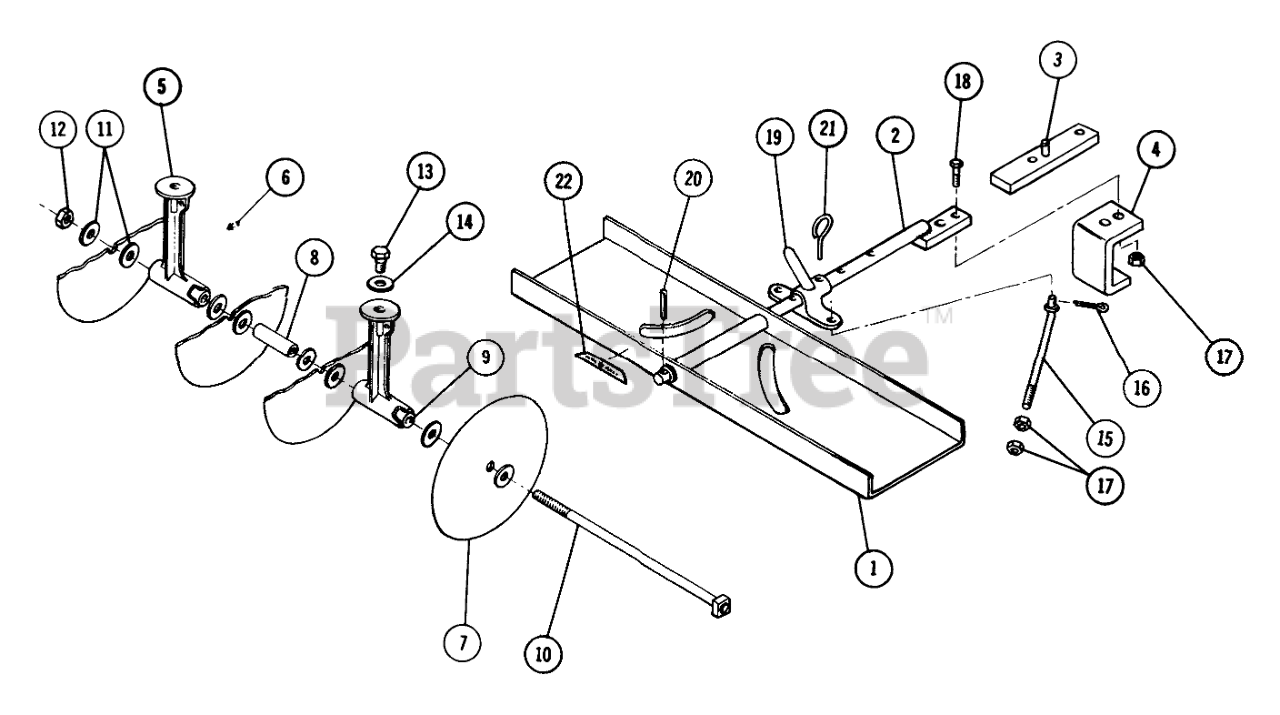

PARTS LIST-32" DISC HARROW FACTORY ORDER NUMBER 7-1513 (7-1512) Parts Diagram

  • Title

1

Toro 2149

Channel

$

$

Currently unavailable

2

Toro 8822

Hitch Bar

$

$

Not available

3

Toro 2160

Pivot Bar

$

$

Not available

4

Toro 8748

Clevis-Disc Hitch

$

$

Not available

5

Toro 2104-C

Gang-Disc

$

$

Currently unavailable

6

Toro 1030

Zerk

$

$

Not available

7

Toro 2108

BLADE DISC

$

$

Not available

8

Toro 2109

Spacer
(Superseded to 742648)

$

$

Not available

9

Toro 2110

Tube

$

$

Not available

10

Toro 6900

Bolt

$

$

Currently unavailable

11

Toro 920044

Washer

$

$

Not available

12

Toro 915610

E.S. Nut 3/4-10

$

$

Not available

13

Toro 2158

Bolt Shoulder 5/8-11

$

$

Currently unavailable

14

Toro 920016

Washer 7/8 SAE

$

$

Not available

15

Toro 2152

Pivot Rod

$

$

Not available

16

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

17

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

18

Toro 908060

H H C S
(Superseded to 325-7)

$1.99

$

In Stock, only 4 left!

0

19

Toro 2151

Blade Adjustment Lever

$

$

Not available

20

Toro 933269

PIN-ROLL 1/4 X 1 1/4

$1.79

$

In Stock, only 2 left!

0

21

Toro 2156

Lever Lock Pin

$

$

Not available

22

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available
