70-8100 - Toro Counterbalance Kit for 62" Groundsmaster 200 Mowers COUNTERBALANCE ASSEMBLY Parts Diagram

Counterbalance Kit for 62" Groundsmaster 200 Mowers

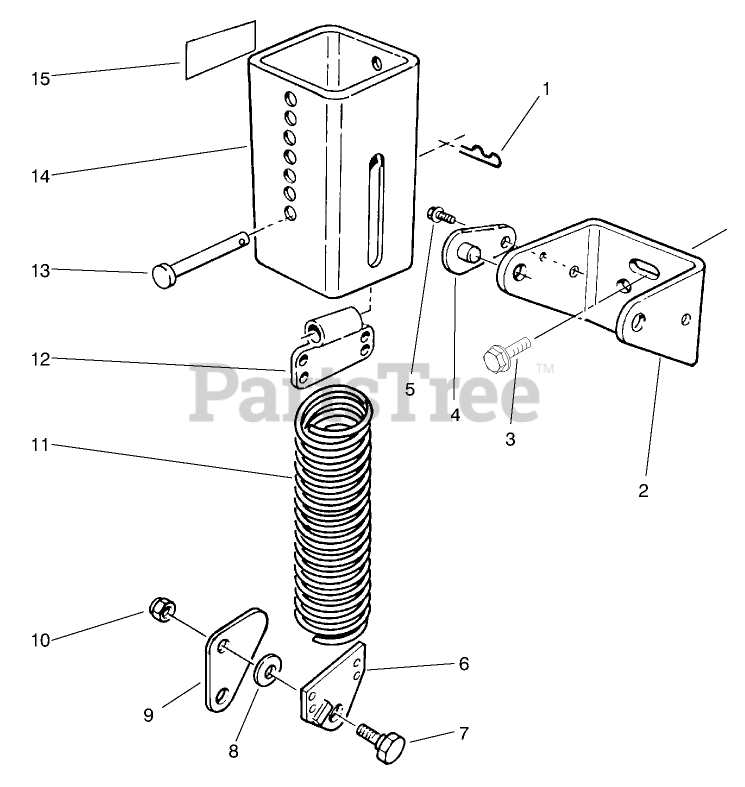

COUNTERBALANCE ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-355

PIN-HAIR

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$2.49

$

In Stock, Qty 20+

0

2

Toro 66-8230

Bracket-Support
(Superseded to 66-8230-01)

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$

$

Not available

3

Toro 3234-11

SCREW-HHF

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$4.49

$

In Stock, Qty 18

0

4

Toro 70-7920

PIN-LOCK

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$27.99

$

Usually ships in 3-6 days

0

5

Toro 12-3270

SCREW

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$3.49

$

In Stock, only 2 left!

0

6

Toro 66-8420

End Spring
(Superseded to 66-8420-03)

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$67.99

$

Usually ships in 3-6 days

0

7

Toro 46-3380

BOLT-SHOULDER

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$11.99

$

Usually ships in 3-6 days

0

8

Toro 3256-24

WASHER-FLAT

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$0.99

$

In Stock, Qty 20+

0

9

Toro 66-8440

Link
(Superseded to 66-8440-01)

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$9.99

$

Usually ships in 3-6 days

0

10

Toro 3296-44

NUT-LOCK, NI

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$3.49

$

Usually ships in 3-6 days

0

11

Toro 66-8390

Spring-Extension
(Superseded to 66-8390-03)

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$45.99

$

Usually ships in 3-6 days

0

Toro 66-8410

Spring-Extension
(Superseded to 66-8410-03)

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$98.99

$

Usually ships in 3-6 days

0

Toro 66-8410

Spring-Extension
(Superseded to 66-8410-03)

Note: Not illustrated

$98.99

$

Usually ships in 3-6 days

0

12

Toro 70-7940

End Spring
(Superseded to 70-7940-03)

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$55.99

$

Usually ships in 3-6 days

0

13

Toro 283-69

PIN-CLEVIS

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$10.99

$

In Stock, only 4 left!

0

14

Toro 70-7970

Asm-Spring Cover
(Superseded to 99-1298)

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$

$

Not available

15

Toro 55-4300

DECAL-WARNING

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$13.99

$

Usually ships in 3-6 days

0

Toro 93-6696

DECAL-WARNING

Note: Note: Light duty spring (66-8410) used on discharge side without 62" Blower Kit Cutting Unit.

$16.99

$

Usually ships in 3-6 days

0

Toro 93-6696

DECAL-WARNING

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0
