70 - Cub Cadet Garden Tractor Transmission Driven Power Take-Off Parts Diagram

Garden Tractor

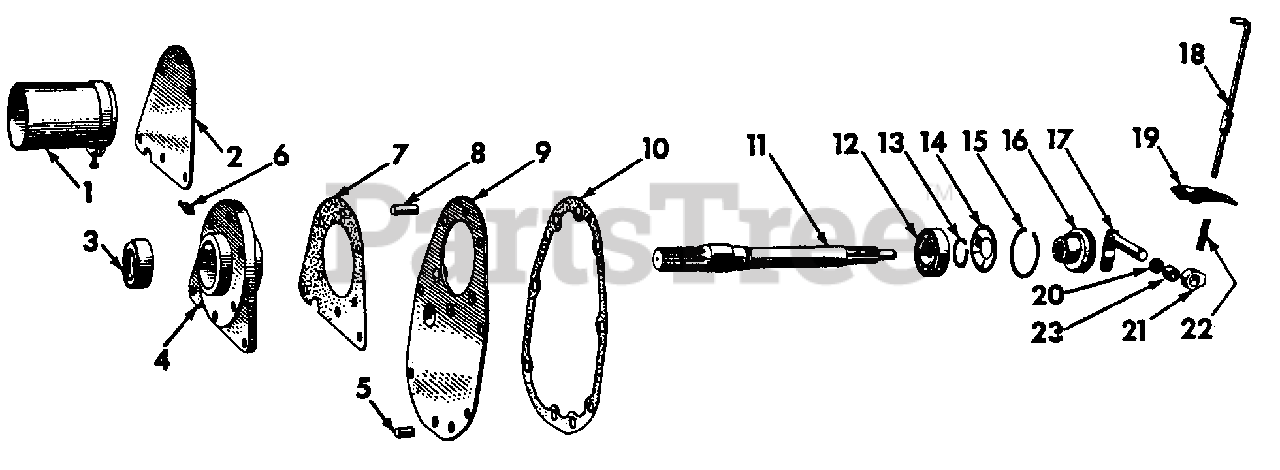

Transmission Driven Power Take-Off Parts Diagram

  • Title

1

Cub Cadet IH-54001-DX

Guard Assy, PTO Shaft

$

$

Currently unavailable

2

~NLA

Cover, Transmission Case Rear Cover Opening

Note: (For use when PTO is removed)

$

$

Not available

Screw, 3/8-16 X 3/4 Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

$

$

Not available

3

Cub Cadet IH-126107-C1

Seal, PTO Shaft Oil
(Superseded to IH-126107-C2)

$

$

Not available

4

Cub Cadet IH-387302-R1

Retainer Assy, PTO Shaft Oil Seal & Brg

$

$

Currently unavailable

Cub Cadet 710-0514

Screw, 3/8-16 X 1 Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

5

~NLA

Pin, Cover Lower Dowel

$

$

Not available

6

Cub Cadet IH-273359

Fitting, 3/16 X 65 Deg Drive Type Lube

$

$

Not available

7

Cub Cadet IH-351258-R2

Gasket, Rear Cover Opening

Note: (For use when PTO is removed)

$

$

Not available

Cub Cadet IH-351258-R2

Gasket, PTO Shaft Oil Seal & Brg Retainer

$

$

Not available

8

Cub Cadet IH-357215-R1

Pin, Cover Upper Dowel

$

$

Currently unavailable

9

Cub Cadet IH-387301-R11

Plate Assy, Transmission Rear Cover

$

$

Currently unavailable

Screw, 3/8-16 X 3/4 Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

$

$

Not available

10

Cub Cadet IH-350837-R2

Gasket, Rear Cover
(Superseded to IH-350837-R3)

$31.99

$

In Stock, Qty 5

0

11

Cub Cadet IH-368433-R91

Shaft, PTO

$

$

Not available

12

Cub Cadet 741-0360

Bearing, PTO Shaft Ball
(Superseded to 941-3037)

$44.99

$

In Stock, Qty 14

0

13

Cub Cadet IH-122791-R1

Ring, PTO Shaft Brg Snap

$

$

Not available

14

Cub Cadet IH-351272-R2

Retainer

$

$

Not available

15

Cub Cadet IH-69696D

Ring, PTO Shaft Brg Snap

$

$

Currently unavailable

16

Cub Cadet IH-351286-R2

Clutch, PTO Shifter

$

$

Not available

Cub Cadet IH-223016

Screw, 1/4-20 X 1/4 Hex Soc Hd Half Dog Pt Set

$

$

Not available

17

~NLA

Lever Assy, PTO Shifter

$

$

Not available

18

Cub Cadet IH-351970-R31

Rod Assy, PTO Shifter

$

$

Not available

Cub Cadet IH-137130

Pin, 1/16 X 7/16 Cot

$

$

Not available

19

~NLA

Guide, PTO Shifter Rod

$

$

Not available

20

Cub Cadet IH-351291-R1

Seal, PTO Shifter Shaft

$

$

Currently unavailable

21

Cub Cadet IH-351968-R1

Bushing, PTO Shifter Lever

$

$

Not available

22

Cub Cadet IH-351969-R1

Spring, PTO Shifter Rod

$

$

Not available

23

Cub Cadet IH-387305-R1

Spacer, PTO Shifter Lever

$

$

Currently unavailable

Cub Cadet IH-387298-11

Shaft w/Bushing, Transmission Input

Note: (Illustrated with transmission)

$

$

Currently unavailable
