70 LP (966043502) - Husqvarna Tow-Behind Broadcast Spreader (2009-02) Parts List Model 70 LP Parts Diagram

Tow-Behind Broadcast Spreader

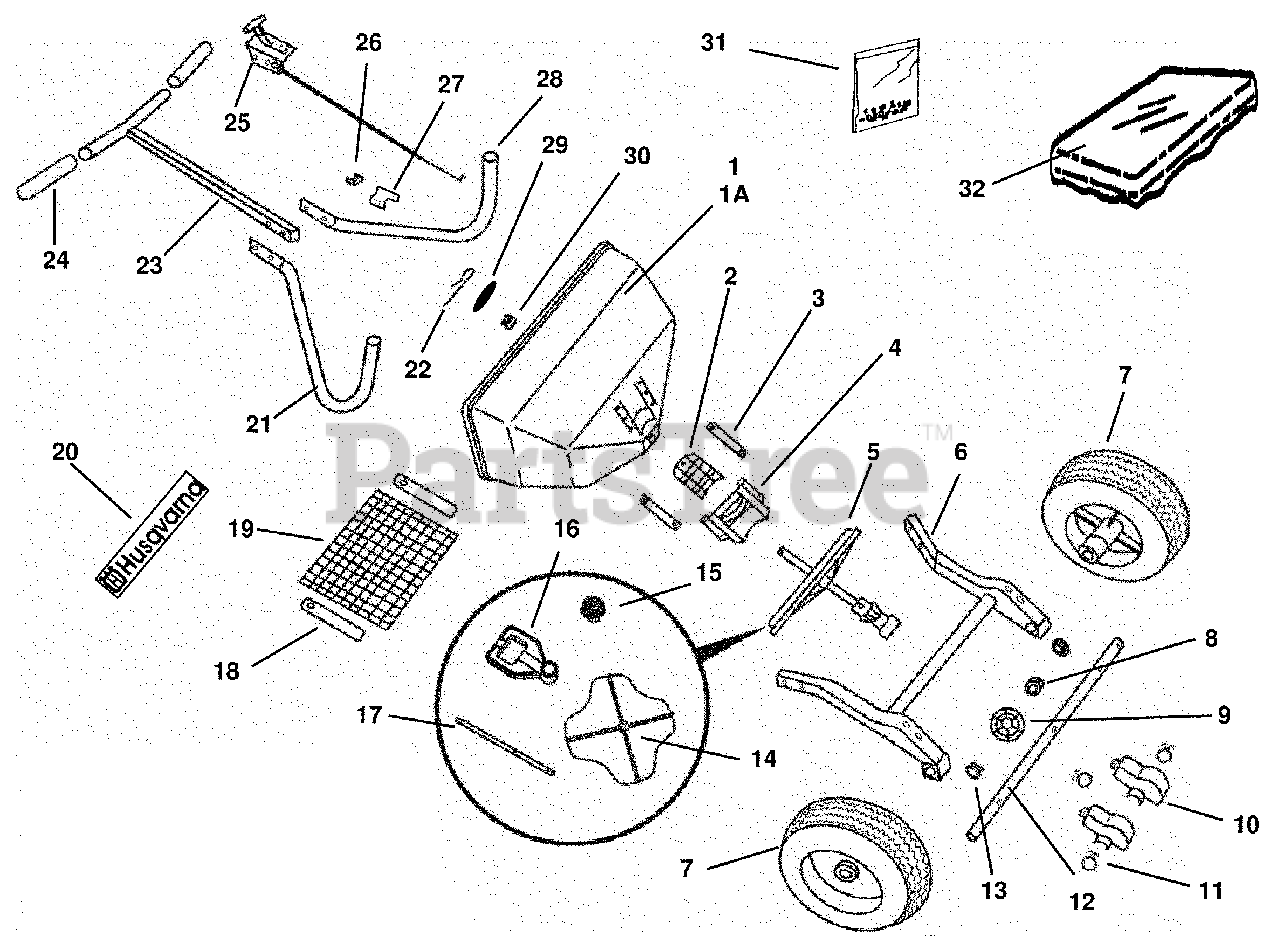

Parts List Model 70 LP Parts Diagram

  • Title

1

525 56 82-06

Hopper Assembly

$

$

Not available

1A

525 56 82-07

Hopper

$

$

Not available

2

525 56 84-03

Shutoff Plate

$

$

Not available

3

525 56 84-04

Shutoff Plate Guides

Note: (Set)

$

$

Not available

4

525 56 83-03

Rate Cam & Chute Assembly

$

$

Not available

5

525 56 87-05

Impeller Assembly

$

$

Not available

6

Husqvarna 525 556 92-02

Frame Assembly

$

$

Currently unavailable

7

525 56 96-02

Drive & Free Turning Wheel

$

$

Not available

8

525 56 86-06

Axle Collar

$

$

Not available

9

525 56 86-05

Axle Gear

$

$

Not available

10

525 56 88-05

Gear Cover Assembly (2 Req.)

$

$

Not available

11

525 56 88-06

Gear Cover Clamp (3 Req.)

$

$

Not available

12

525 56 86-07

Axle

$

$

Not available

13

525 56 86-08

Axle Bushing (2 Req.)

$

$

Not available

14

525 56 87-01

Impeller

$

$

Not available

15

525 56 88-07

Pinion Gear

$

$

Not available

16

525 56 88-08

Gear Support

$

$

Not available

17

525 56 87-06

Impeller Shaft

$

$

Not available

18

525 56 91-02

Screen Clip (2 Req.)

$

$

Not available

19

525 56 82-08

Hopper Screen

$

$

Not available

20

525 56 82-08

Hopper Label

$

$

Not available

21

525 56 85-05

Handle Brace W/ Plug– LH.

$

$

Not available

22

525 57 00-01

Agitator

$

$

Not available

23

525 56 85-07

Upper Handle Assembly

$

$

Not available

24

525 56 85-08

Handle Grip (2 Req.)

$

$

Not available

25

525 56 93-02

On/Off Control

$

$

Not available

26

525 56 90-01

Cable Clamp

$

$

Not available

27

525 56 90-02

Bracket-Cable Clamp

$

$

Not available

28

525 56 85-06

Handle Brace W/ Plug– RH.

$

$

Not available

29

525 56 82-11

Hopper Plug

$

$

Not available

30

525 56 87-07

Impeller Shaft Bearing

$

$

Not available

31

525 56 94-02

Fastener/Parts Package

$

$

Not available

32

525 56 82-09

Hopper Cover

$

$

Not available
