70 PP (966043501) - Husqvarna Tow-Behind Broadcast Spreader (2009-02) Repair Parts Parts Diagram

Tow-Behind Broadcast Spreader

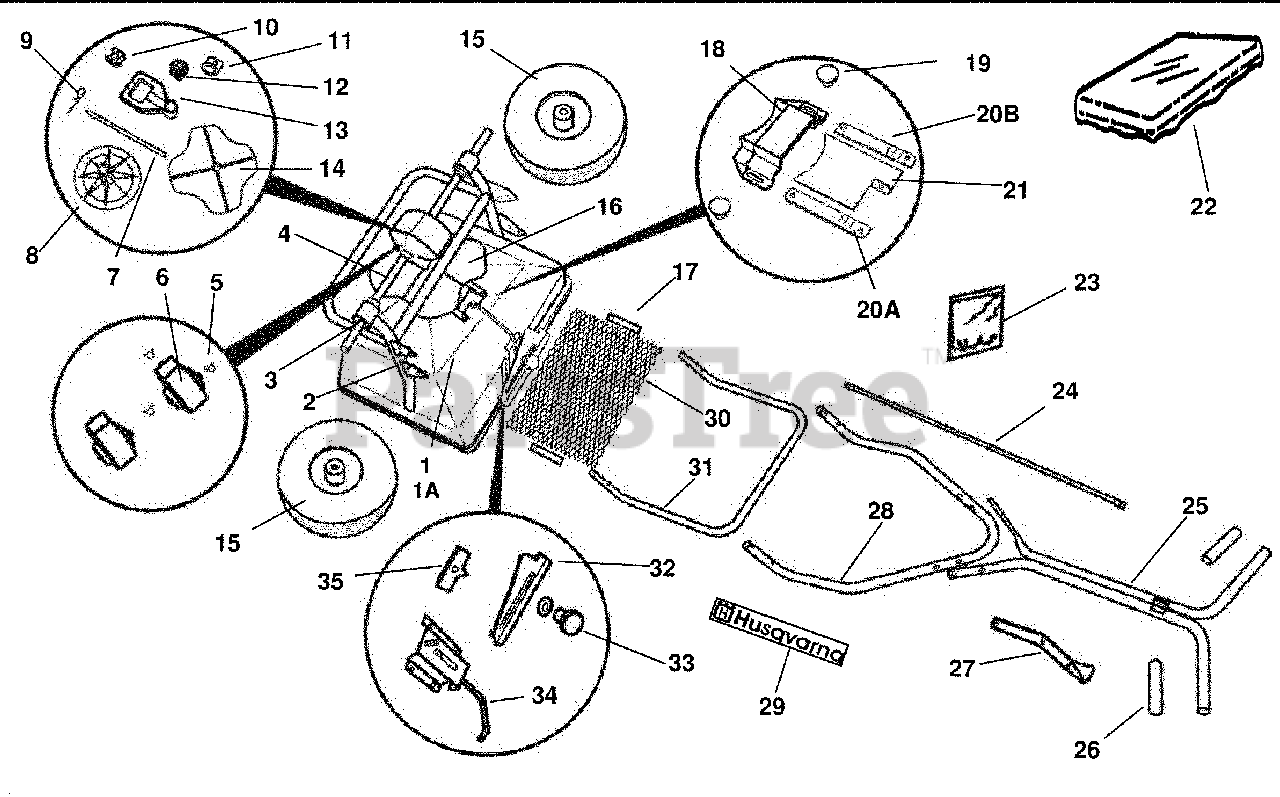

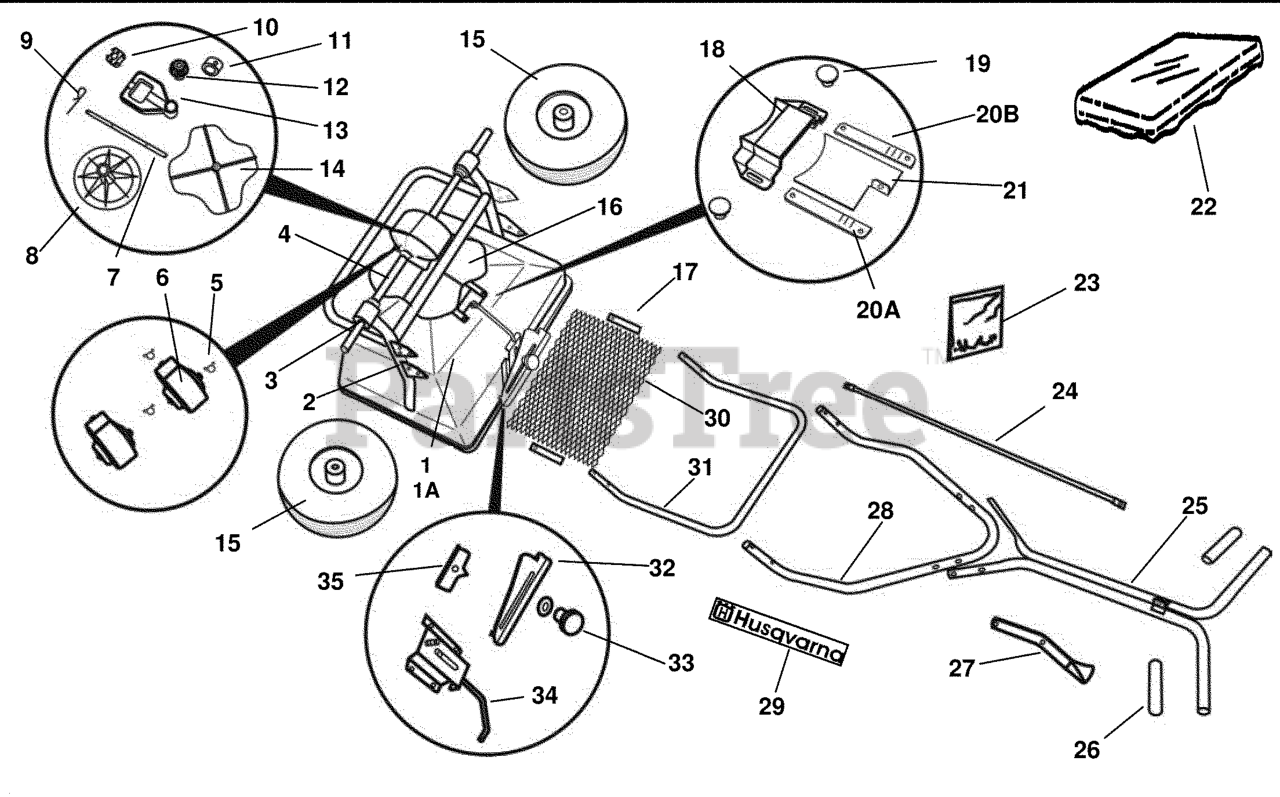

Repair Parts Parts Diagram

  • Title

1

Husqvarna 525568201

HOPPER ASSEMBLY

$

$

Not available

1A

Husqvarna 525568202

HOPPER

Note: Parts included in hopper assembly

$

$

Not available

2

Husqvarna 525569201

FRAME ASSEMBLY

$

$

Not available

3

Husqvarna 525568603

AXLE BEARING

$

$

Not available

4

Husqvarna 525568601

AXLE

$

$

Not available

5

Husqvarna 525568802

GEAR COVER CLAMP

$

$

Not available

6

Husqvarna 525568801

GEAR COVER ASSY

$

$

Not available

7

Husqvarna 525568703

IMPELLER SHAFT

$

$

Not available

8

Husqvarna 525568604

AXLE GEAR W/ COTTER PIN

$

$

Not available

9

Husqvarna 525560002

AGITATOR

$

$

Not available

10

Husqvarna 525568702

IMPELLER SHAFT BEARING ASSY

Note: Parts included in hopper assembly

$

$

Not available

11

Husqvarna 525568602

AXLE COLLAR W/ SET SCREW

$

$

Not available

12

Husqvarna 525568804

PINION GEAR W/ ROLL PIN

$

$

Not available

13

Husqvarna 525568803

GEAR SUPPORT

$

$

Not available

14

Husqvarna 525568704

IMPELLER W/ ROLL PIN

$

$

Not available

15

Husqvarna 525569602

DRIVE & FREE TURNING WHEEL

$

$

Not available

16

Husqvarna 525568708

IMPELLER ASSEMBLY 70PP

$

$

Not available

17

Husqvarna 525569101

SCREEN CLIP

$

$

Not available

18

Husqvarna 525568301

DISCHARGE CHUTE

Note: Parts included in hopper assembly

$

$

Not available

19

Husqvarna 525568302

DISCHARGE CHUTE KNOB

Note: Parts included in hopper assembly

$

$

Not available

20A

Husqvarna 525568305

RIGHT SHUT OFF PLATE GUIDE

Note: Parts included in hopper assembly

$

$

Not available

20B

Husqvarna 525568304

LEFT SHUT OFF PLATE GUIDE

Note: Parts included in hopper assembly

$

$

Not available

21

Husqvarna 525568401

SHUTOFF PLATE

Note: Parts included in hopper assembly

$

$

Not available

22

Husqvarna 525568204

HOPPER COVER

$

$

Not available

23

Husqvarna 525569401

FASTENER PACKAGE

$

$

Not available

24

Husqvarna 525568901

CONTROL TUBE

$

$

Not available

25

Husqvarna 525568503

UPPER HANDLE

$

$

Not available

26

Husqvarna 525568502

HANDLE GRIP

$

$

Not available

27

Husqvarna 525568501

HANDLE LEVER ASS'Y. W/ CHAIN

$

$

Not available

28

Husqvarna 525568504

HANDLE BRACE

$

$

Not available

29

Husqvarna 525568205

HOPPER LABEL

$

$

Not available

30

Husqvarna 525568203

HOPPER SCREEN

$

$

Not available

31

Husqvarna 525569801

LEG

$

$

Not available

32

Husqvarna 525568402

RATE PLATE*

Note: Parts included in hopper assembly

$

$

Not available

33

Husqvarna 525569301

RATE CONTROL KNOB*

Note: Parts included in hopper assembly

$

$

Not available

34

Husqvarna 525569501

SPRING HOUSING ASSEMBLY*

Note: Parts included in hopper assembly

$

$

Not available

35

Husqvarna 525569701

POINTER*

Note: Parts included in hopper assembly

$

$

Not available
